Jaga STRADA User Manual

8
|

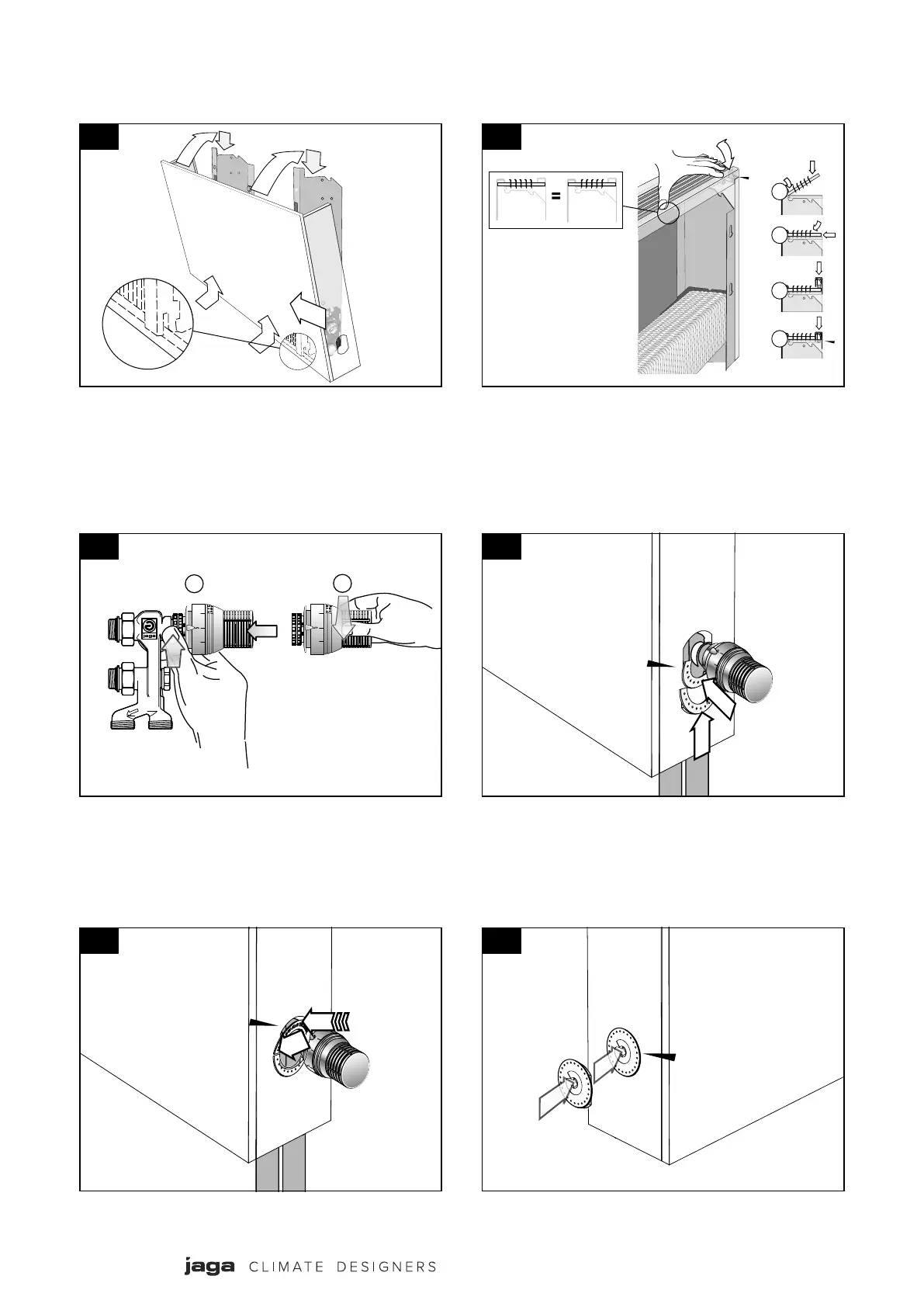

5. FITTING THE CASING
2
M
A
X
1
03
Fit the TRV head, ensuring that it is first turned to its maximum
setting. Please follow the TRV head installation instructions for
further information.
1
2
CLICK
04
Insert the first half moon decorative clip.
Locate the grille into front panel, lower down into position
and fix back bar.
CLICK
1
2
3
4
CLICK
02
Hook casing onto bottom of bracket. Lift casing up and over
towards back. Line up cut out with valve. Push casing down onto
brackets to secure.
2
4
4
1
1
2
3
01
2
4
4
1
1
2
3
CLICK
06
Use blanking plate on opposite side.
CLICK
1
2
05
Insert the second half moon decorative clip.

Jaga STRADA Specifications

General

Material	Steel
Operating Pressure	10 bar
Installation	Wall-mounted
Control	Thermostatic
Finish	Powder coated
Connections	1/2"
Mounting	Brackets included
