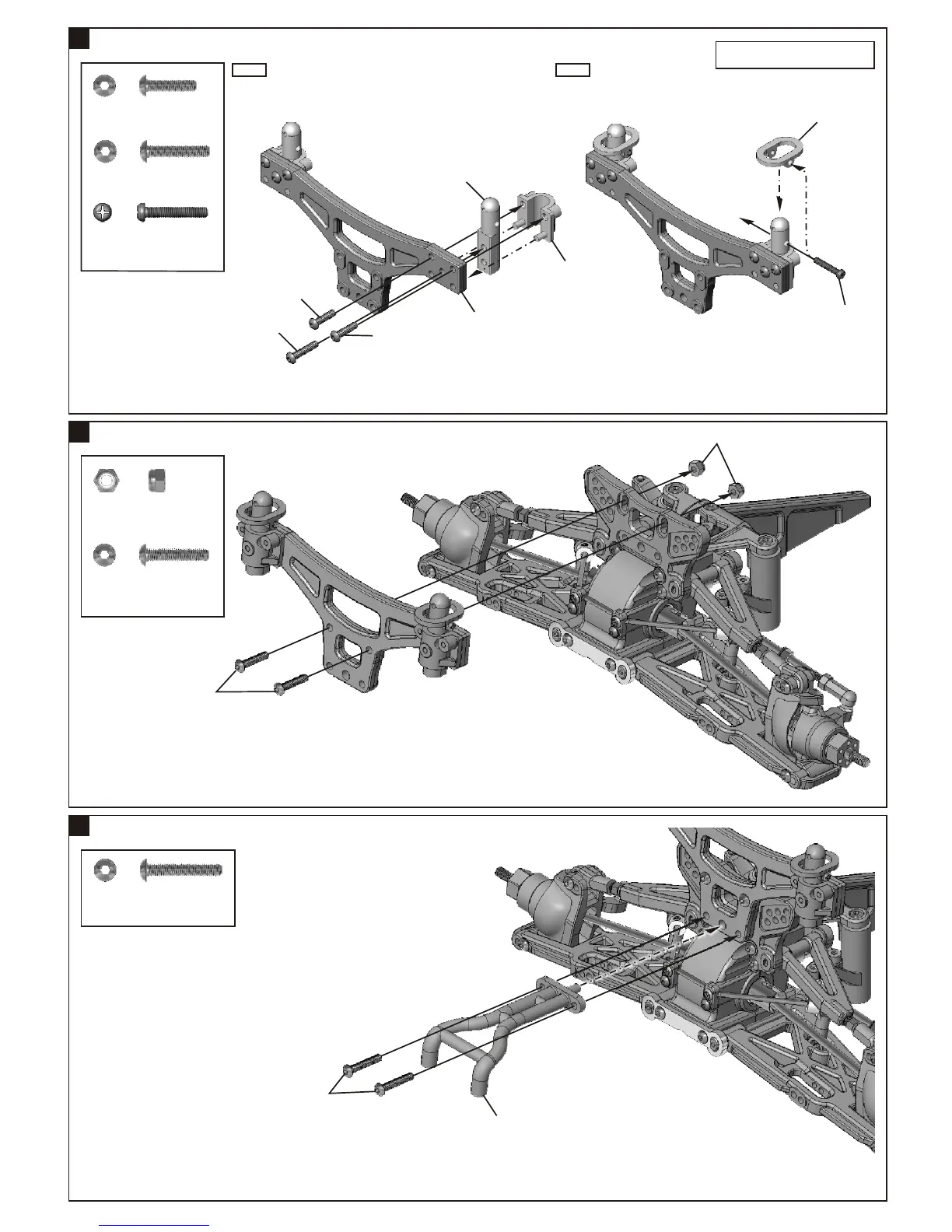

ASSEMBLY OF THE FRONT BODY POST

ASSEMBLY OF THE FRONT BODY STAY ONTO FRONT GEAR CASE

ASSEMBLY OF THE FRONT BUMPER

Step 1

6

94005

3x15mm

Hex Screw

.....x2

94006

3x18mm

Hex Screw

.....x2

Step 2

3x12mm

3x12mm

3x15mm

2.6x15mm

40947

40947

40947

40947

3x18mm

94041

3mm

Nylon Nut

.....x2

3x15mm

3mm

40943

94004

3x12mm

Hex Screw

.....x4

94005

3x15mm

Hex Screw

.....x2

94054

2.6x15mm

Screw

.....x2

Assemble both right and left sides.
