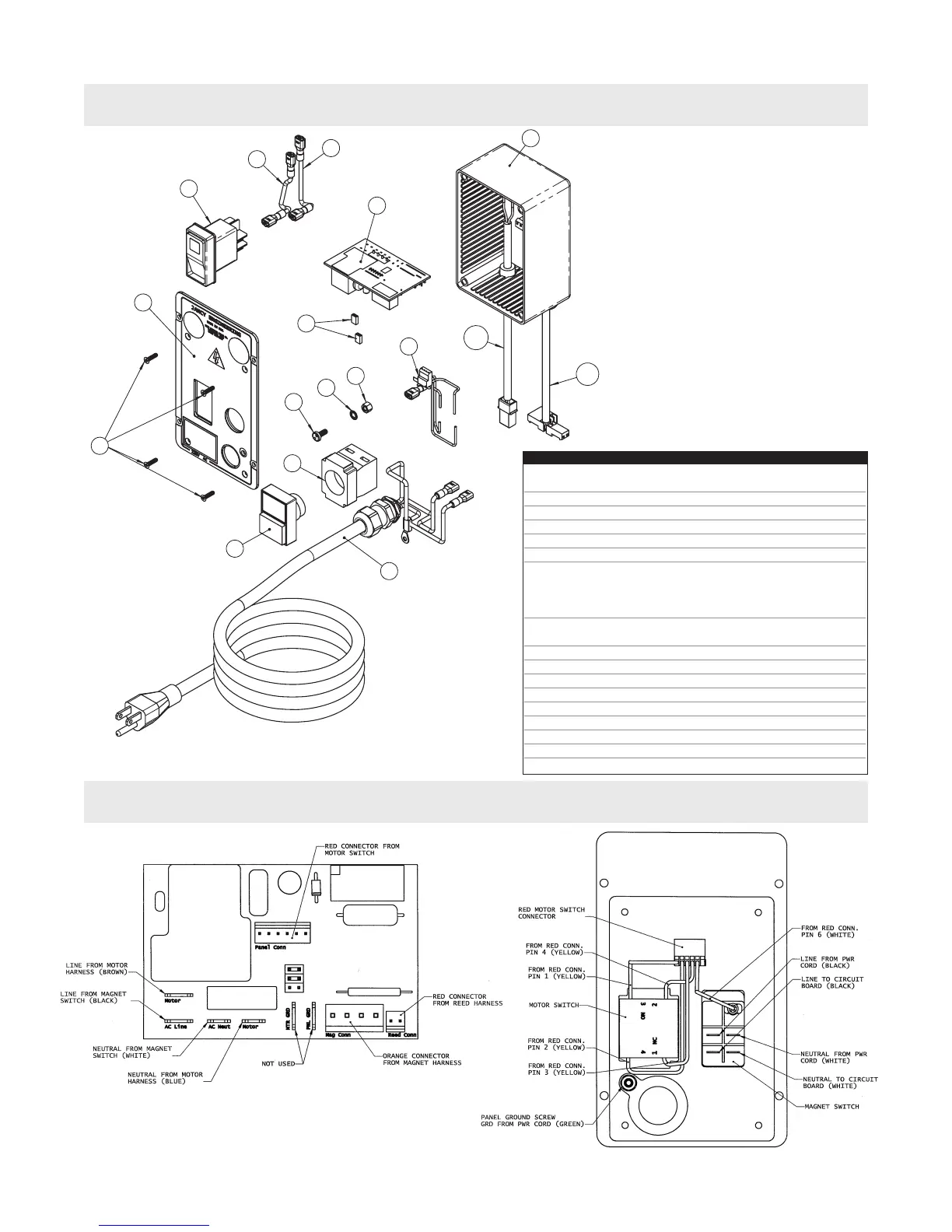

Jancy Engineering Slugger USA5 - Control Panel and Parts List; Panel Wiring Diagram

control panel and parts list
11
item description part # qty
1 POWER CORD ASSEMBLY, 120V 0151550 1
POWER CORD ASSEMBLY, 220V 0151551
2 MOTOR ON/OFF SWITCH 0151035A 1
3 M4 NUT UH4604 1
4 M4 LOCK WASHER UH2046 1
5 M4 X 10 DSPHMS UH0418 1
6 M3 X 12 CRFHMS UH0316 4
7 CONTROL PANEL PLATE 0151057J 1
CONTROL PANEL OVERLAY, 120V 0151061 1
PANEL GASKET 0151227 1
CONTROL PANEL OVERLAY, 220V 0151062 1
8 MAGNET SWITCH, 120V 0151045 1
MAGNET SWITCH, 220V 0101044
9 WIRE LINE ASSEMBLY 0151552 1
10 NEUTRAL WIRE LINE ASSEMBLY 0151054 1
11 PC BOARD, 120V, 220V 04868 1
12 PANEL ENCLOSURE ASSEMBLY 0151051 1
12A MOTOR HARNESS 0151564 1
12B RS MAGNET HARNESS 0151563 1
13 SHUNT UH5335 2
14 CONTACT BLOCK SWITCH 0151033A 1
15 MOTOR SWITCH HARNESS 0151558 1
12B
10
11
12
15
13
12A
14
9
8
7
6
2
1
5
4
3
panel wiring diagram
