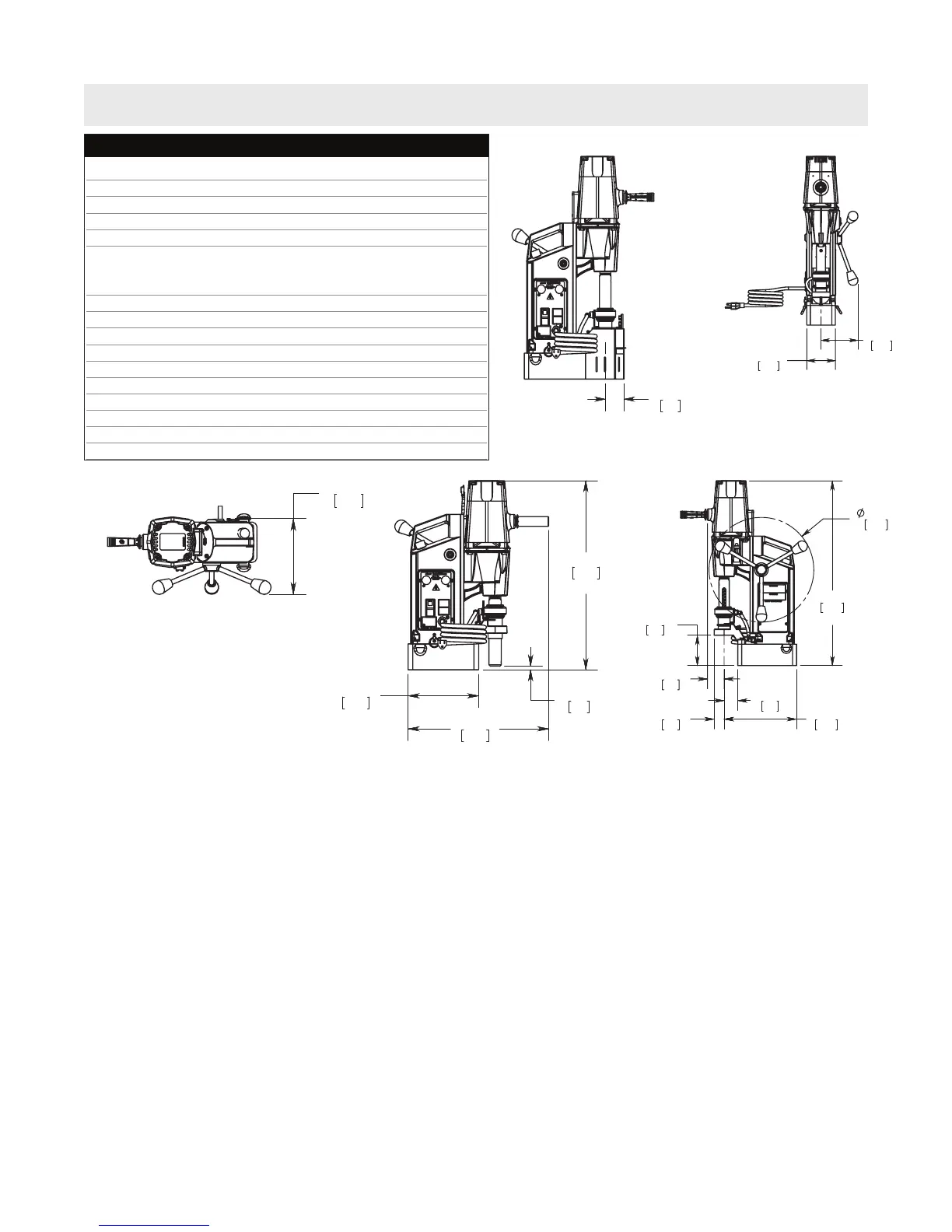

dimensions and specifications
DIMENSIONS AND SPECIFICATIONS
Max Height 23-5/8" (600mm)
Min Height 20”(508mm)
Width 7-1/2" (191mm)
Length 11-9/16" (294mm)
Weight 51 lbs. (23Kg)
Motor 1.8HP 1400W (single phase)
120V /11.7A~220V /5.8A
310/610 RPM (no load) -180/340 RPM (load)
Arbor bore 3/4" (19.05mm)
Drill point breakaway 950 lbs. on (
1" plate 431Kgon25mm plate)
Magnet base dimensions 4" x7-1/2"(102mmx191mm)
Magnet dead lift 2320 lbs. on 1" plate (1053Kgon25mm plate)
Slugger cutter diameter (maximum) 2-3/8" (60mm)
Slugger depth of cut (maximum) 3" (76mm)
Spindle CL to Guard Face 2-1/8" (54mm)
Spindle CL to Magnet Face 1-3/4"(44mm)
Spindle CL to Motor Face 2-1/8" (54mm)
Total travel 3-5/8" (92mm)
7-1/2"
191
1-3/4"
44
1-1/4"
32
9-7/16"
240
2-1/8"
54
13-3/8"
340
23-5/8"
(UP)
600
3-7/8"
98
5-1/8"
130
4"
102
2-1/8"
54
15"
381
7-1/2"
191
3/8"
10
20"
(DOWN)
508
