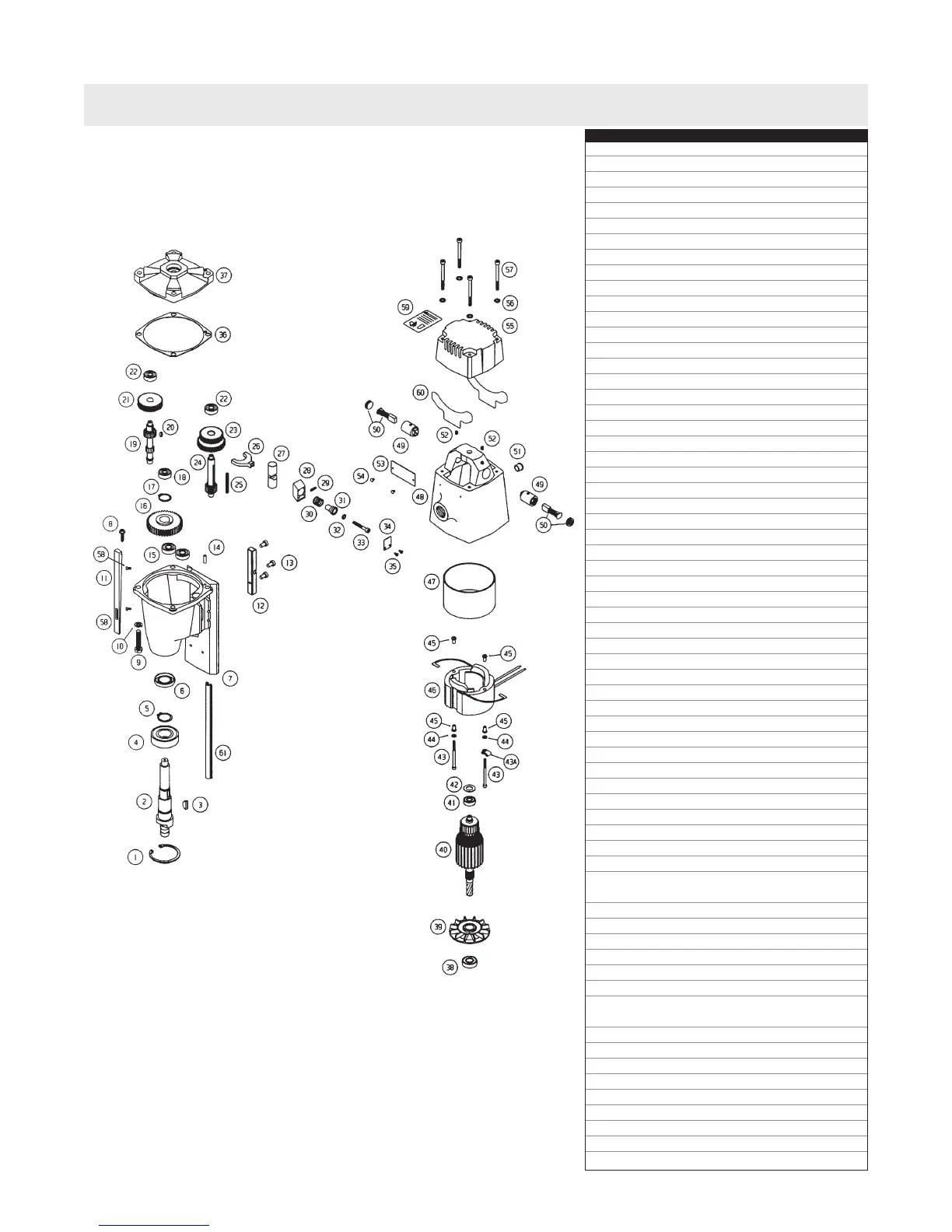

motor breakdown and parts list
item description part # qty
1 INTERNAL RETAINING RING UH4152 1
2 MOTOR SPINDLE 04522 1
3 WOODRUFF KEY 0010142 1
4 BALL BEARING UH3057 1
5 EXTERNAL RETAINING RING UH4025 1
6 SPINDLE SEAL 04594 1
7 LOWER GEARBOX 04530S 1
8 M6 X 25 SHFCS UH0652 1
9 M8 X 40 HHCS UH0818 4
10 M8 LOCK WASHER UH2083 4
11 SLIDE BAR WEDGE 04511N 1
12 GEAR RACK U68002 1
13 M6 X 10 LHSCS UH0606 3
14 3/16" X 5/8" DOWEL PIN UH4311 1
15 BALL BEARING UH3035 2
16 OUTPUT GEAR 04581 1
17 EXTERNAL RETAINING RING UH4019 1
18 BALL BEARING UH3024 1
19 PINION GEARSHAFT 04520 1
20 WOODRUFF KEY 04564 1
21 HELICAL INPUT GEAR 04582 1
22 BALL BEARING UH3024 2
23 CLUSTER GEAR 04580 1
24 OUTPUT PINION GEAR SHAFT 04521 1
25 KEY 04565 1
26 SHIFTING FORK 04510 1
27 MAIN SPEED SELECTOR PIN 04523 1
28 SPEED SELECTOR LEVER 04534 1
29 ROLL PIN UH4205 1
30 SPEED SELECTOR SPRING 04591 1
31 SPEED SELECTOR PIN 04524 1
32 M5 LOCK WASHER UH2056 1
33 M5 X 35 SHCS UH0558 1
34 SHIFT LEVER LABEL 04514 1
35 M3 X 5 CRPHMS UH0300 2
36 GEARBOX GASKET 04593 1
37 GEARBOX COVER 04531 1
38 BALL BEARING UH3039 1
39 ARMATURE FAN 04590 1
40 ARMATURE, 120V 04553 1
ARMATURE, 220V 04554
41 BALL BEARING UH3021 1
42 UPPER ARMATURE SPRING WASHER 04560 1
43 M4 X 60 SHCS UH0438 2
43A CABLE CLAMP 04585 1
44 M4 LOCK WASHER UH2046 2
45 FIELD SCREW INSULATOR 04557 4
46 FIELD, 120V 04555 1
FIELD, 220V 04556
47 FIELD SLEEVE INSULATOR 04558 1
48 MOTOR HOUSING 04532 1
49 BRUSH HOLDER 04551 2
50 2 MOTOR BRUSHES WITH CAPS 04550 1
51 MOTOR SNAP BUSHING 04559 1
52 M5 X 5 CPSSS UH0500 2
53 MOTOR TAG, 120V 04512 1
MOTOR TAG, 220V 04513
54 DRIVE SCREW UH1002 2
55 END CAP 04533 1
56 M5 LOCK WASHER UH2056 4
57 M5 X 60 SHCS UH0562 4
58 M3 X 6 SHCS UH0302 2
59 DANGER LABEL 0080027 1
60 BRUSH LEAD INSULATOR 04578 2
61 CORD CHANNEL 0151453 1
- 14 OZ. GREASE 04587 1
usa5 motor assembly
04600r - 120 Volt
04602r - 220 Volt
