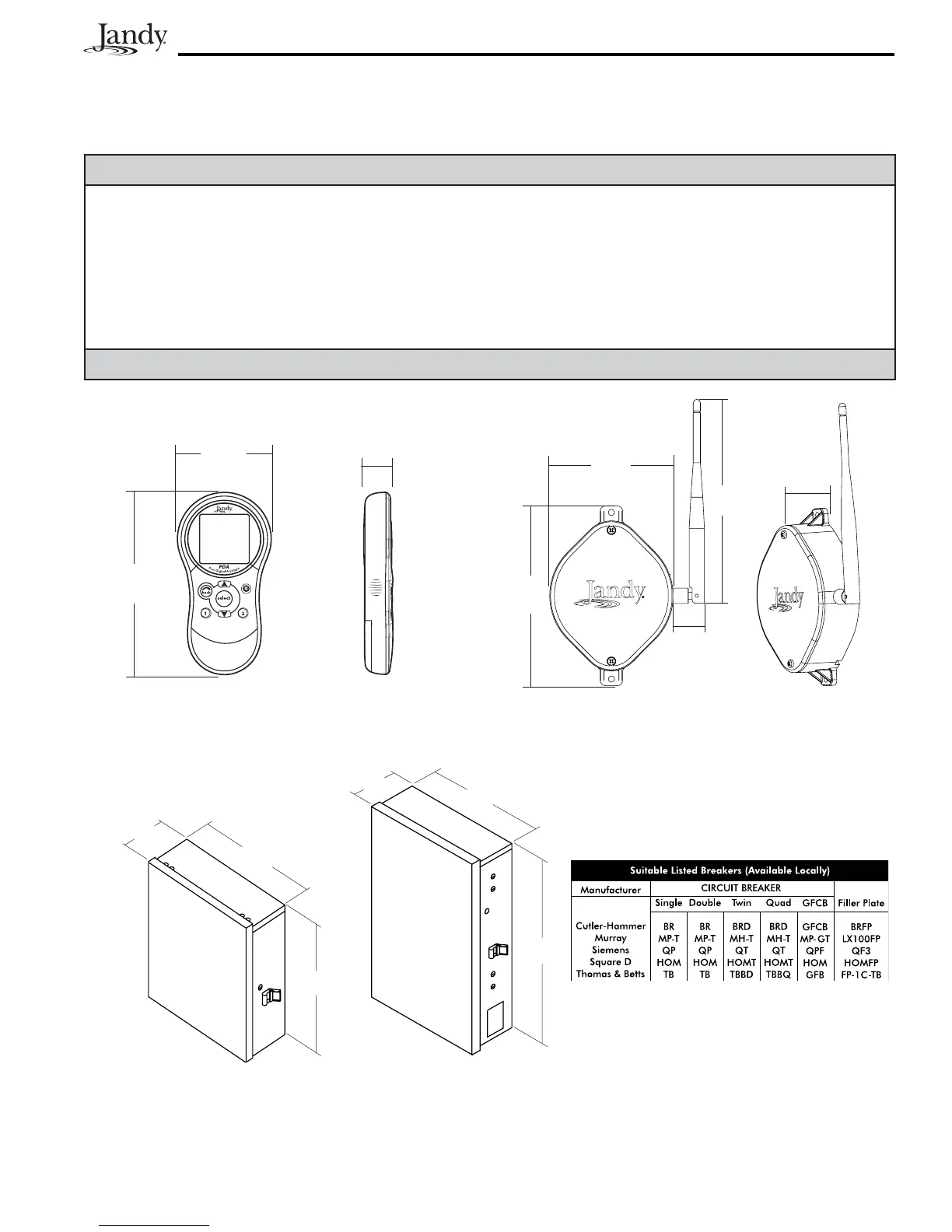

2.2 System Component Specifi cations and Dimensions
Table 1
Specifications (USA and Canada)
Power Supply 120 VAC; 60 Hz; 3 A
Contact Rating (Relays) High voltage - 25 A; 3HP @ 240 VAC
1½ HP @120 VAC
1500 Watts Incandescent
Low Voltage - Class Two, 1 A @ 24 VAC
Service Switch All Circuits (located at Power Center in Service Mode)
Dimensions
Standard Power Cen ter
5"
14½"
13¾"
Sub-Panel Power Cen ter
20"
14½"
5"
Note Breakers for Sub-Panel Power Center
only.
PDA Handheld Remote
Front View
3½"
6¾"
7
/
8
"
Side View
J-Box Transceiver
1
1
/
16
"
Side View (at Angle)
4"
6"
1"
7"
Front View

Jandy and P8 Specifications
