Jandy AquaLink RS Conversion Kit User Manual

Page 12

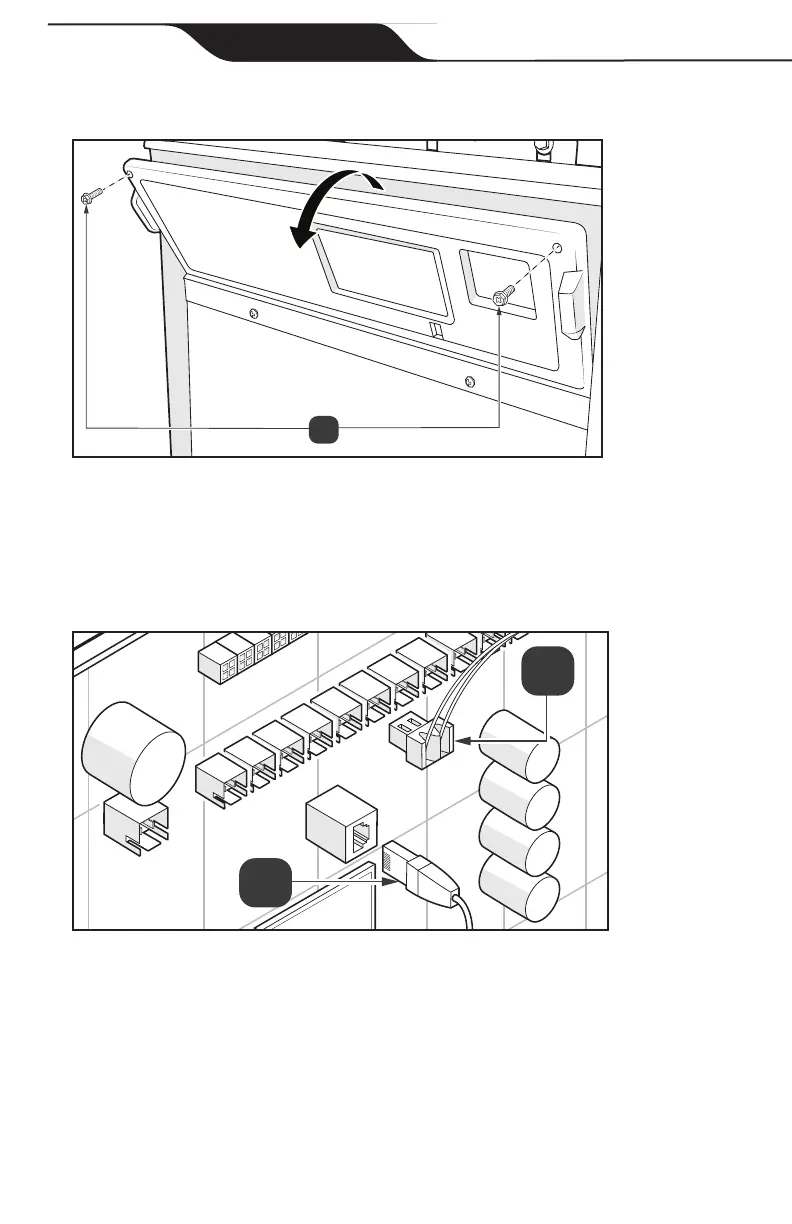

5. Remove the top two screws on Pentair control panel, swing panel down to
allow access to wiring behind it, see Figure 3(a).
a
Figure 3. Remove Pentair Control Panel Screws
6. Disconnect power connection from the transformer.
7. Unplug valve actuator’s, mark them intake and return.
8. Disconnect the Ethernet cable, see Figure 4(a).
9. Unplug the auxiliary relays, see Figure 4(b).
a
b
Figure 4. Unplug Auxiliary Relays
10. Unplug RS-232, including saltboard if one exists. If salt removed, replace
screws to maintain water tightness.
11. Unplug spa controller (if installed).
12. Disconnect all temperature sensors.
13. Remove 2 inner retaining screws from transformer assembly, see Figure
5(a).
