Section 4. Remove the Pentair

Control Panel

Before beginning the installation, verify the location has adequate WiFi coverage or

a wired Ethernet connection to the home router. The AquaLink RS Conversion Kit

uses a connection to the Internet. If Internet access is questionable or not functional,

it is advised to not proceed with the Pentair control panel removal and changes until a

access is ensured.

NOTE Use of this AquaLink

RS Conversion Kit with Pentair

integrated Saltwater systems is not recommended. Refer to the

compatibility section 3 of this manual before proceeding.

TIP: For faster AquaLink

RS set up and programming, use tape and a marker to tag each

relay and valve connector, as you remove it, with the relay number, name, and function.

WARNING

Risk of electric shock which can result in serious injury or

death: Before attempting to install or service, ensure that all power to

the circuit supplying power to the system is disconnected or turned o󰀨

at the circuit breaker. All wiring must be done in accordance with the

National Electrical Code

(NEC)

, NFPA-7

In Canada, the Canadian Electrical Code (CEC), CSA C22.1, must be followed. All

applicable local installation codes and regulations must be followed.

4.1 Transformer located in control panel compartment

1. Turn o󰀨 power at the breaker panel.

2. Remove 2 retaining screws on top of the High Voltage cover panel,

see Figure 2(a).

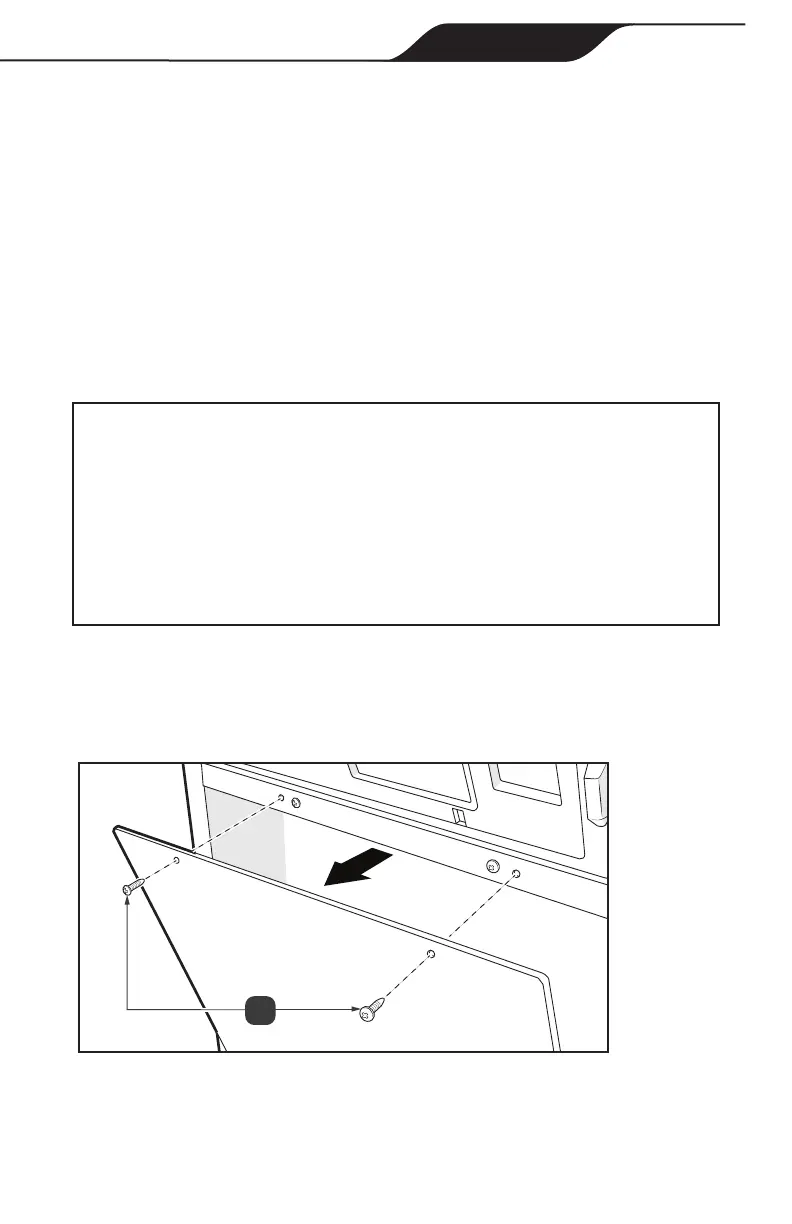

Figure 2. Remove Dead Front Screws

3. Remove the High Voltage cover panel from enclosure.

4. Remove power to transformer from either the relay or resettable fuses.
