Jandy SFTM Series - Page 7

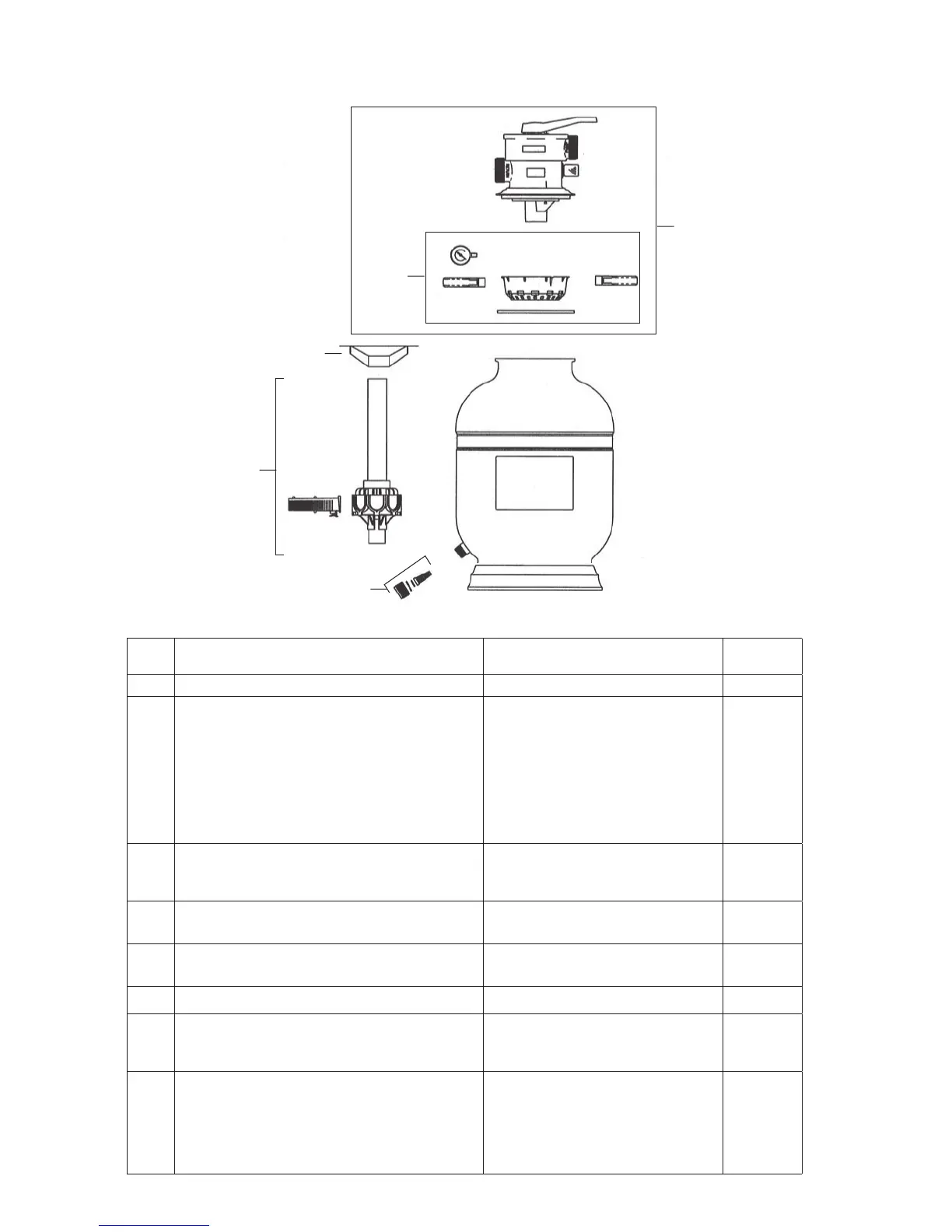

FIGURE 7 - Parts for Models SFTM22 and SFTM25
1
2
6
4,5
3
7
Key
No
Description Extended Description Part No.
1 Complete Multiport Valve w/ Clamp Assembly SFTM-MPV
2 Rebuild Kit for SFTM22, SFTM25 and SFTM-MPV Rotor w/ Spider Gasket
Valve Handle w/ Retainer Pin
Rotor Shaft O-ring, Spring & Washers
MPV Top O-ring
MPV Top Hardware (6 bolts w/ nuts)
Tank O-Ring
Defl ector Basket w/Screws
V-Band Plastic Clamp w/Bolts
Pressure Gauge 0-60 PSI
R0492000
3 Drain Nozzle Assembly Drain Nozzle
Drain Nozzle Retainer
Drain Cap w/Gasket
R0492100
4 SFTM22 Lateral and Standpipe Assembly 22” Lateral Kit Snap Fit (8 per bag)
22” Standpipe assembly
R0492200
5 SFTM25 Lateral and Standpipe Assembly 25” Lateral Kit Snap Fit (8 per bag)
25” Standpipe assembly
R0492300
6 Sand defl ector (cover) R0492700
Complete 1.5” unions w/adapter kit 2 Complete Threaded Unions
3 Barbed Adapters
2 Hose Clamps
R0492600
SFTM Accessory Bag Kit Complete Threaded Unions
Barbed Adapters
Hose Clamps
Reducer Bushing
Pressure Gauge
Flex Pipe
R0501300
