Page 10
ENGLISH
TruFit Bubbler | Owner’s Manual
2.3 Plumbing Multiple TruFit
TM
Bubblers
When installing multiple bubblers it is advised that a looped manifold
system be implemented to provide independent water flow control to each
of the bubblers on the system. See Figure 1.
1. Plumb an adjustable ball or gate valve to supply ow to the manifold
assembly.
2. If necessary install reducer bushings to bring the supply lines to each
bubbler down to the required 1.5” supply size.
3. Plumb an adjustable ball or gate valve on each branch of the manifold.
4. Use the individual ball valves to adjust the plume height on each of the
bubblers to your preference.

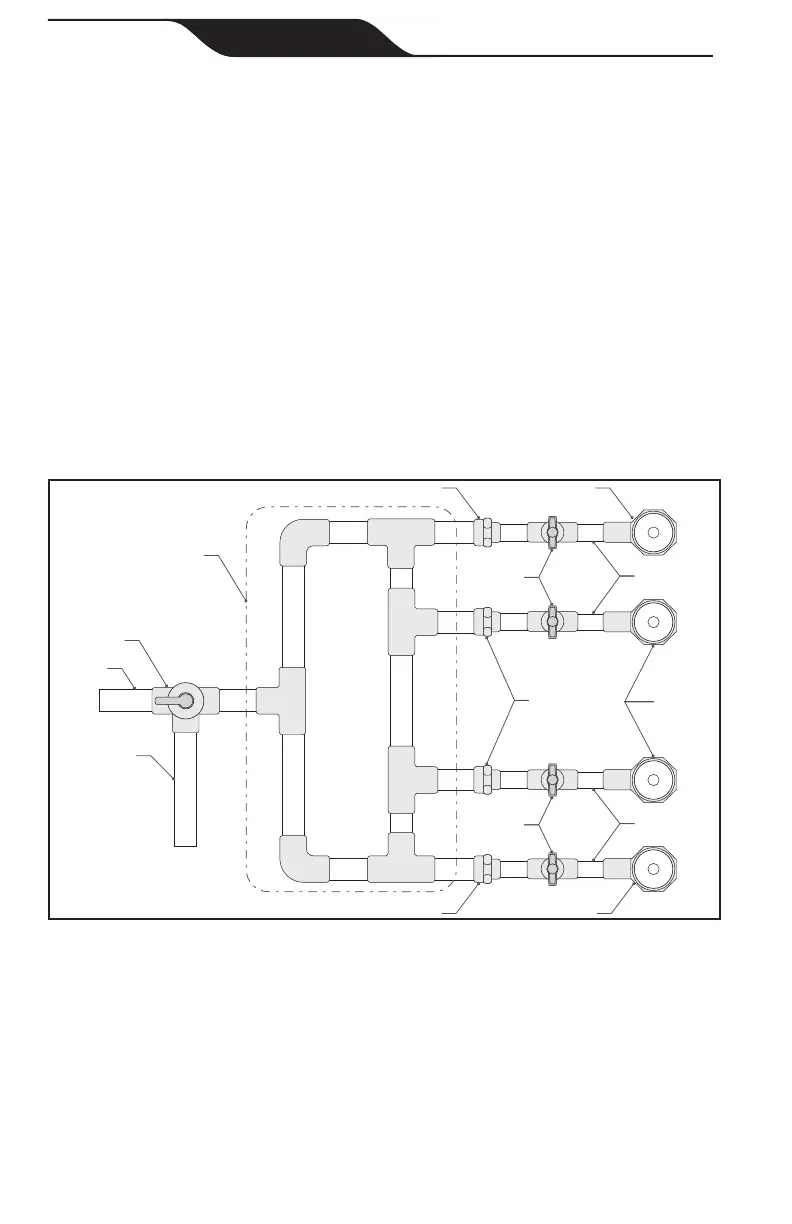

Water Supply
Pool Return
3 Way Valve
Manifold Assembly
Ball Valve
Ball Valve
Reducer Bushing LED Bubbler
Reducer Bushing
LED Bubbler
Reducer Bushing
LED Bubbler
1.5" PVC
1.5" PVC
NOTE: The piping for the
manifold assembly should be
such that it allows sufficient flow
to all the bubblers installed on
the system
Figure 5. Looped Manifold Plumbing
