TruFit Bubbler | Owner’s Manual
ENGLISH
Page 5

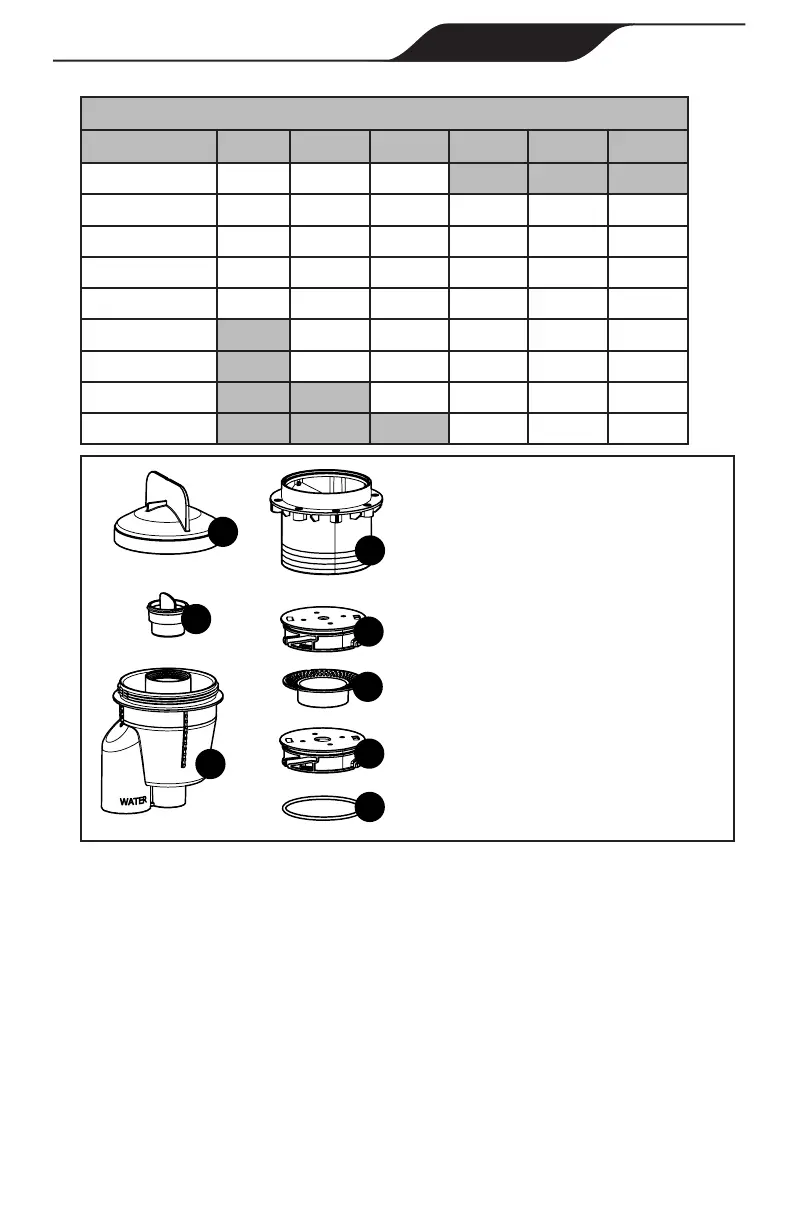

3/4” NOZZLE PLUME HEIGHT
Water Depth 2” 4” 6” 8”
10”
12”
10 GPM 8” 6” 4.5”
15 GPM 15.5” 10.5” 7.5” 6” 5” 4.5”
20 GPM 27” 17” 11” 9” 7.5” 6.5”
25 GPM 41” 26.5” 16.5” 12.5” 11” 8”
30 GPM 61” 36” 23” 16.5” 13” 11”
35 GPM 49” 34” 22.5” 17” 14.5”
40 GPM 64” 49” 30.5” 22” 17.5”
45 GPM 61” 39” 27” 21”
50 GPM 51” 34.5” 26.5”
2
1 - Jandy
®
Bubbler Body
2 - Small Construction Cover
3 - Large Construction Cover
4 - O-Ring
5 - 3/4 Inch Lens
6 - Diffuser
7 - 1/2 Inch Lens
8 - Adjustable Sleeve
1
4
5
7
6
8
3
Figure 1. Package Contents
The TruFit
TM
Bubbler body comes with the Large Construction Cover
pre-assembled and ready to pressure test.
Inside the TruFit Bubbler Body - a Small Construction Cover has already
been installed. Do not remove this until the Bubbler Body is ready to have
the light installed.
NOTE: Adjustable Sleeve is for
berglass and vinyl
pools only
