This document describes the JAP FUSIONESCO ELYSIAN, a versatile kitchen appliance that combines the functionalities of a deep fryer and a steam oven.

Function Description

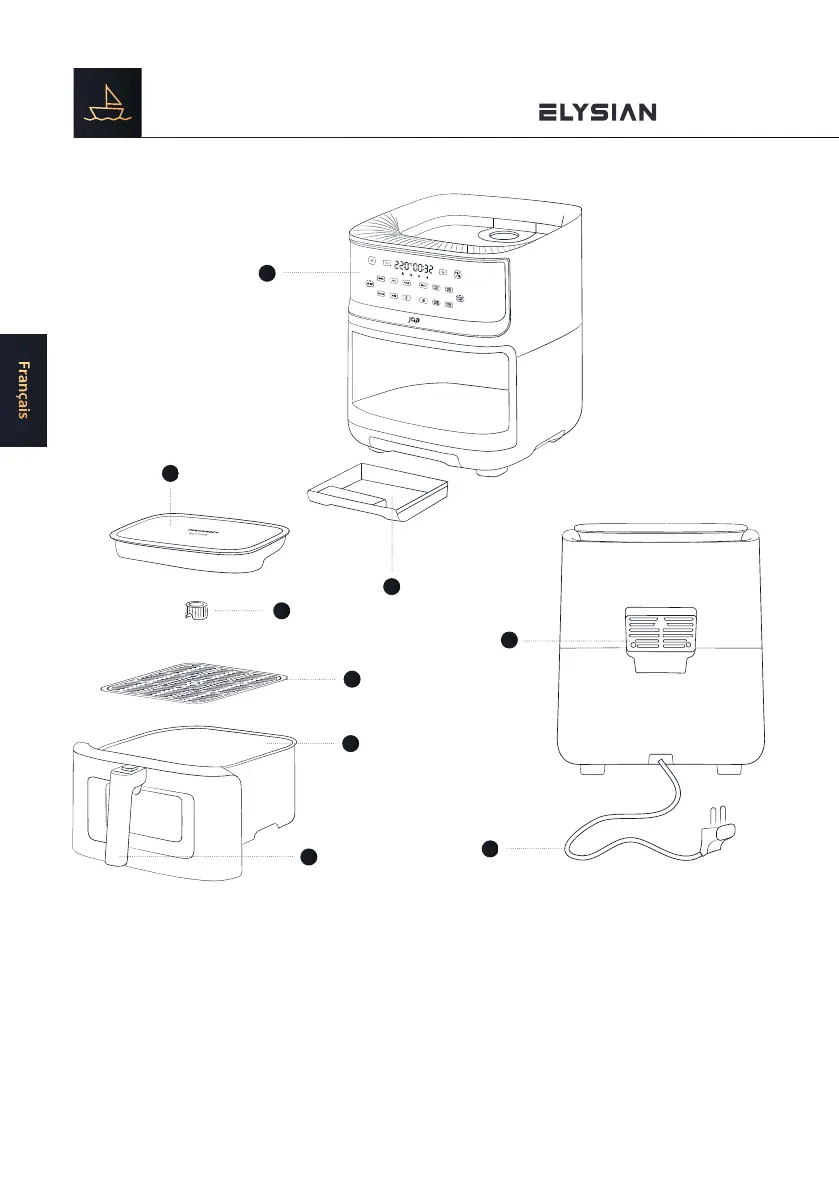

The JAP FUSIONESCO ELYSIAN is designed to offer a wide range of cooking options, including air frying, baking, roasting, steaming, and broiling. It features a control panel that allows users to select various programs and adjust settings for temperature and time. The appliance is equipped with a deep fryer basket for air frying functions and a water tank for steam oven functions. It also includes a waste water tank and a stainless steel ventilation grille.

Important Technical Specifications

Product reference: F-EL
Voltage: 220-240V~, 50-60Hz
Power supply: 1700W
Capacity basket: 7L
Capacity water tank: 1.6L
Adjustable temperature: 80-200°C
Adjustable timer: 1-60 min
Origin: Made in P.R.C., designed in the Netherlands.

Usage Features

Before First Use:

Carefully read the safety precautions and check for visible damage.
Remove all packaging, including temporary stickers.
Place the ELYSIAN on a stable, level, heat-resistance surface.
Wipe the inside and outside with a damp cloth and dry with a towel.
Perform a test run to familiarize yourself with the appliance and clean any possible residues.

Using the Deep Fryer:

Insert the plug into a suitable outlet.
Press the power button to turn on the deep fryer. Hold it to turn off.
Touch "Air Fry" to set the deep fryer to air fry mode.
Choose a program (Air Fry, Bake, Roast, Reheat, Broil) by pressing the corresponding button.
Adjust temperature using the temperature buttons (+/-) and timer using the timer buttons (+/-). Hold the buttons for faster adjustment.
Press the start/pause button to begin or pause the program.
Carefully remove the basket using the handle, place ingredients inside, and then reinsert the basket.
The deep fryer automatically pauses when the basket is opened and resumes when closed.

Filling the Water Tank (for Steam Oven Functions):

Carefully remove the water tank from the deep fryer.
Remove the knob from the water tank.
Add sufficient pure water to the tank. Only use distilled water; do not fill with water higher than 50°C or lower than 10°C to avoid leakage.
Place the knob back and reinsert the water tank into the deep fryer.
An "E11" error indicates no water in the reservoir, while "E12" indicates a water shortage during a program.

Using the Steam Oven:

Insert the plug into a suitable outlet.
Press the power button to turn on the deep fryer. Hold it to turn off.
Touch "Steam Crisp" to set the deep fryer to steam mode.
Choose a program (Steam, Steam Bake, Steam Meal, Steam Clean, Empty Water) by pressing the corresponding button.
Only the temperature for "Steam Bake" can be adjusted.
The "Empty Water" function is used for emptying the water tank.
Follow the same steps for starting, pausing, and placing ingredients as with the deep fryer.

Cooking Guide (Deep Fryer & Steam Oven): The manual provides detailed cooking guides with recommended min-max weight, time, temperature, and whether sautéing is required for various food items like potatoes, meat, poultry, snacks, and baked goods for the deep fryer, and custard, shrimp, fish, rice, broccoli, corn, and spare ribs for the steam oven.

Tips:

Smaller ingredients generally require shorter cooking times.
Sautéing ingredients halfway through the cooking process optimizes results and prevents uneven baking.
Add a little oil to fresh potatoes for a crispy result.
Avoid preparing extremely fatty ingredients.
The deep fryer can also be used to reheat ingredients (e.g., 150°C for 10 minutes).
Ensure the quantity of food does not exceed the maximum level indicated in the basket to maintain cooking quality.
Verify cooking times and temperatures for different foods before simultaneous preparation.
The maximum quantity for each food item is half of the normal amount when cooking simultaneously.

Maintenance Features

Cleaning:

Always clean your ELYSIAN after each use.
Turn off and unplug the appliance. Allow it to cool completely before cleaning. Remove the basket to expedite cooling.
Wipe the exterior with a damp cloth.
The basket and grid are dishwasher safe. They can also be washed with hot soapy water and a non-abrasive sponge. Soak if necessary.
Do not use metal kitchen utensils or abrasive cleaning products on the basket and grid.
For stubborn dirt:
- Mix 30 ml of baking soda with 15 ml of water to form a paste.
- Apply the paste with a sponge to removable parts and scrub. Let it sit for 15 minutes before rinsing.
- Wash removable parts with water and soap before use.
Clean the interior with a damp, non-abrasive sponge or cloth. Do not immerse in water.
Use a soft cleaning brush to remove food residue from the heating element, being careful not to damage it.
Dry thoroughly before use.
Ensure all accessories are completely dry before turning on the ELYSIAN.

Troubleshooting: The manual includes a troubleshooting section for common issues:

Deep fryer does not turn on: Ensure it's plugged in correctly.
Deep fryer emits odor: Normal for first use; the basket may need cleaning.
Deep fryer no longer works: The device has a protective function and may turn off automatically. Wait 30 minutes.
Basket does not fit: Too many ingredients or not placed correctly.
Black smoke: Preparing fatty ingredients or food residue from previous use.

Warranty Information: JAP Products guarantees all products for 2 years from the purchase date for material, workmanship, and service quality. Warranty periods may vary by product category. For questions or concerns, contact support@japproducts.eu or call +31736447405 (workdays 09:00 – 17:00 CET). Keep your order ID ready.

Disposal of Electrical Appliances: The European directive 2012/19/EU (WEEE) mandates that old household electrical appliances must not be disposed of with unsorted municipal waste. They must be collected separately for optimal recovery and recycling of materials, reducing environmental and health impacts. The crossed-out "wheelie bin" symbol on the product indicates the obligation to dispose of the appliance correctly. Consumers should contact local authorities or retailers for information on proper disposal of old appliances and/or batteries.
