Jasco ZigBee ZB3001 (45857) User Manual

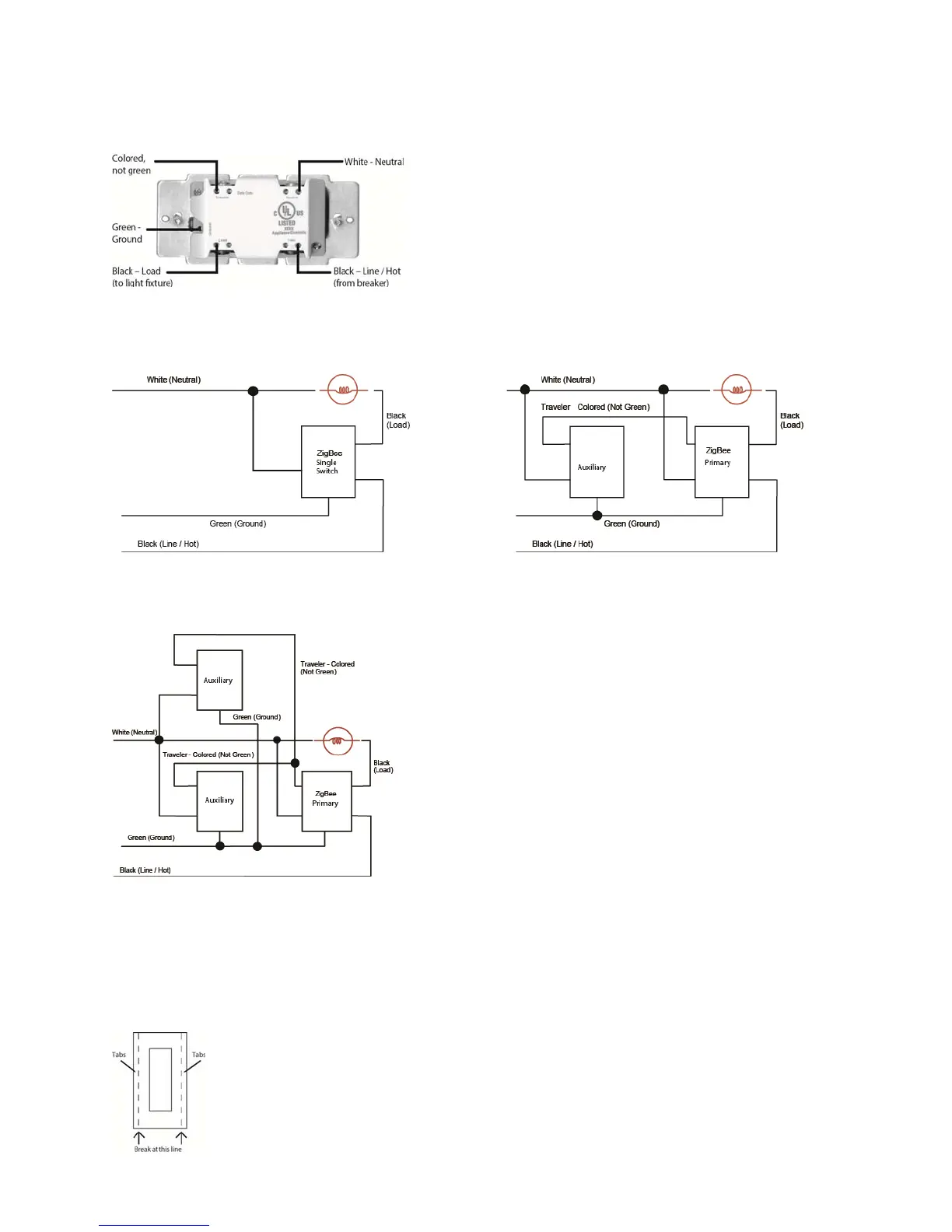

CONNECTIONS
TWO‐WAYCONTROL
SINGLESWITCHWIRINGUSINGONEPRIMARY
SWITCH
THREE‐WAYCONTROL
TWOSWITCHWIRINGUSINGONEPRIMARY
ANDONEAUXILIARYSWITCH
FOUR‐WAYCONTROL
THREESWITCHWIRINGUSINGONEPRIMARYANDTWOAUXILIARYSWITCHES
Single,DualandTripleGangBoxes
The metal plate surrounding the switch assembly is a heat sink. The maximum load rating (600W) is
provided when installed in a single gang box with the full heat sink. Multiple dimmer switches may be
installed in dual or triple gang boxes and, if necessary, one or both sides of the heat sink may be
removed by bending it at the score lines. There is a corresponding reduction in the switch’s load rating
when ganged. DO NOT exceed the following loads:
