Jasic Arc JA-140 User Manual

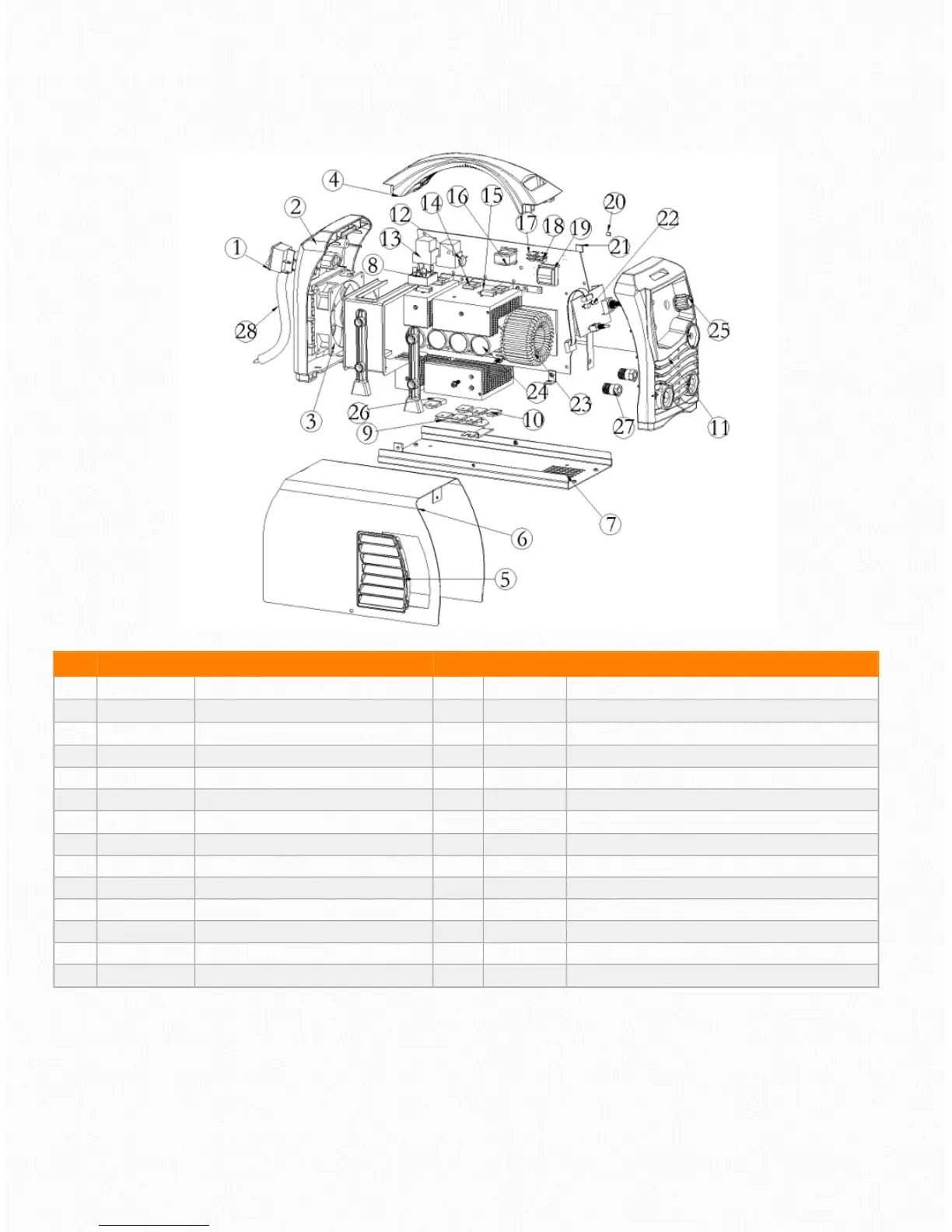

Arc Pro 160 - (JA-160DV)
14
No.
Part no
Description
No.
Part no
Description
1
10004957
Power switch
15
10037859
Thermal Switch
2
10037125
Back Panel
16
10037135
Drive Transformer
3
10044817
Fan
17
10006282
IRF9Z24N
4
10043477
Handle
18
10006282
IRFZ24N
5
10043689
Louver
19
10037134
Switching mode power supply transformer
6
10039735
Machine Cover
20
10037147
LM79L15ACMX
7
10037113
Bottom Panel
21
10037146
TOP266KG
8
10037485
ARC160D Silicon bridge
22
10043914
ARC160D Control Board
9
10037431
ARC160D Rectifying Board
23
10037134
ARC160D High frequency transformer
10
10006248
ARC160D Rectifier Tube
24
10038719
ARC160D Electrolytic capacitor
11
10037836
Front Panel
25
10037561
Knob
12
10006431
Thermal Resistor
26
10037078
Pin insulation cover
13
10006474
Electric Relay
27
10037152
Quick socket
14
10007251
IGBT
28
10037858
Power line
