Jasic Arc JA-140 User Manual

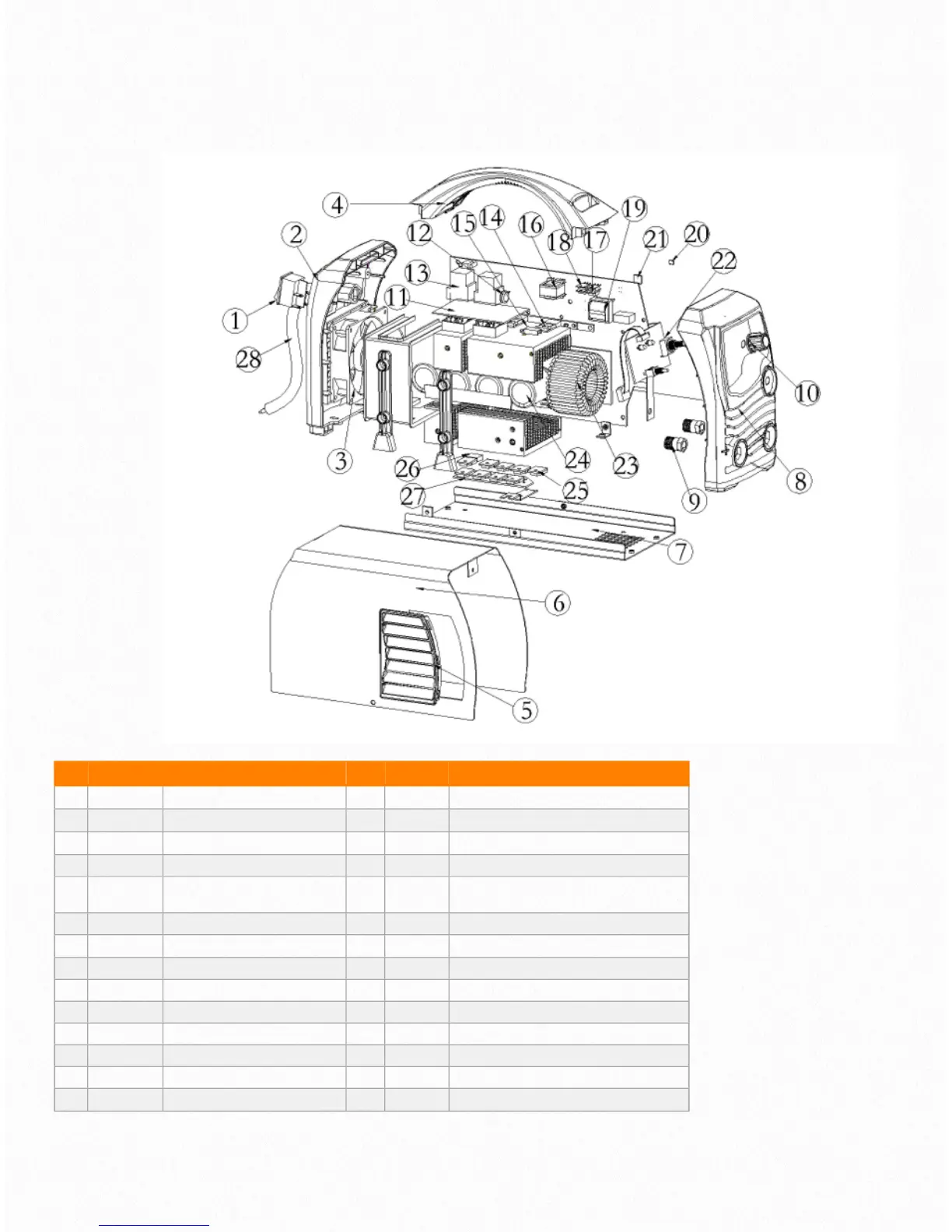

Arc Pro 180 - (JA-180DV)
No.
Part no
Description
No.
Part no
Description
1
10004957
Power switch
15
10037852
Thermal Switch
2
10037837
Back Panel
16
10037135
Driver transformer
3
10044009
Fan
17
10006282
IRF9Z24N
4
10043477
Handle
18
10006282
IRFZ24N
5
10043689
Louver
19
10037134
Switching mode power supply
transformer
6
10037813
Machine Cover
20
10037147
LM79L15ACMX
7
10037811
Bottom panel
21
10037146
TOP266KG
8
10043405
Front Panel
22
10043912
Control Board
9
10044030
Quick Socket
23
10037735
High Frequency transformer
10
10037561
Knob
24
10038737
Electrolytic capacitor
11
10044538
Silicon Bridge board
25
10006248
Rectifier tube
12
10006431
Thermal Resistor
26
10037078
Pin insulation cover
13
10006474
Electric Relay
27
10037429
Rectifying board
14
10029693
IGBT
28
10037853
Power line
15
