Jasic Arc Series User Manual

12
INSTALLATION
Unpacking
Check the packaging for any signs of damage.
Carefully remove the machine and retain the packaging unl the installaon is complete.
Locaon
The machine should be located in a suitable posion and environment. Care should be taken to avoid
moisture, dust, steam, oil or corrosive gases.
Place on a secure level surface and ensure that there is adequate clearance around the machine to ensure
natural airow.
Input connecon
Before connecng the machine you should ensure that the correct supply is available. Details of the
machine requirements can be found on the data plate of the machine or in the technical parameters
shown in the manual.
The equipment should be connected by a suitably qualied competent person. Always ensure the
equipment has a proper grounding.
Never connect the machine to the mains supply with the panels removed.

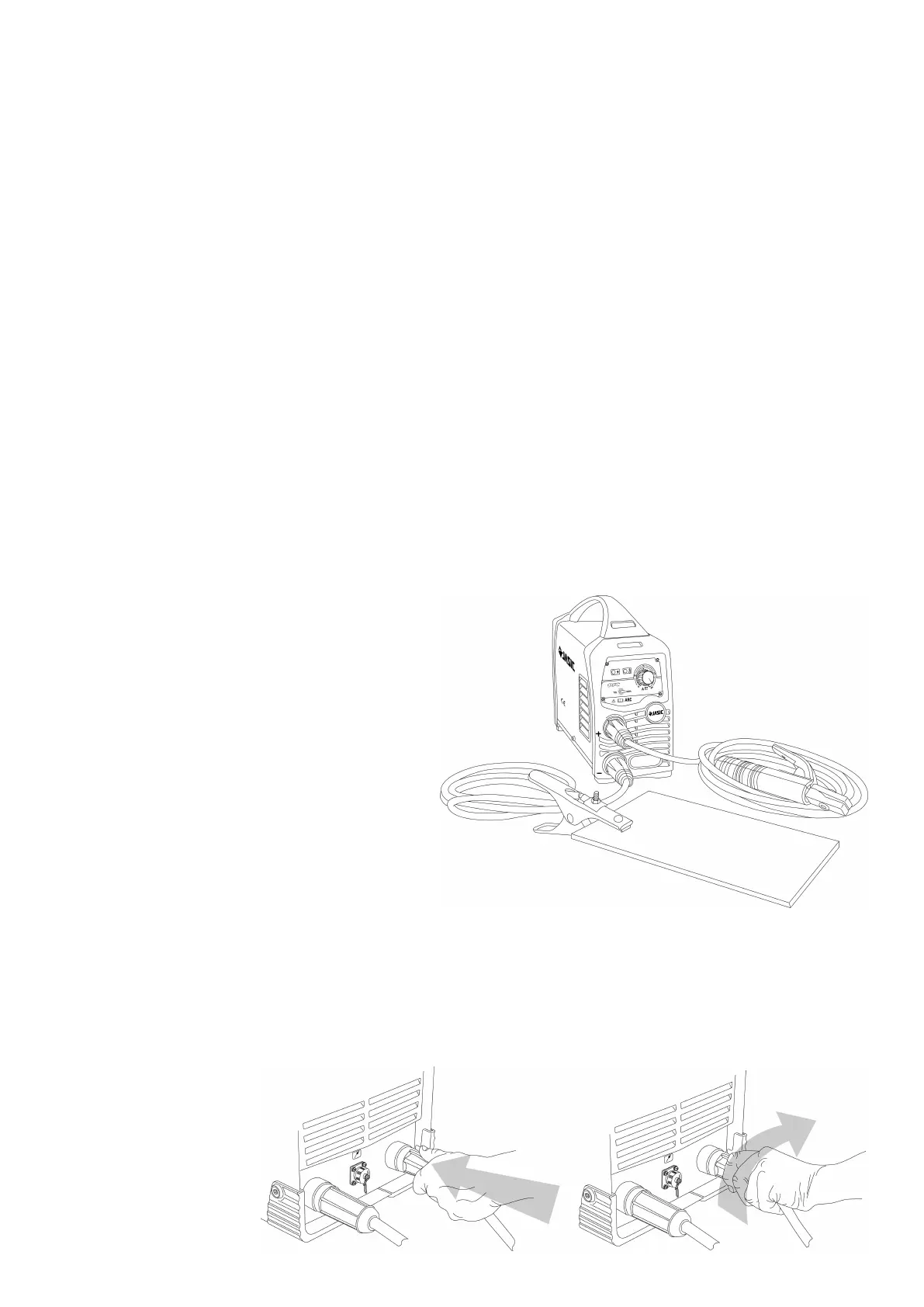

Output connecons
Electrode polarity is generally determined by the
type of welding rod being used although in
general when using manual arc welding
electrodes the electrode holder is connected to
the posive terminal and the work return to the
negave terminal.
Always consult the electrode manufacturer’s
data sheet if you have any doubts.
When using the machine for TIG welding the
TIG torch should be connected to the negave
terminal and the work return to the posive
terminal.
MMA welding
Insert the cable plug with electrode holder into the “+” socket on the front panel of the welding machine
and ghten it clockwise.
Insert the cable plug of the work return lead into the “-” socket on the front panel of the welding machine
and ghten it clockwise.
Please Note:
Check these power
connecons daily to
ensure they have not
become loose otherwise
arcing may occur when
used under load.
Generic library picture

Jasic Arc Series Specifications

General

Protection Class	IP21S
Efficiency	85%
Insulation Class	F
Duty Cycle	60%
Welding Process	MMA
