User Manual Javo Plus en Plus Extra Potmachine
Version 2015-1 10

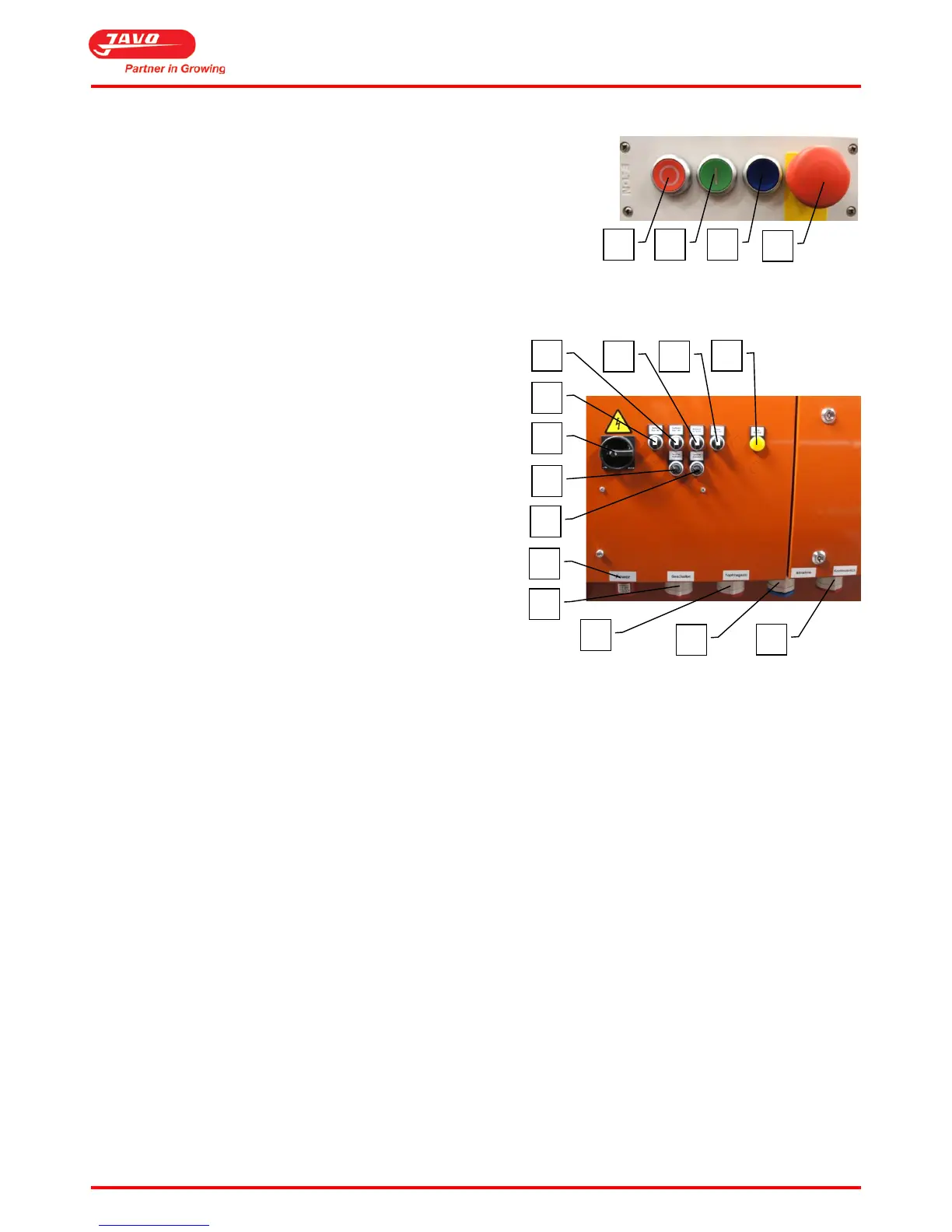

3.6 Controls
The motor is controlled with the control panel. The control panel consists of
the following buttons;
A. Stop button
B. Start button
C. Reset button
D. Emergency stop button
At the electrical cabinet of the machine, these buttons and connectors are placed:
A. Stopped / Error indication
B. Belt off / on
C. Elevator off / on
D. Pottrack off / on
E. Drill off / on
F. Main switch
G. Speed pottrack
H. Speed elevator
I. Continuous power IN
J. Switched power OUT
K. Switched power OUT pot stock belt
L. Switched power OUT (optional)
M. Continuous power OUT (optional)
E
F
G
H
I
D
C
B
A
M
L
K
J
A
B
C
D
