User Manual Javo Plus en Plus Extra Potmachine
Version 2015-1 8

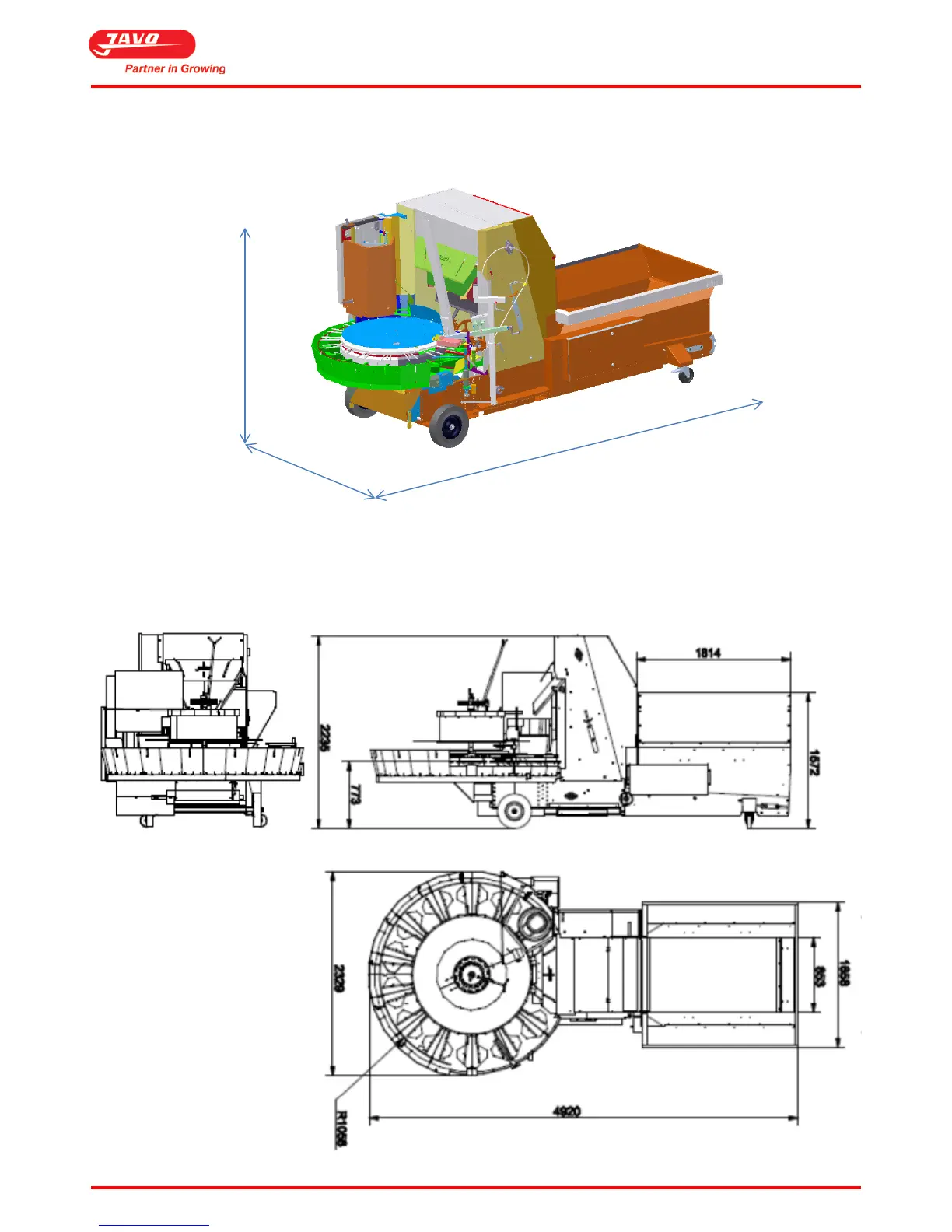

3.2 Outline drawing with main dimensions
Plus:
Plus Extra:
LXWXH=4950x2400x2250 mm
1600
2000
4200
