User Manual Javo Plus en Plus Extra Potmachine
Version 2015-1 16

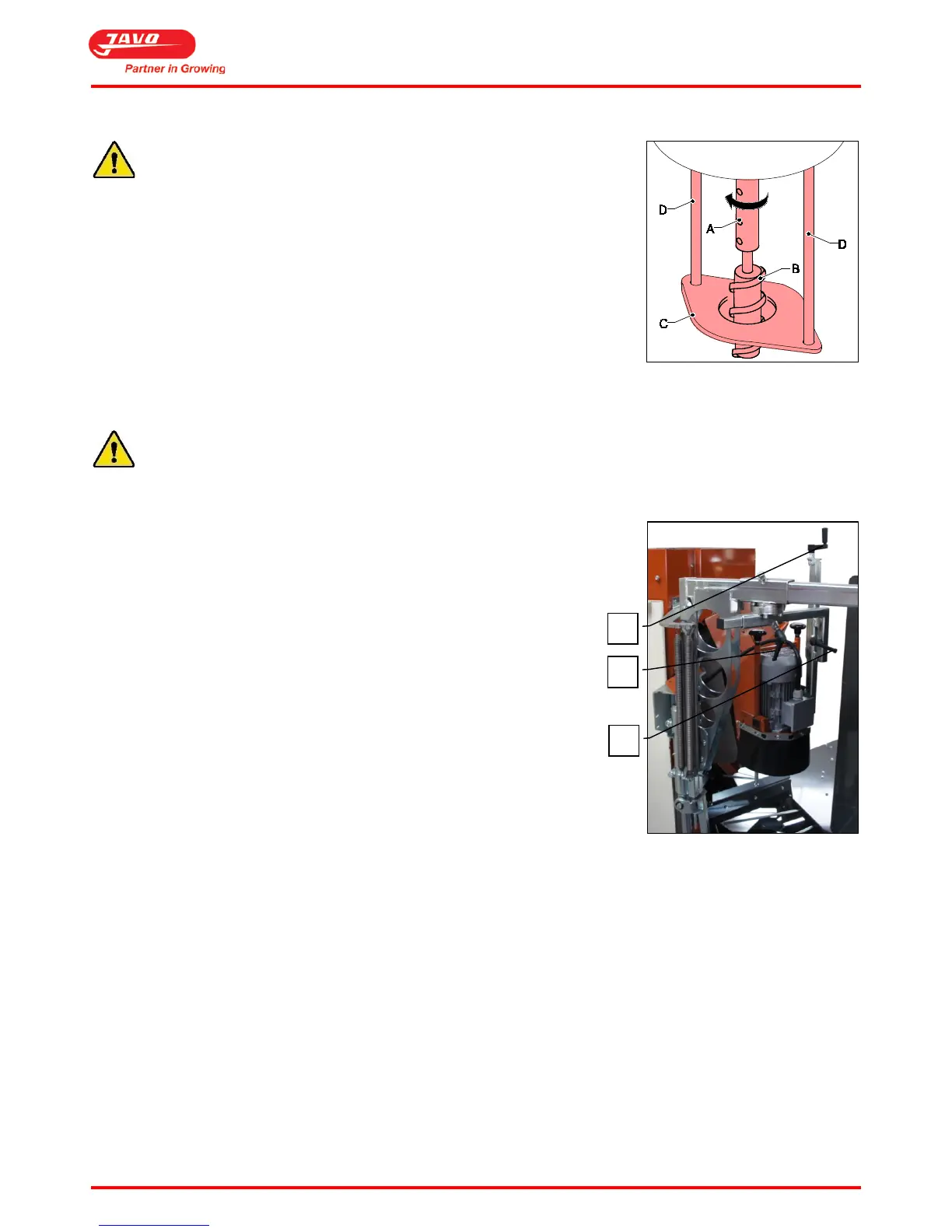

5.13 Set drill size
Set the drill size before you start working with the machine.
The drill size depends on the plug size of the plants.
Drill (B) is mounted in the drill shaft of the drill motor with two screws (A). The
drill shaft screws have to be mounted to the flat side of the drill sleeve.
Drill plate (C) has a drill hole with a diameter of approximately 10 mm larger than
the drill. This drill plate is to be mounted to the bottom side of rods (D) with 2
locknuts.
The depth of the hole depends on the position of the drill, which is adjustable. Adjust the depth by placing drill (B) in
drill shaft (A).
Recommended distance of drill point under the drill plate is 1-2.cm.
Procedure height adjustment:
1. Loosen clamp (A).
2. Adjust drill height with swivel (C).
3. Tighten clamp (A).
Procedure side adjustment:
1. Loosen clamp (B).
2. Adjust drill in the lateral direction.
3. Tighten clamp (B).
