Operator’s Manual - 28 - Trailer Units - Model 3650
SHEAR BOLT PROTECTED DRIVELINE
Should excessive loads be placed on the driveline, the shear bolt will rupture. This is a
safety feature, however, do not depend on this as the maximum load indicator. The shear
bolt is located on the machine end of the PTO shaft supplied with the machine.
If the shear bolt breaks, it must be replaced with the correct bolt specified by the
manufacturer. Refer to the ‘Maintenance and Service Information’ attached for details. For
convenience, spare shear bolts are supplied with the machine and are stored on the left
frame upright as shown in the above diagram.

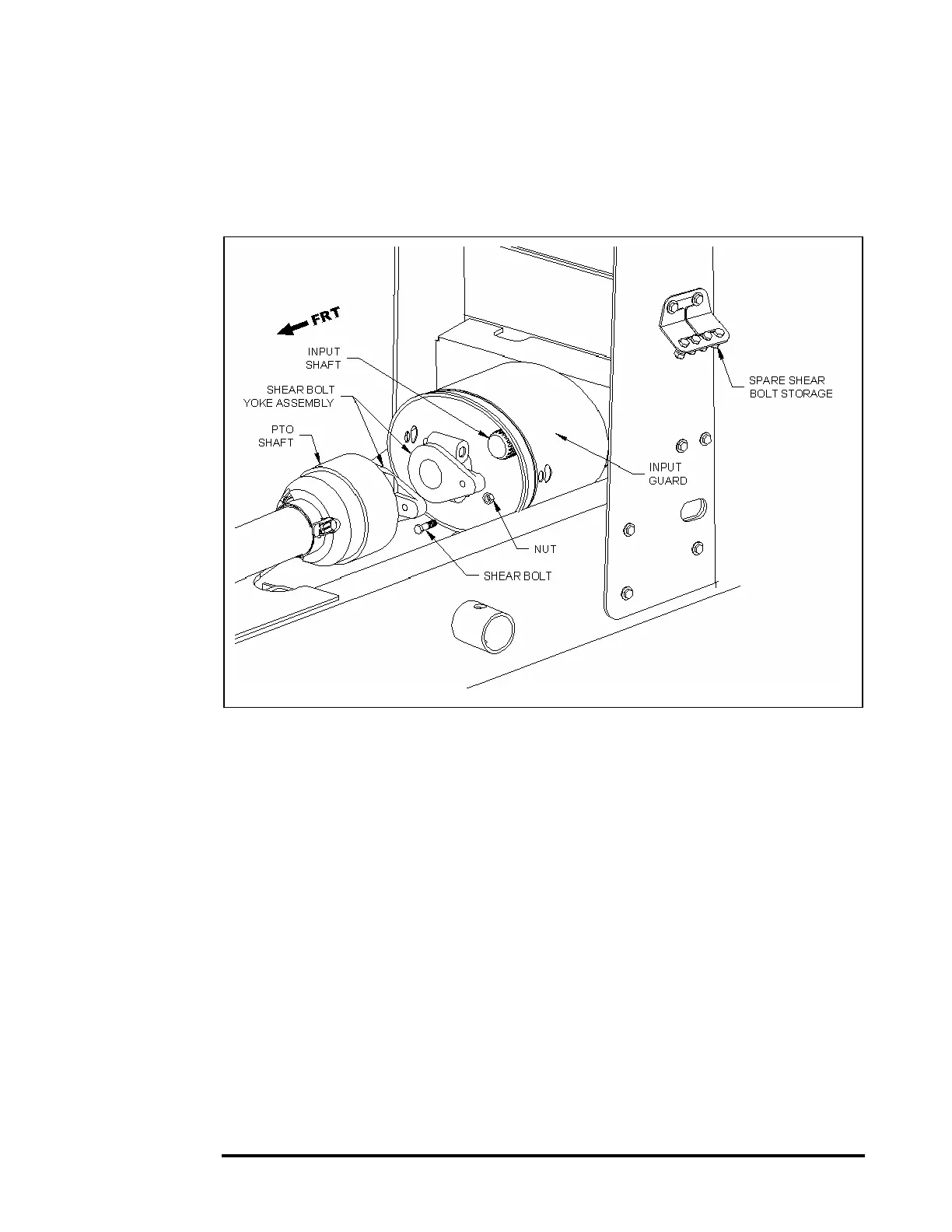

Figure 10 - Shear Bolt Location.
