Operator’s Manual - 29 - Trailer Units - Model 3650
FRONT DOOR DISCHARGE CONFIGURATIONS
Front Door Discharge
The front discharge door is
controlled hydraulically from the
tractor. The door is opened to
allow feed out of the mixing
chamber onto the conveyor.
The door can be raised to any
position up to a maximum of 32
inches in height. Use the door
guide markings to determine the
door opening height.
In most cases the door will be
opened fully to unload the mixed
ration. However, the most
suitable door opening height may
be determined in combination
with the speed of the conveyor
and the ground speed of the
machine when unloading.
Unloading Conveyor
The conveyor must be greased on a regular basis, as per the Maintenance Schedule. When
unloading the machine, engage the conveyor before opening the discharge door. The speed
of the conveyor can be adjusted to suit unloading requirements, by adjusting the flow control
on the tractor.
The conveyor has an adjustment to tighten or loosen the chain. There is an adjuster located
on both sides of the conveyor, at the end of the conveyor opposite to the hydraulic motor.
Use wrenches to tighten or loosen the tension on the conveyor chain. Refer to the
‘Maintenance and Service Information’ for more details.

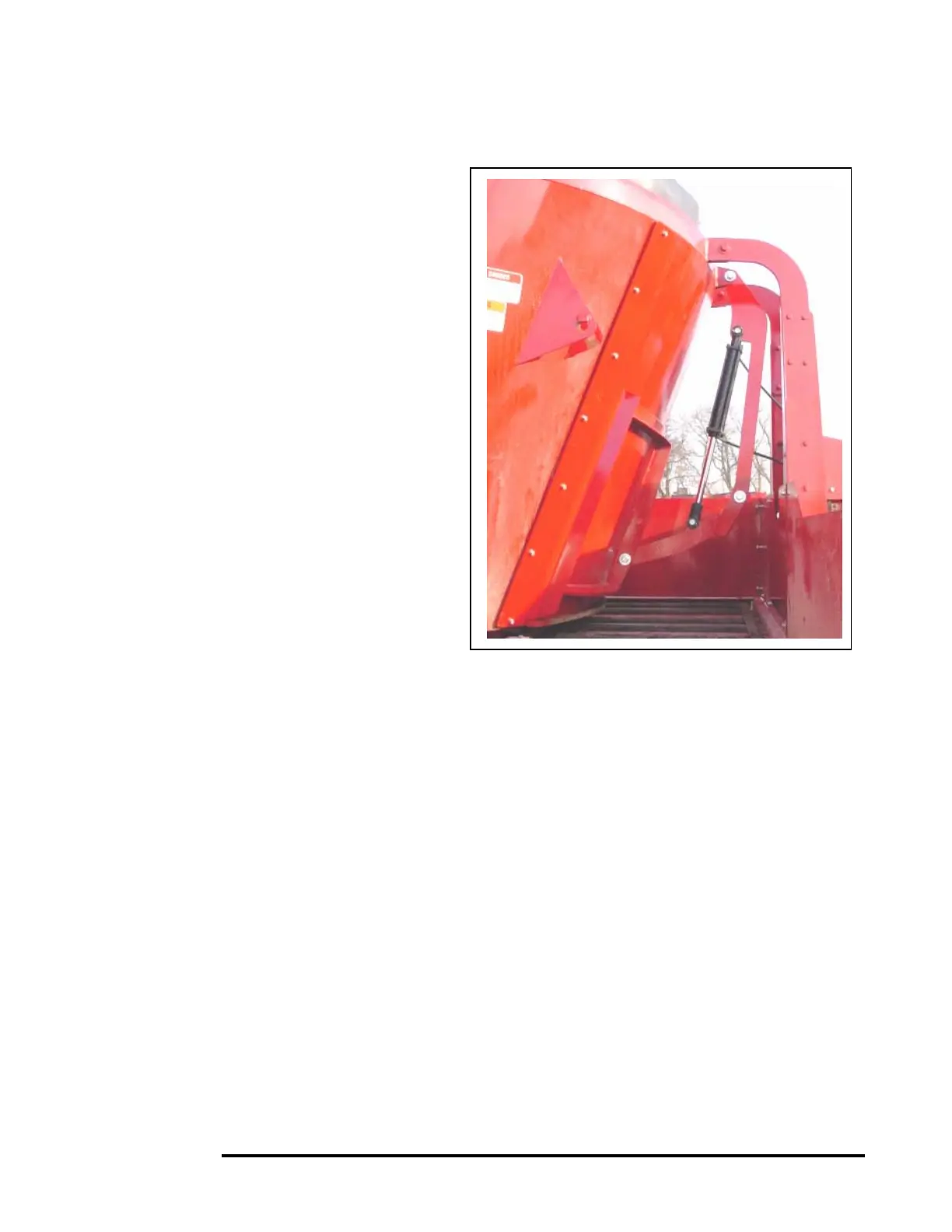

Figure 11 - Front Discharge Door and Guides.
