REMOTE CONTROL UNIT
The CDT3-MK3 comes with a milled solid aluminum Remote Control Unit. It is a generic
Remote Control equipped for all CDT/CDP products; hence, it is not all the buttons are
functional with the CDT3-MK3
 Power
 Open
 Track 0-9
 Play
 Pause
 Stop
 Next/Prev
 Fast Forward
 Repeat
 Random
 Program
 Vol +/-
 Display
 Goto
 Scan
 Time
 Turn on/standby the CDT
 No function
 Select Track 0-9
 Begin CD playback
 Pause CD playback
 Stop CD playback
 Select Next/Prev track
 Fast Forward/Backward the track time
 Repeat Mode
 Random track playback
 No function
 No function
 To dim / Turn off the display
 No function
 Scan the DISC with 10 secs of each
track
 Track time/DISC time / Remain time/

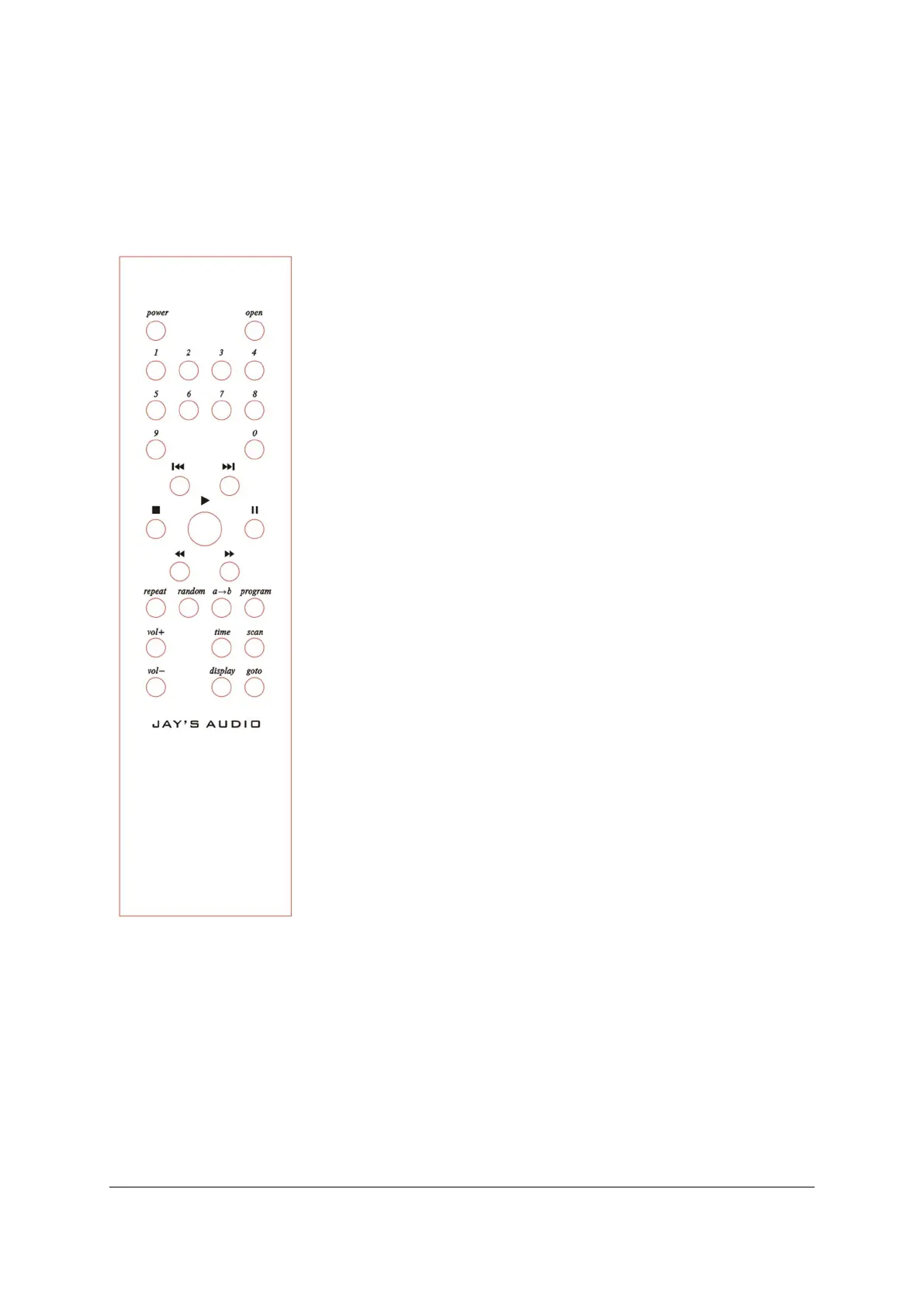

Figure 5. Remote Control Unit
*NOTE: Due to shipping regulation, the Remote Control was shipped without batteries. Please
insert two AAA batteries into the Remote Control battery compartment.
