SECTION 6
PROPANE SYSTEM JAYCO TOWABLE
LP gas container overfill
Never allow your propane tank to be filled
above the maximum safe level as indicated by
the fixed liquid level gauge. Do not allow the
visible gauge to be used for filling. Overfilling
the propane container above the liquid
capacity indicated on the container, could
allow liquid propane to enter the system that
is designed for vapor only creating a
hazardous condition.
The following label should be kept
permanently affixed to your RV.

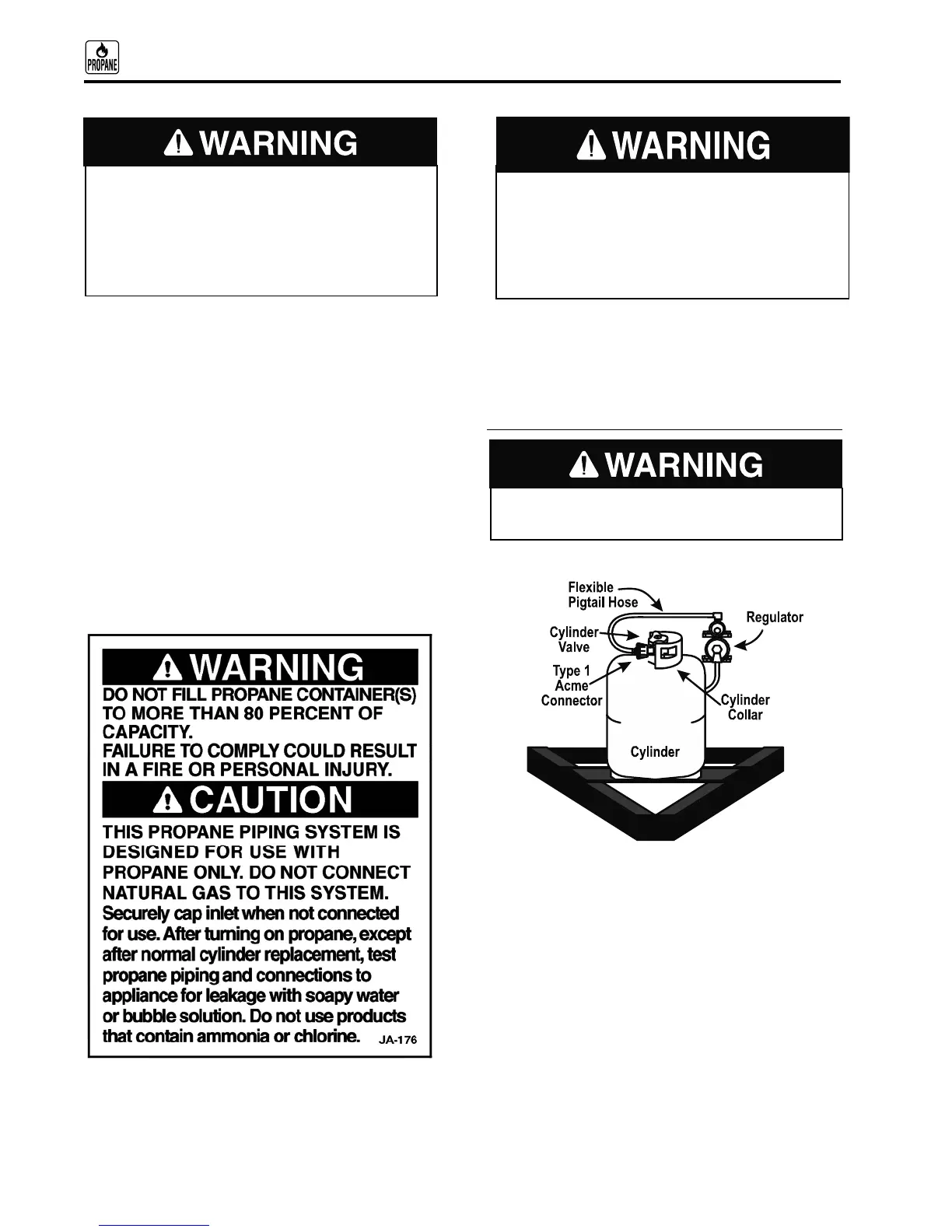

Fig. 6.4 “Do not fill to more than 80%” label
Refer to your Warranty Packet for more
information on the LP gas system
components.
INSTALLING PROPANE CYLINDER(S)
Single Cylinder Mounted On A-Frame
Fig. 6.5 Single cylinder
1. Connect the 3/8" low pressure hose to the
outlet of the two stage regulator.
2. Attach the regulator with the “Z” bracket
on the center of the front wall with the vent
pointing down.
3. Attach the protective plastic cover to the
regulator.
4. The regulator has a 90° elbow that directs
the inlet toward the trailer curbside.
Ensure that all fasteners are secured
before traveling.
The pigtail hose must be installed to avoid
tension or pulling stress at either end of the
hose. Keep the pigtail hose away from
sharp edges of the cylinder collar, rigid
corners, walls, doors or other compartment
structures including the cover.
If you suspect your propane container has
been overfilled, contact your independent
Jayco dealer or a qualified propane
technician for assistance immediately. Do
not attempt to service a propane container
overfill yourself.
6 - 4
