MURPHY BED (IF SO EQUIPPED)
Your recreation vehicle may be equipped with a folding Murphy bed. When in the closed
position, the bed is stored in the wall allowing for more living space within the vehicle.
When you want to use the bed, the sofa folds flat and the bed can be pulled down over sofa
into the sleeping position.
This label has been installed in your recreation
vehicle at the foot end of the Murphy bed.
It should not be removed.

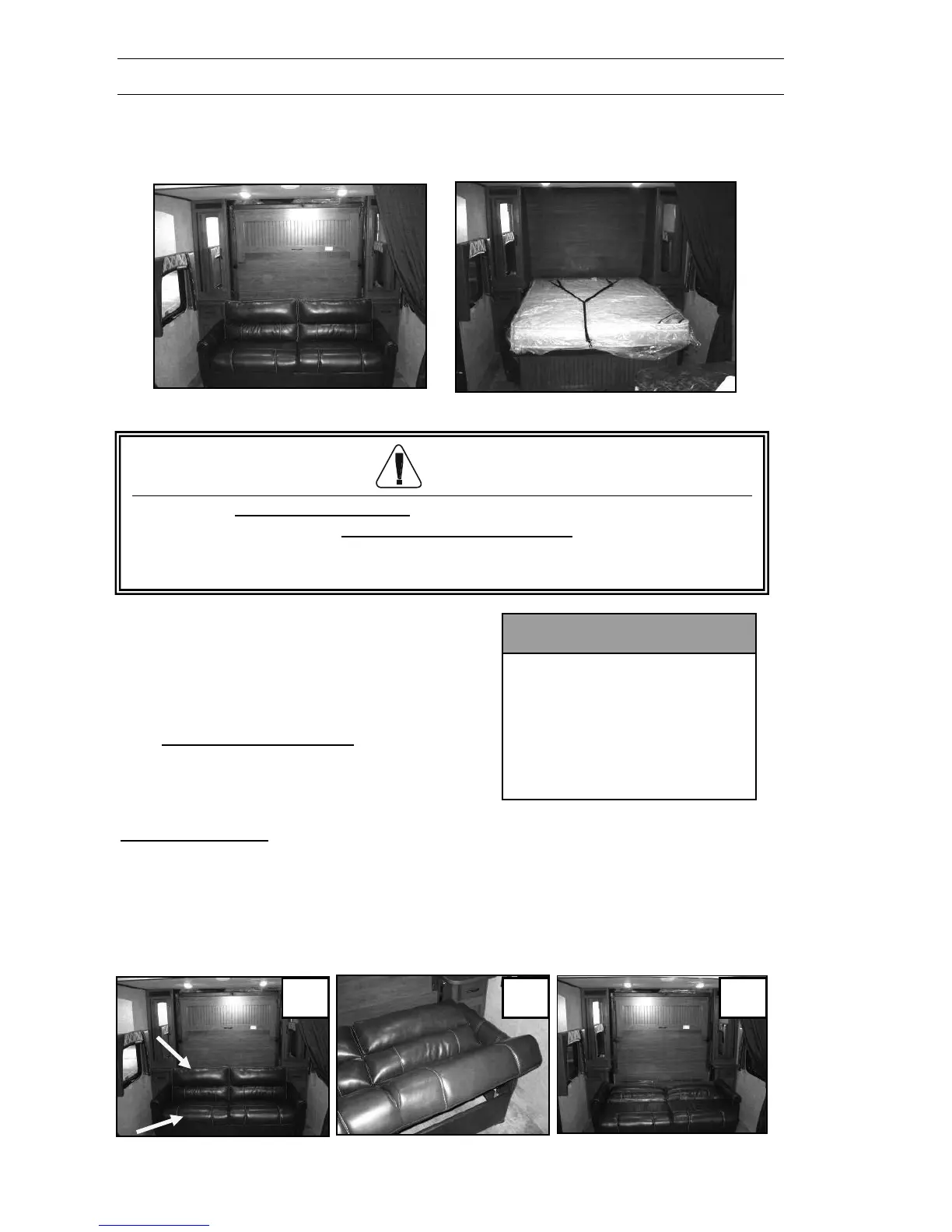

Unfolding the sofa:
With the slideout fully extended, unfold the sofa into the flat position.
 Standing at the side of the sofa, grasp the front of the seat cushion and the top of the
back cushion (Fig. A).
 Lift up on the seat cushion while pulling the top of the back cushion in toward the
seat. The seat and back will form a “V” shape. (Fig. B)
 Pull the seat cushion out away from the front of the sofa into the flat position (Fig. C).
Caution
The slide out must be fully extended before putting the Murphy bed in the sleeping
position. The Murphy bed must be in the stored position before the slide out can
be moved to the in (travel) position. Failure to do so may result in injury or
property damage
The murphy bed must be folded up
and secured in place before moving
the slideout to the in position.
Moving the slideout before the bed
is properly stored and secured may
result in damage to the bed and /or
slideout.
NOTICE
Stored position
Sleeping position
C
.
B
.
A
.
