Electric Slideout (Option)
EXTENDING ROOM
1. Batteries must be fully charged and connected. The park trailer should be hooked up to
120-volt AC power if possible.
2. The park trailer must be level and the stabilizer jacks in the down position.
#
CAUTION: Additional support jacks are not needed under the slideout. Damage can occur
to your slideout room from improper use of support jacks.
3. Remove the "transit bars" (Fig. 3-3 & 3-4) from behind the top facia board located above
slideout room.
4. Locate slideout room control switch.(Fig. 3-5)
5. To move room out, press the "out" button on the
control switch and hold until motor stops. Release
button. Travel time - approximately twenty-five
seconds.
6. For the bedroom slideout, lift the end of the mattress
and unfold the end of the plywood on the bed base at
the hinge. (Fig. 3-6)
RETRACTING ROOM
Living Room:
1. Remove all objects left between the slideout and cabinetry.
2. Press the "In" button on the control switch (Fig. 3-5) to bring room in and
hold it until the motor stops.
3. Release the button.
4. Install the "transit bars" (Fig. 3-3 & 3-4) in the proper locations as
indicated on the wall.
a. Insert the spring tension transit bar with handle (Fig. 3-3) and lock it
into place at the rear of the slideout.
b. Place the manual adusted transit bar (Fig. 3-4) beside the spring tension transit bar and
tighten the wing nut (Fig. 3-7) to the proper position.
c. Repeat steps a & b at the front of the slideout.

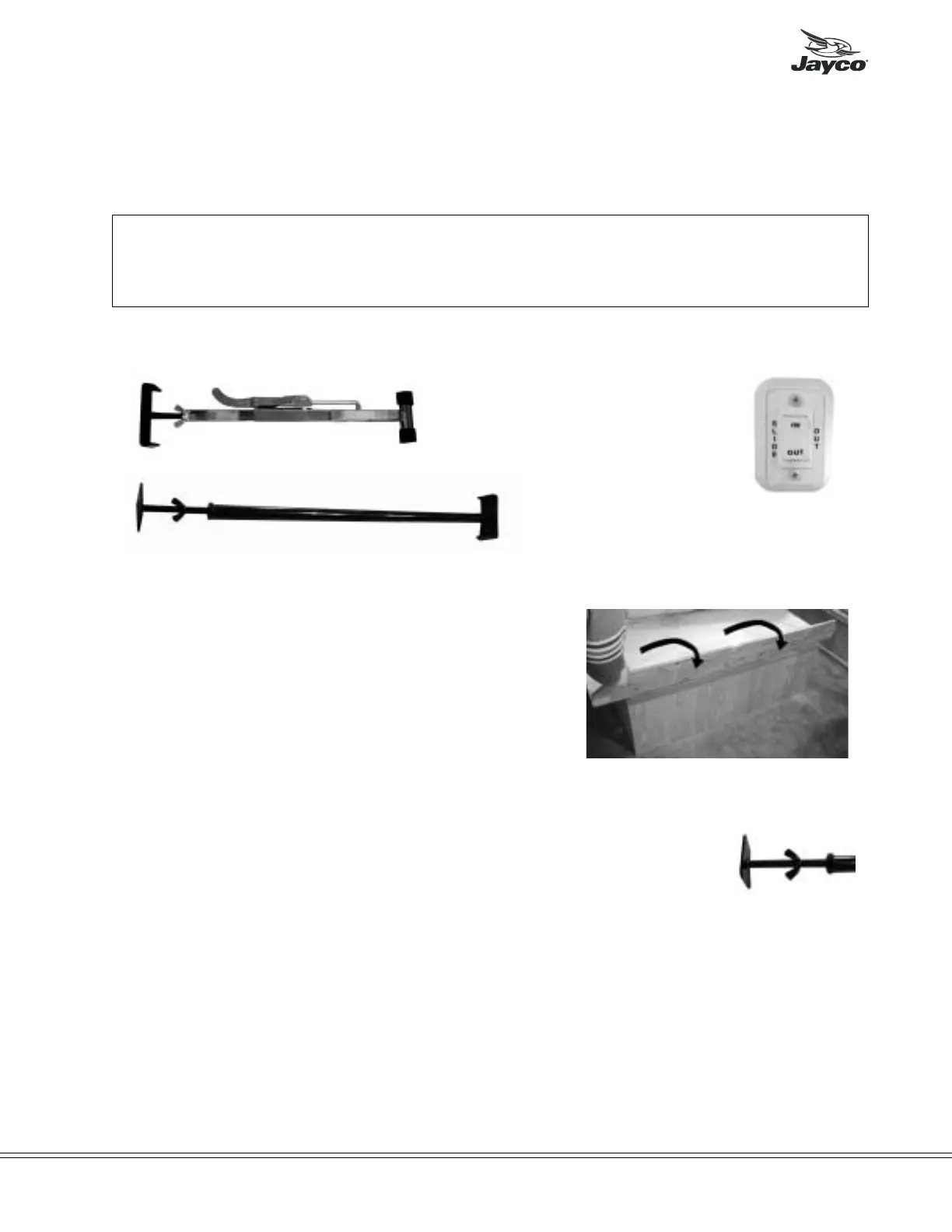

Use Of Your Park Trailer 9
Fig. 3-7
Fig. 3-6
Fig. 3-5
Spring Tension Transit
Bar with Handle
Fig. 3-3
Manual Adjusted
Transit Bar
Fig. 3-4
