RETRACTING ROOM
Living Room:
1. Remove all objects left between the slideout and cabinetry.
2. Disengage the lock by turning it counter-clockwise to the unlock position. (Fig. 3-16)
3. Insert the crank handle. (Fig. 3-14) Turn the handle clockwise until the room is retracted.
4. Install the "transit bars" (Fig. 3-11 & 3-12) in the proper locations as indicated on the wall.
a. Insert the spring tension transit bar with handle (Fig. 3-11) and lock it into place at the
rear of the slideout.
b. Place the manual adjusted transit bar (Fig. 3-12) beside the spring
tension transit bar and tighten the wing nut (Fig. 3-17) to the proper
position.
c. Repeat steps a & b at the front of the slideout.
5. Engage the lock by turning it clockwise to the lock position. (Fig. 3-15)
Bedroom:

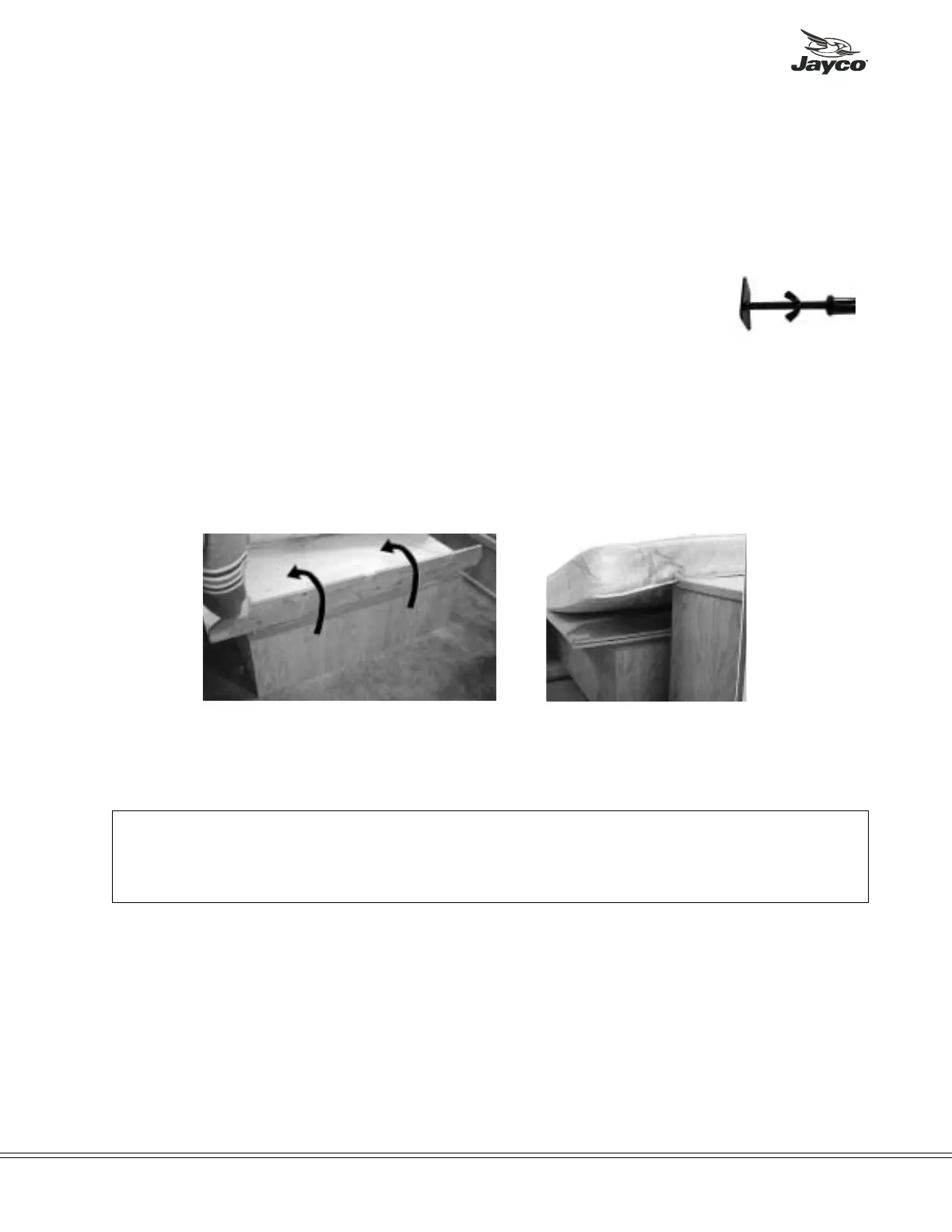

1. Lift the end of the mattress and fold over the end of the plywood on the bed base at the hinge.
(Fig. 3-18)
2. Insert the crank handle. (Fig. 3-14) Turn the handle clockwise until the room is retracted. As
the end of the mattress gets close to the cabinet, lift up on the mattress to position it above the
cabinet. When stored, the mattress will rest on top of the cabinet. (Fig. 3-19)
3. Install the transit bar (Fig. 3-11) in the proper location as indicated on the wall.
4. Engage the lock by turning it clockwise to the lock position. (Fig. 3-15)
#
CAUTION: IMPORTANT! Never store without the transit bars installed. This helps seal the
slideout in the closed position.
Use Of Your Park Trailer 13
Fig. 3-17
Fig. 3-19Fig. 3-18
