AIR CONDITIONER
Operation
+ SHOWS POSITION OF SWITCH
SYSTEM FAN
AUTO ON
OPERATION
HEAT* COOL OFF FAN HI LO LO HI
+ No functions occur.
+
Air conditioner fam runs at high speed continuously
regardless of fan switch setting or set point. No other
functions occur.
++
Air conditioner compressor and high speed fan cycle
to satisfy set point.
++
Air conditioner compressor and low speed fan cycle to
satisfy set point.
++
Air conditioner compressor cycles to satisfy set point.
Air conditioner low speed fan runs continuously.
++
Air conditioner compressor cycles to satisfy set point.
Air conditioner high speed fan runs continuously.
+* +
Furnace and furnace blower cycles to satisfy set point.
Furnace blower operates from sequencer or time delay
in furnace. Air conditioner blower does not run.
+* +
+* +
+* +
All cooling functions controlling to the set point have a short cycle protection time delay of 3
minutes. There will be no delay if the cycle OFF time exceeds 3 minutes.
*There is no heat switch or furnace function available with the “Cool Only” thermostat.
66 Cove Owner’s Manual

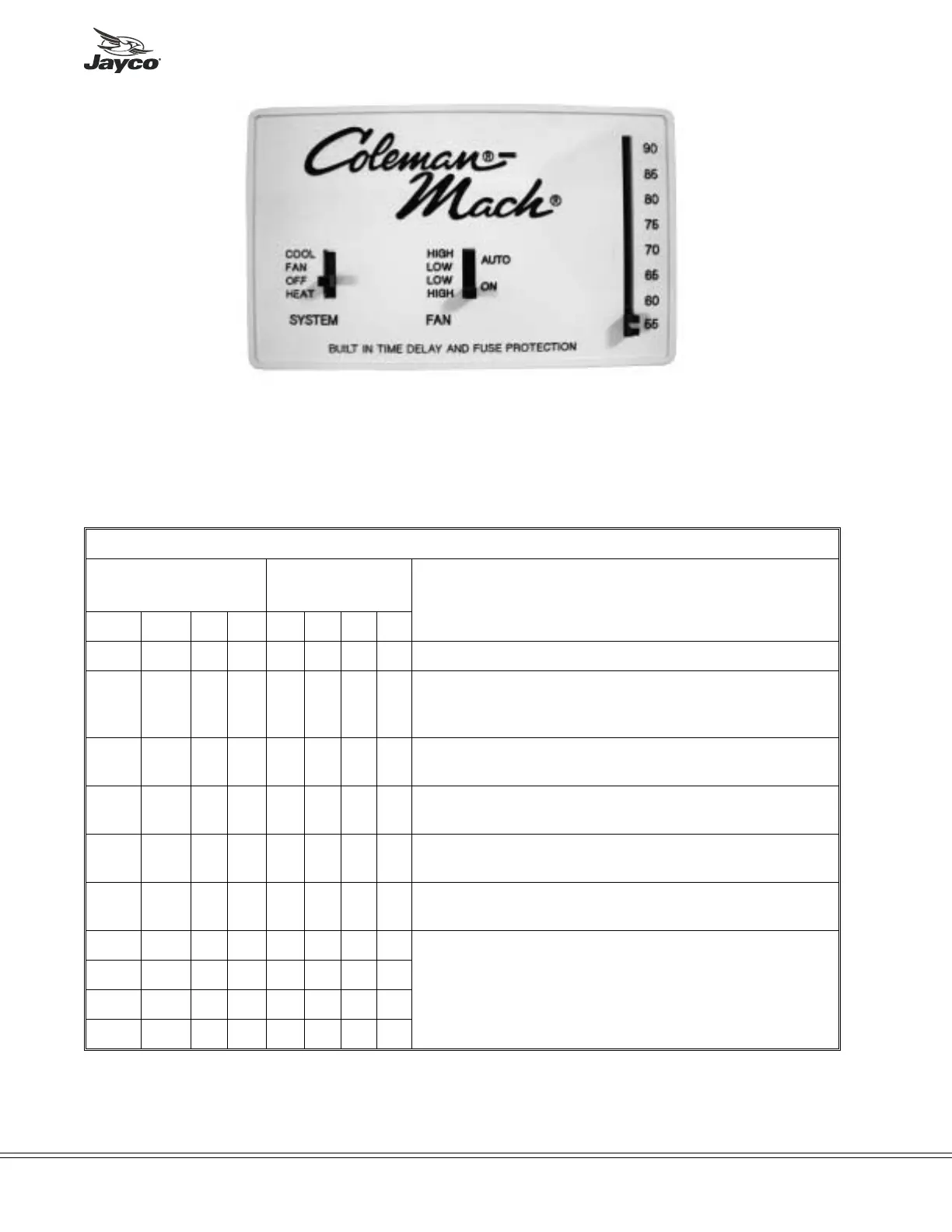

Fig. 5-17
