JAYCO TOWABLE SECTION 6 – ELECTRICAL SYSTEM
6-15
LED DECORATIVE LIGHT STRIPS (IF SO EQUIPPED)
Some models may include decorative LED light strips which may be installed on the
awning or on the front cap. When the awning light switch is turned on, these LED light
strips illuminate.
REPLACING LIGHT BULBS
Before replacing a bulb, be sure the light is off. Do not touch the glass part of the new
bulb with your bare fingers. The skin oil left on the glass will evaporate when the bulb
gets hot, the vapor will condense on the reflector and it will dim the surface.
Replacement light bulbs must be of the type, voltage and wattage listed on the lamp
fixture. Use of incorrectly sized bulbs can overload lam circuits and may create a fire
hazard by overheating the fixture.
COMMAND CENTER
The command center is typically located just inside the entrance door or in the living area
of the recreation vehicle. It contains switches and controls for electrical functions for the
RV. Depending on your model, the command center may be a panel complete with
switches, or it can be a group of switch pods mounted to a recessed panel inside a cabinet.
Some models may have the switches and controls mounted directly to the wall in the living
area or vicinity of the entrance door. In some cases, the systems monitor (which indicates
tank levels and battery charge) may also be included on this panel (refer to the Monitor
Panel section).

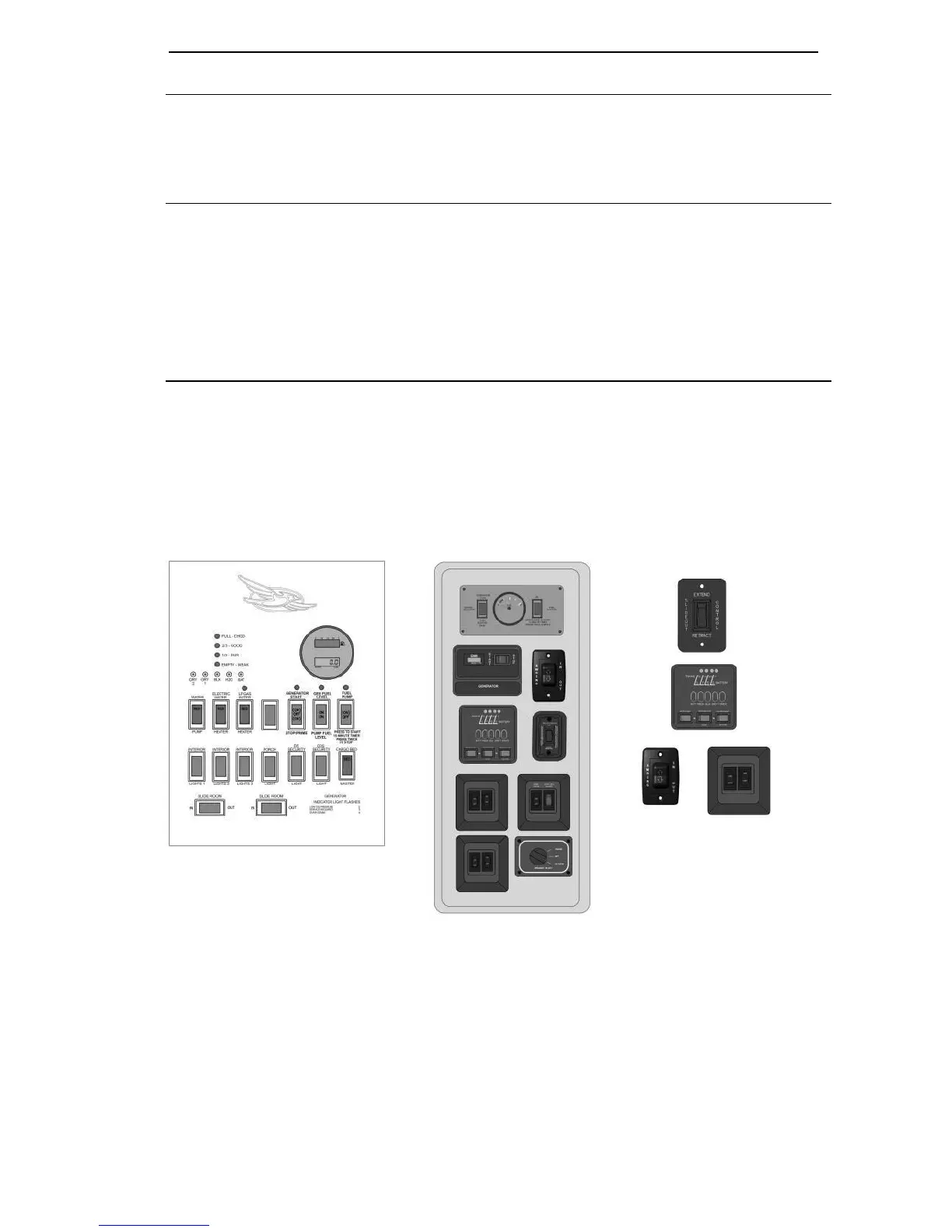

Command Center Panel:
Items found on this panel typically include (may vary by model):
Fuel gauge and hour meter with switches for fuel pump and fuel levels
Lighted red pump switch, lighted red water heater switches (electric & LP gas)
Generator start / stop switch
Tank heater switches
Light switches for porch lights, exterior security lights, interior lights, awning LED
lights, front cap LED accent lights
