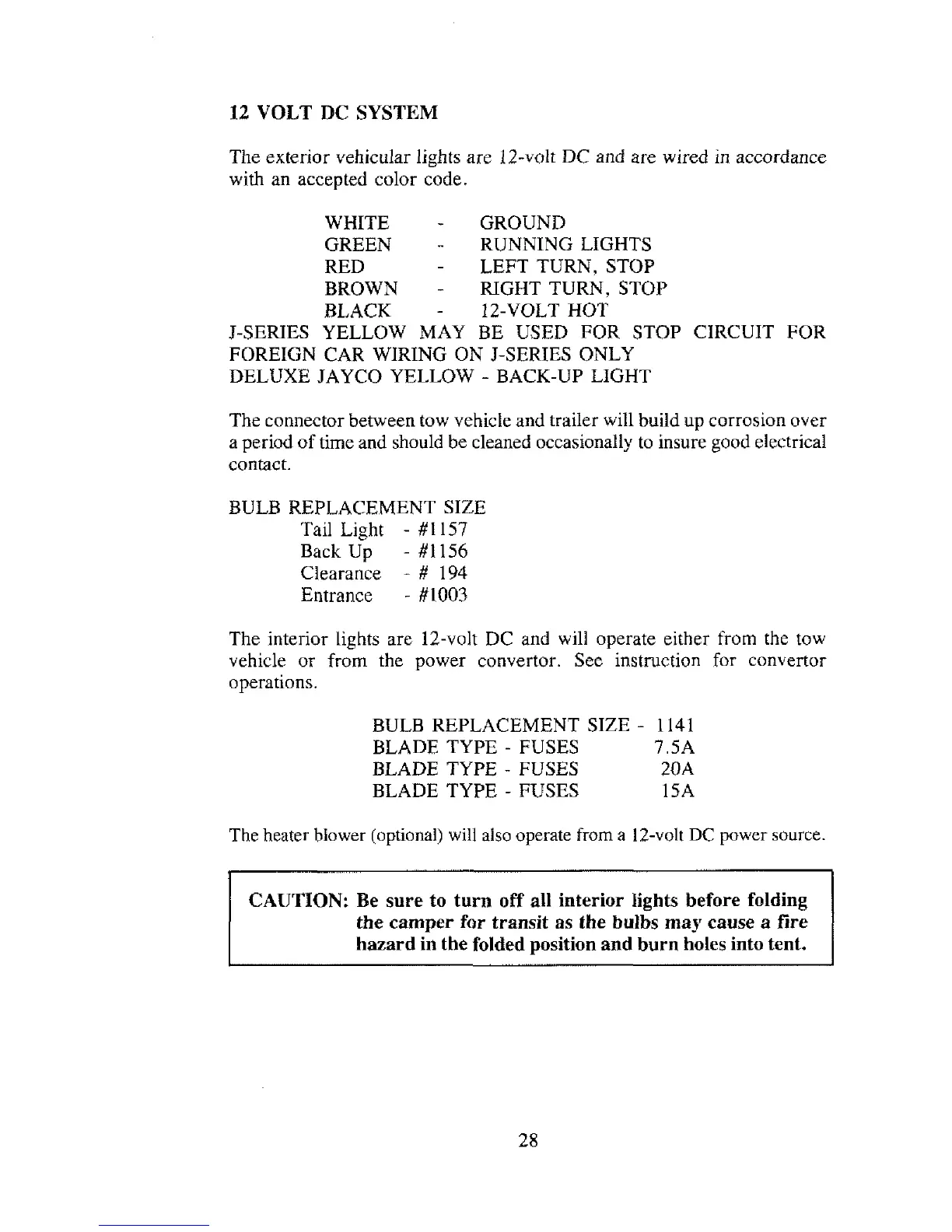

12
VOLT
DC
SYSTEM
The exterior vehicular lights
are
12-volt
DC
and are wired
in
accordance
with an accepted color code.
WHITE
-
GROUND
GREEN
-
RUNNING LIGHTS
RED
-
LEFT TURN, STOP
BROWN
-
RIGHT TURN, STOP
BLACK
-
12-VOLT
HOT
J-SERIES YELLOW
MAY
BE
USED
FOR STOP CIRCUIT
FOR
FOREIGN
CAR
WIRING
ON
J-SERIES
ONLY
DELUXE
JAYCO
YELLOW
-
BACK-UP
LIGHT
The connector between tow vehicle and trailer
will
build
up corrosion over
a
period
of
time
and should be cleaned occasionally to insure good electrical
contact.
BULB
REPLACEMENT SIZE
Tail
Light
-
#I157
Back
Up
-
#I155
Clearance
-
#
194
Entrance
-
#lo03
The interior
lights
are 12-volt
DC
and will operate either from the tow
vehicle or
from
the
power convertor.
See
instruction
for
convertor
operations.
BULB
REPLACEMENT SIZE
-
1141
BLADE
TYPE
-
FUSES 7.5A
BLADE
TYPE
-
FUSES
20A
BLADE
TYPE
-
FUSES
15A
The heater blower (optional)
will
also operate from
a
12-volt
DC
power
source.
CAUTION:
Be
sure
to
turn
off
all
interior lights
before
folding
the
camper
for
transit
as
the
bulbs
may
cause
a fire
hazard in
the
folded position
and
burn
holes into
tent.
