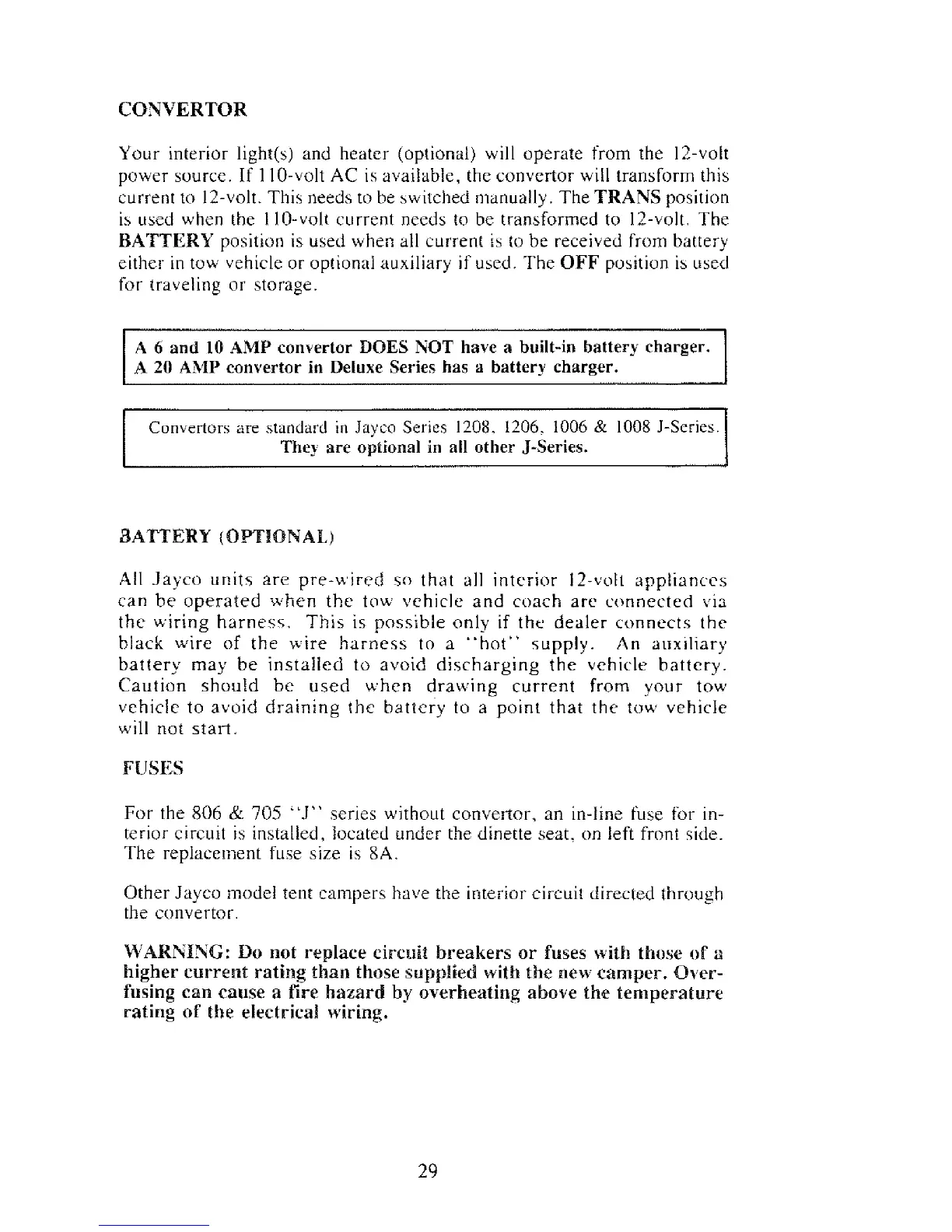

Your interior light(s) and heater (optional) will operate from the 12-volt
power source.
If
1
10-volt
AC
is available, the convertor will transform this
current
to
12-volt. This needs
to
be switched nianually. The
TRANS
position
is used when the
1
10-volt current needs to
be
transformed
to
17-volt.
The
BATTERY
position is used when all current
is
to
be
received from battery
either. in tow vehicle or optional auxiliary if
used.
The
OFF
position is
used
for traveling or storage.
A
6
and
10
AMP
convertor
DOES
NOT
have
a
built-in
battery
charger.
A
20
AMP
convertor in Deluxe
Series
has
a
battery
charger.
Convertors are
standard
in
Jayco
Series
1208,
1206.
1006
&
1008
J-Series.
They
are
optional
in
all
other
J-Series.
All
Jayco units are pre-wired
so
that all interior 12-volt appliances
can be operated
when
the
tow
vehicle and coach
arc
connected
via
the wiring harness.
This
is possible only if the dealer connects
the
black wire
of
the
wire
harness to
a
"hot"
supply.
An auxiliary
battery
may be installed to avoid discharging the vehicle
battery.
Caution should be
used
when drawing current from vour
tow
vehicle to avoid draining
the
battery to
a
point that the tow vehicle
will
not
star-.
FUSES
For the
806
&
705
"J"
series without convertor,
an
in-Iine
fuse
for in-
terior circuit is installed, Iocated under
the
dinette seat,
on
left front
side.
The replacement
fuse
size is
8A.
Other Jayco
model
tent campers
have
the interior circuil
directed
through
the convertor.
WARNIKG:
Do
not
replace
circuit
breakers
or
fuses
with
those
of a
higher
current sating than
those
supplied
with
the
new
camper.
Over-
fusing
can
cause
a
fire
hazard
by
overheating
above
the
temperature
rating
of
the
etectrical
wiring.
