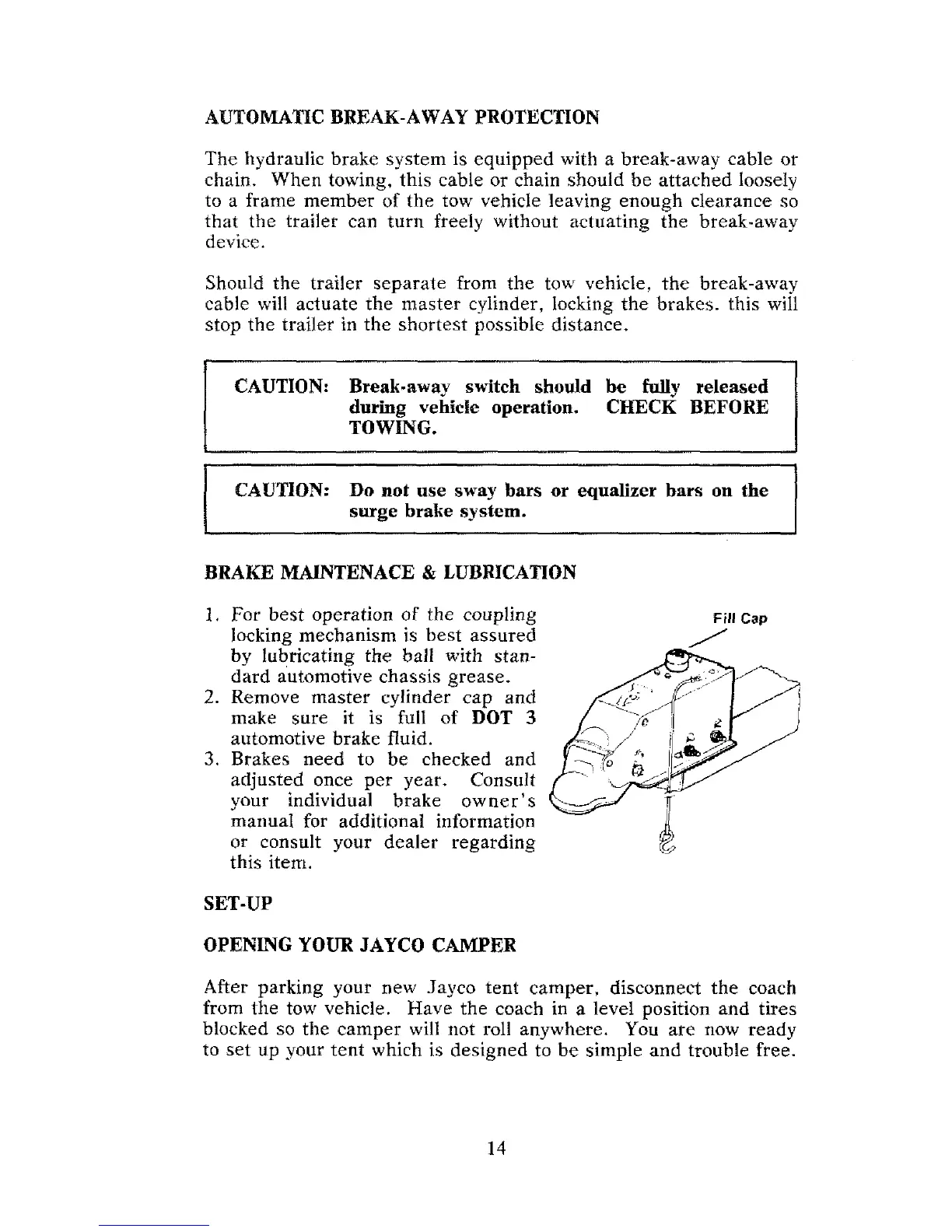

AUTQMATIC
BREAM-AWAY
PROTECTION
The hydraulic brake system is equipped with a break-away cable or
chain. When towing, this cable or
chain
should
be attached loosely
to a frame member of the tow vehicle leaving enough clearance so
that the trailer can turn
freely
without actuating the break-away
device.
Should the trailer separate
from
the tow vehicle, the
break-away
cable will actuate the master cylinder, locking the
brakes.
this will
stop the trailer in the shortest possibIe distance.
CAUTION:
Break-away switch
should
be
fully
released
during
vehicle
operation.
CHECK
BEFORE
TOWING.
CAUTION:
Do
not
use
sway bars
or
equalizer
bars
on
the
surge
brake
system.
BRAKE
MAINTENACE
&
LUBRICATION
1.
For best operation
of
the
coupling
Fill
Cap
locking mechanism
is
best assured
by
lubricating
the
ball
with stan-
/
dard automotive chassis grease.
2.
Remove master cylinder cap and
make sure
it
is fulI of
DOT
3
automotive brake
fluid.
3.
Brakes
need
to
be checked
and
adjusted once per
year.
Consult
your individual brake owner's
manual for additional information
or consult your dealer regarding
this item.
SET-UP
OPENING
YOUR
JAYCO
CAMPER
After parking your new Jayco tent camper, disconnect the coach
from
the
tow
vehicle. Have the coach
in
a level position and tires
blocked
so
the camper will not roll anywhere. You
are
now ready
to set
up
your tent which is designed to
be
simple
and
trouble
free.
