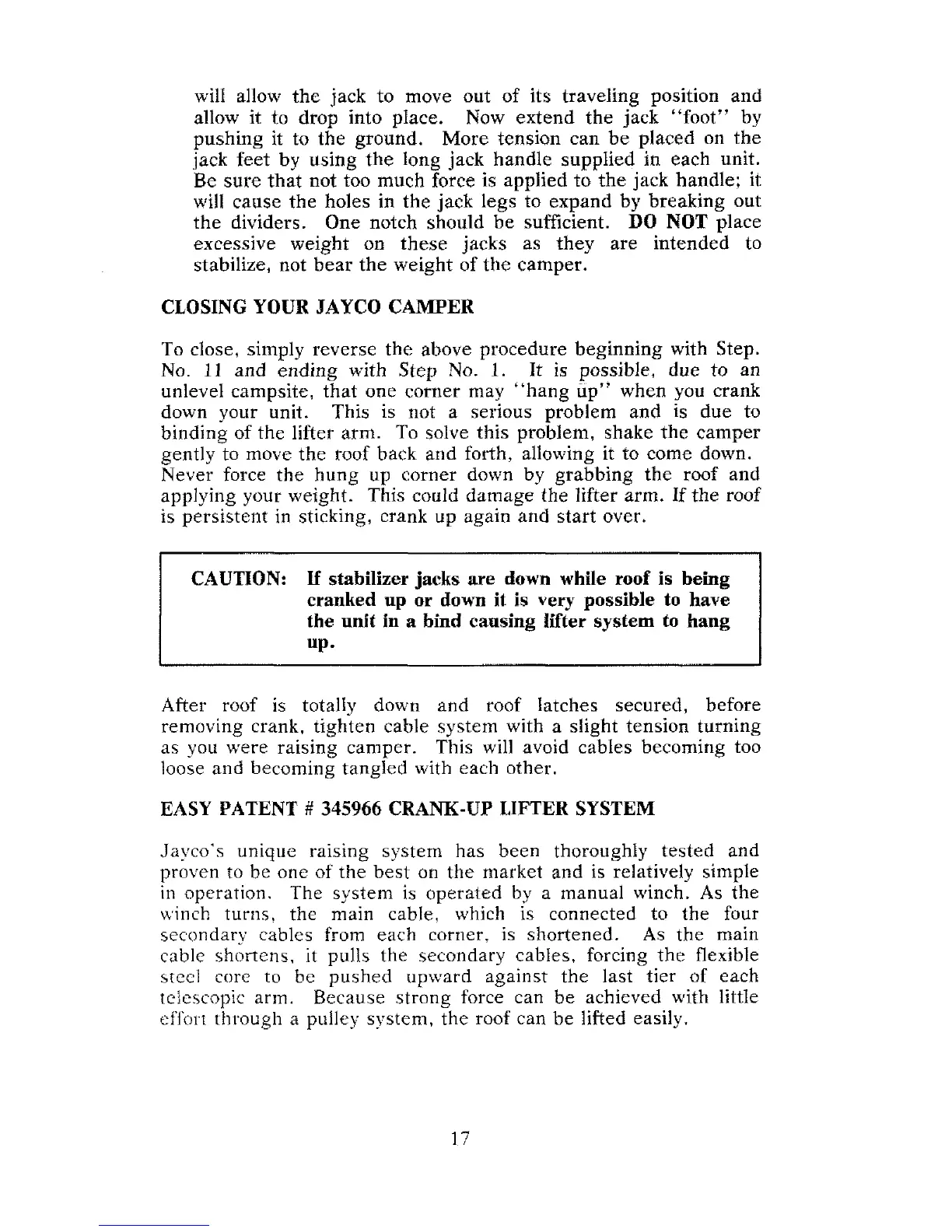

will allow the jack to move out of its traveling position and
allow it to drop into place. Now extend the
jack
"foot" by
pushing it to
the
ground. More tension can be placed on the
jack feet
by
using
the long jack handle supplied in each unit.
Be
sure
that not too much force
is
applied to the jack handle; it
will
cause the holes in
the
jack legs to expand by breaking out
the dividers. One notch should be sufficient.
DO
NOT
place
excessive weight on these jacks as they are intended to
stabilize, not bear the weight of the camper.
CLOSING
YOUR
JAYCO
CAMPER
To close, simply reverse the above procedure beginning with Step.
No.
11
and
ending
with Step No.
1.
It
is possible, due
to
an
unlevel campsite, that one corner may "hang
up"
when you crank
down your unit.
This
is not a serious problem and
is
due to
binding of the lifter arm. To solve this problem, shake the camper
gently to move the roof back and forth, allowing
it
to come
down.
Never force the hung up corner down by grabbing the roof and
applying your weight.
This
could damage the lifter arm.
If
the roof
is persistent in sticking, crank
up
again and start over.
CAUTION:
If
stabilizer
jacks
are
down
while
roof is
being
cranked
up
or
down
it
is
very
possible
to
have
the
unit
in
a
bind causing Xifter
system
to
hang
UP.
After roof is totally down and roof latches secured, before
removing crank, tighten cable system with a slight tension turning
as you were raising camper. This will avoid cables becoming too
loose
and
becoming tangled with each other.
EASY
PATENT
#
345966
CRANK-UP
LIFTER
SYSTEM
.Jaycoqs unique raising system has been thoroughly tested and
proven
lo
be one of the best on the market and is relatively simple
in
operation. The system
is
operated by
a
manual winch. As the
winch turns, the main cable, which
is
connected to the four
secondary cables from each corner,
is
shortened.
As
the
main
cable shortens,
it
pulls the secondary cables, forcing
the
flexible
srccl
core
to
be
pushed upward against the last tier of each
tcicscopic
arm.
Because strong force can
be
achieved with little
effort
through
a pulley system, the roof can be lifted easily.
