The bedroom electric slide room system is
located under the queen bed. It can be
accessed by removing the screws holding the
wooden paneling in place. Use care not to
obstruct the slide room system when using the
under bed storage area.
PRIVACY DRAPE INSTALLATION
Remove the privacy drape from the storage
bag, which you should find in the storage area
under the mattress platform in the bedroom.
1. Starting at the driver’s side of the cab,
attach the black plastic hook to the loop
attached to the wall behind the driver’s
seat. Make sure that the side of the drape
with Velcro® is facing the motorhome
windshield.
2. Pull the drape toward the front of the RV
and behind the driver’s side sun visor.
Open the sun visor against the windshield
to hold the drape in place.
3. Proceed across the windshield to the
passenger side, again placing the drape
behind the sun visor and opening the sun
visor to hold the drape in place.
4. Attach the black plastic hook at the
passenger’s side of the cab to the loop
attached to the wall behind the
passenger’s seat.
5. Attach the Velcro® at the top edge of the
drape above the driver’s and passenger’s
doors to the corresponding Velcro on the
roof of the motorhome cab.
6. The Velcro® at the bottom corners of the
privacy drape under the black plastic
hooks should also be attached to the
Velcro on the walls of the motorhome in the
corresponding locations.
Make sure to remove your privacy drape and
place it in storage before traveling.
CABLE TV, SATELLITE DISH TV
RG-6 coax runs from the TV antenna, exterior
cable TV connector and satellite dish TV wiring
to a wall plate near the dedicated television
space.
The television entertainment system will not
run cable TV or satellite dish TV on one
television set, and local stations off the other
set without customer modification.
Cable TV
Connect the external cable TV source (using
customer supplied RG-6) to the RV cable
connection port. Turn ON the TV for picture
and sound.
Satellite Dish TV
Your satellite provider can help you ensure
safe installation and proper equipment. Once
your satellite dish and receiver are installed
and operational, turn ON the satellite dish
control switch (located behind the front TV
cabinet door), then turn ON the TV for picture
and sound.

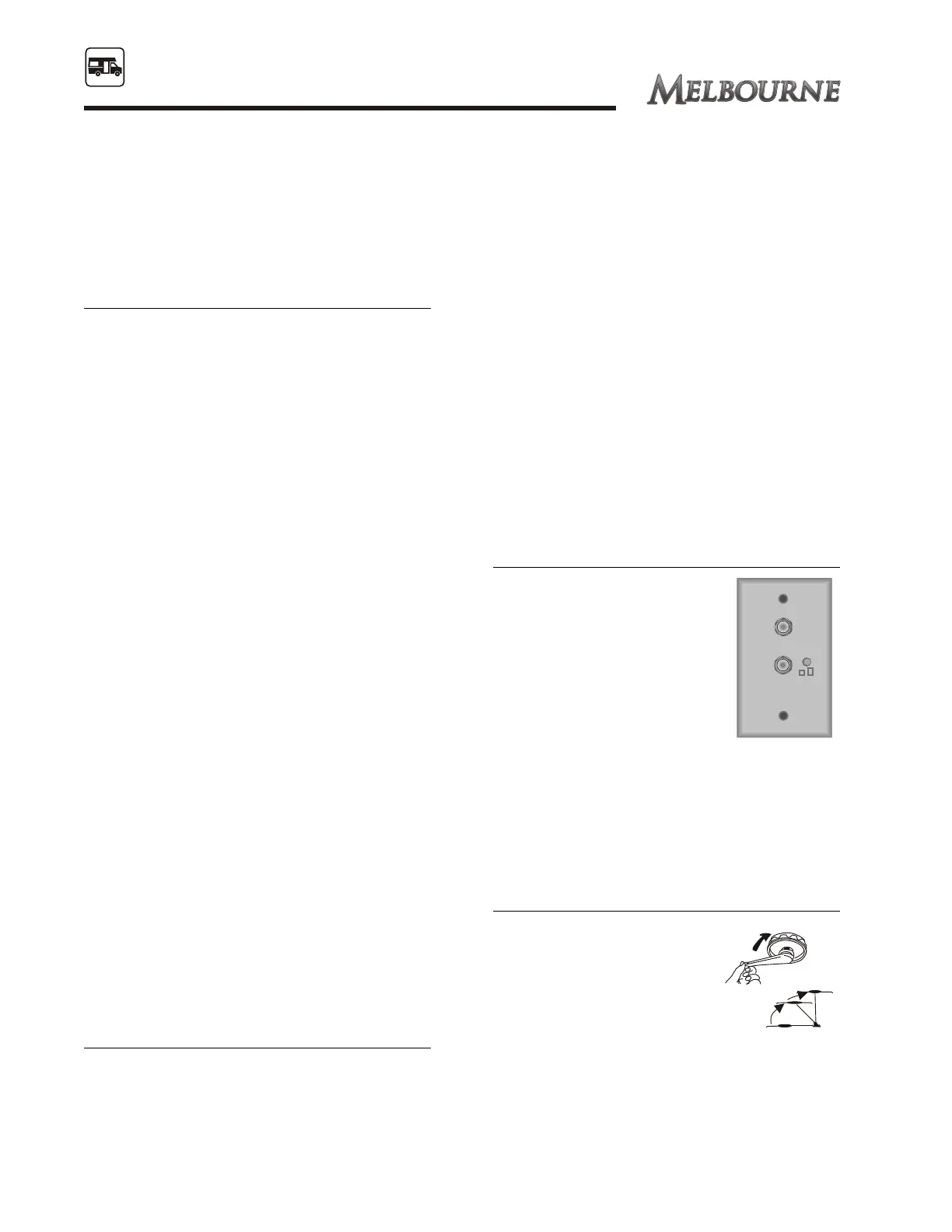

TV POWER SUPPLY
For good station reception,
the TV power supply must be
turned ON to view local
television stations. Turning
the TV power supply ON
sends 12-volt DC through the
cable to the TV roof antenna.
The voltage energizes the
transistors in the antenna
head amplifier. The TV signal
then comes down the cable to
the outlets.
Turn the TV power supply OFF when using a
VCR or DVD.
TELEVISION ROOF ANTENNA
To raise the TV antenna to
the operating position turn
the antenna elevating crank
clockwise in the UP
direction until some
resistance to turning is
noted.
On amplified models, 12-volt DC power is
required (refer to the OEM operator’s manual).
After the antenna is in the full UP position, pull
down on the round knob with both hands until it
72
SECTION 8
CAMPING & OPERATING
ONON
OFFOFF
AUX/SATAUX/SAT
TVTV
WINEGARDWINEGARD
Fig. 8.2
TV Power
Supply
Fig. 8.3
