12.INSTALLATION PROCEDURE
Do not allow people to walk under or around the door during the installation process as
serious injury can occur.
NOTE: The opener can be installed on either side of the door. The following instructions are
for RIGHT HAND INSTALLATIONS (as illustrated i.e. inside the garage looking out). For left
hand installations, reverse the instruction terminology (eg LEFT for RIGHT etc).
Preparation:

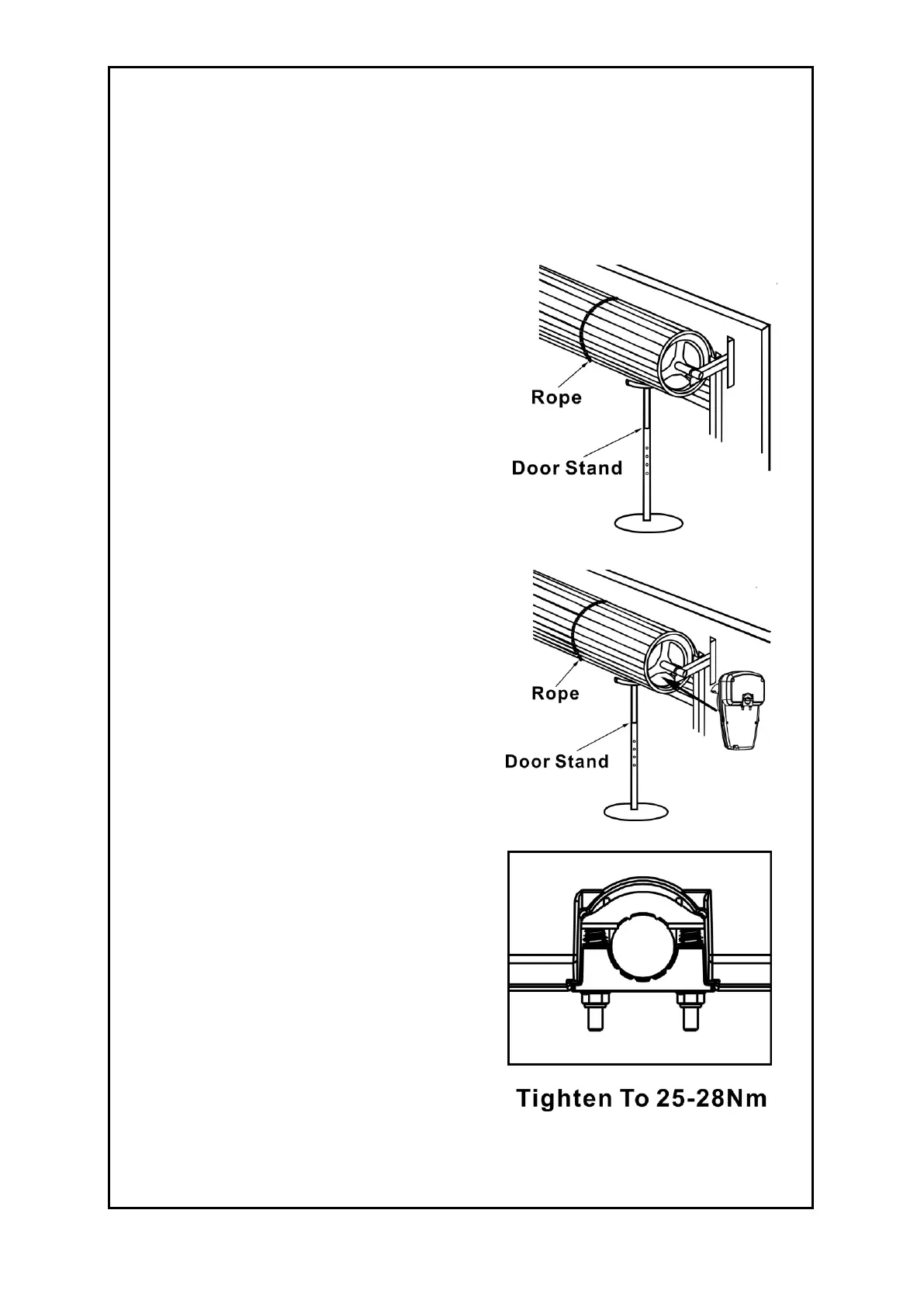

• Place the opener in manual release mode (refer
section 8).
• Open the roller door fully. For safety, tie a rope
around the door.
• Ensure the door axle U-BOLT and door mounting
bracket on the left-hand side (non-opener side) are
securely fastened.
• Support the door with a door stand or similar
device to safely support the door.
• Mark the position of the door shaft on the
right-hand door bracket (for reassembly purposes).
• While the door is supported, remove the right-hand
axle U-Bolt and door mounting bracket from the wall.
Install the opener:
• Slide the opener over the door axle and engage
the drive legs into the door drum wheel, either side
of a spoke. Extensions may be necessary (refer
section 10).
• Refit the door mounting bracket to the wall. If the
door bracket needs to be relocated due to opener
width refer to section 3.
• Clamp the opener on the door axle and door
bracket in the marked position using the clamp
assembly supplied (tighten to 25 – 28 Nm).
• If side room exceeds 95mm clamp independently to
the door axle as illustrated in section 3.
• Remove all ropes and the support stand.
• Check the operation of the door in manual mode by
raising and lowering by hand. It should operate
smoothly without sticking or binding. The disengage
handle should already be attached less than 1.8m
above the floor (refer section 4 and section 7).
Connect the power:
• Position the power cable away from the door curtain and any moving parts.
• Plug the opener into a nearby power point and turn ON.
