13. BASIC FUNCTION SETTING AND APPLICATION
13.1 Matching the receiver and transmitter

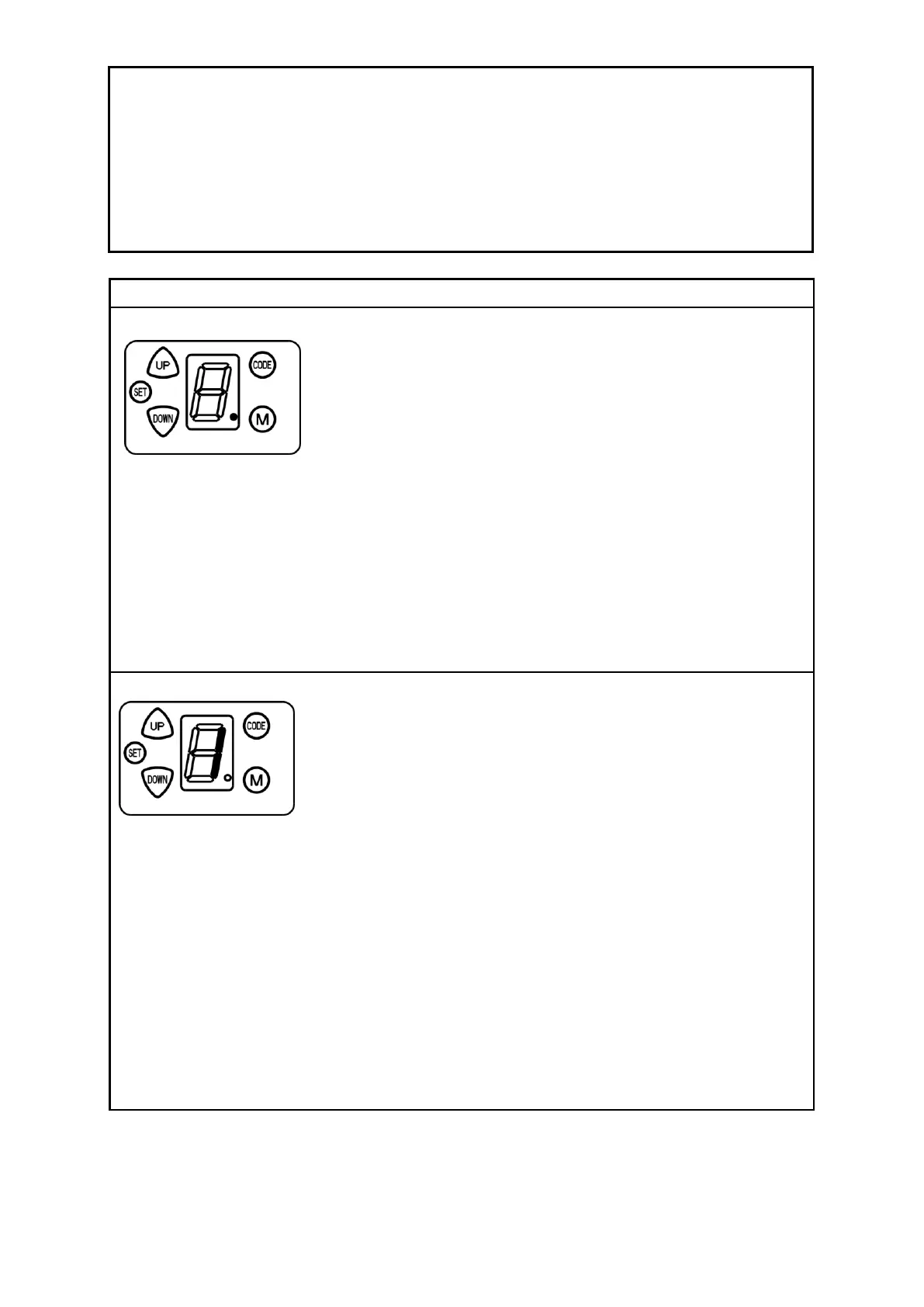

Coding Transmitters:
Press and hold “Code” button for 1 second until the LED dot
illuminates. Press desired button on transmitter once, the dot will
extinguish, press the same transmitter button again and the dot will
flash fast for 8 times, and then return to standby mode. The transmitter
is now coded into the receiver.
Repeat the above steps to code more transmitters. The receiver has the capacity to store 20
transmitters.
If the led display flashes “F” and returns to standby mode (after you have pressed the Code
button), this indicates that the memory storage is full (20 transmitters). Follow the steps below to
delete all transmitters that are stored in the receiver memory: Press and hold “CODE” button for
more than 8 seconds until the LED flashes “C”, all the stored codes are deleted.
NOTE：If a transmitter is not paired within 20 seconds, it will return to standby mode automatically.
13.2 Travel limit setting Opening & closing force self-learning
Press and hold “SET” button for 3 seconds until the LED flashes “1”.
Press “SET” button again for 1 second. “1” should now display as steady
(not flashing).
Adjust the up limit by pressing “UP” button.
Fine-tune by pressing “UP” or “DOWN” button to determine the final up
limit position (the LED flashes “n” or “u” during opening or closing), then press “SET” button, the
display will now show “2” automatically.
Adjust the down limit by pressing “DOWN” button.
Fine – tune by pressing “UP” or “DOWN” button to determine the final down limit position (the LED
flashes “n” or “u” during opening or closing), then press “SET” button.
If the opener stops operating and the LED flashes “H” or “C”, this indicates there’s no hall signal or
the opener is overloaded. Call a Professional Technician as the door may require maintenance.
The opener will operate a cycle automatically to remember the limit positions and the original
opening & closing force, then return to standby mode.
During learning, if the door stops unusually, and flashes “Ξ”, “C”, “O”. “L” for 5 seconds, this indicates
there’s no hall signal, overload, overtime or the wrong limit setting.
• The opener courtesy LEDs should turn ON.
• The opener must now be programmed for:
1.DOOR TRAVEL LIMITS (Section 13.2)
2.RIGHT- OR LEFT-HAND OPERATION (Section 13.6)
3.FORCE SETTING (Section 13.3)
