Parts Description l JB Pipepuller
10
JB Pipepuller Base Unit with Heavy Duty Strut
(Used on Reinforced Concrete Culverts 4’-14’ Tall)
PARTS DESCRIPTION Continued

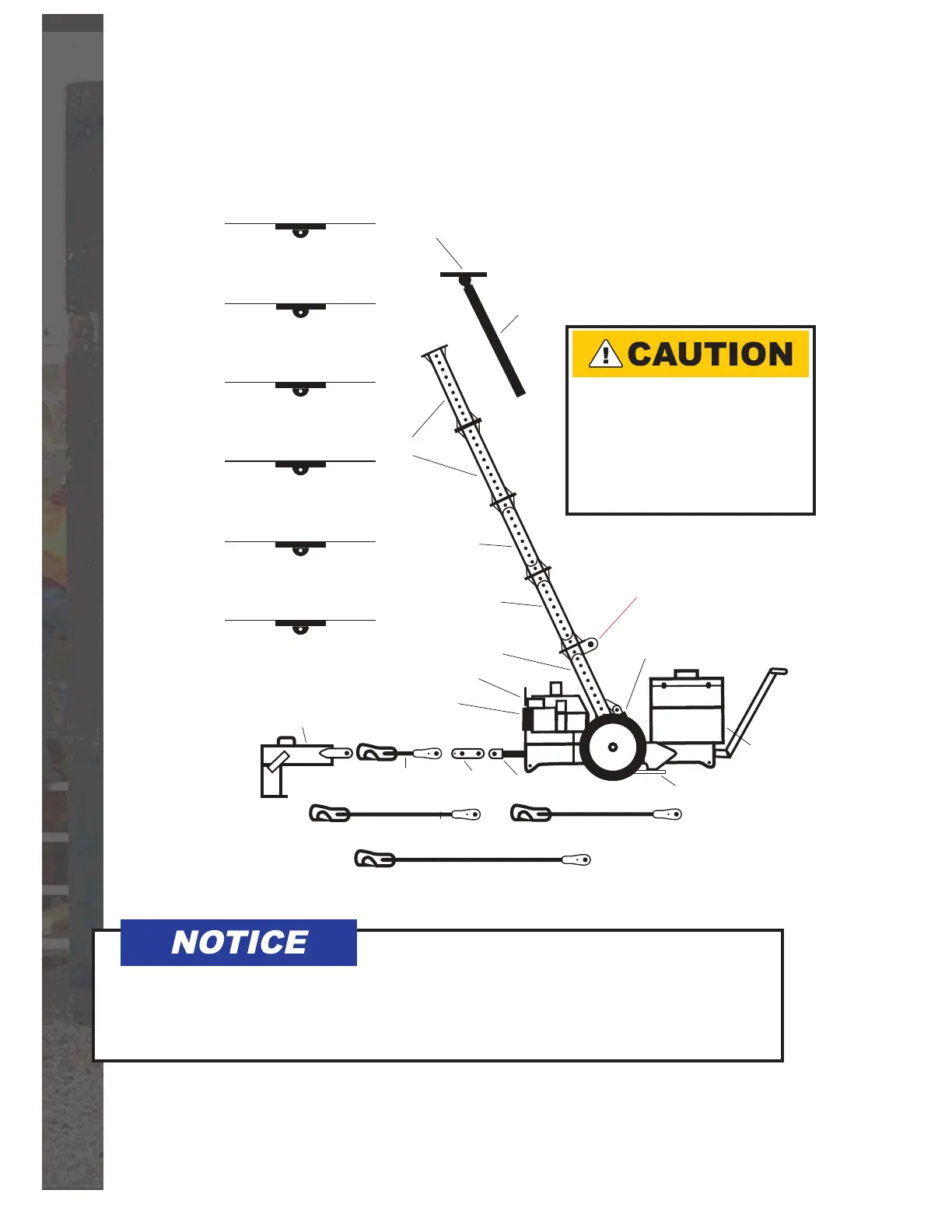

This parts diagram shows the optional heavy duty strut and strut extension.
If you are pulling pipe 10 feet or more in inside height, the heavy duty strut
and strut extension are required.
14’ Tall
12’ Tall
10’ Tall
8’ Tall
6’ Tall
4’ Tall
Upper Shoe
Inner Post
Strut Extensions
Heavy Duty
Strut Extension
Heavy Duty Strut
Selector Valve
Power Unit
Pull Cylinder
Key LinkShort Link
J-Hook
Medium J-Link
Long J-Link
Lower Shoe
Battery
Strut Cylinder
Lift Here
Medium J-Link
Heavy Duty
Strut Extension
n
Always bolt heavy duty strut
extentions first to lower strut.
n
ALL Strut Extensions must be
bolted on with grade 8 bolts,
nuts and lock washers.
Torque at 100 ft. lbs.
To Next Page
