OPERATION
Setting up the JB Pipepuller
The following steps will outline the steps necessary to set up the
JB Pipepuller to pull reinforced concrete pipe. For additional instruction,
a detailed training video is also available at www.jbpipepuller.com.
Important!
The wheel adjustment procedure should be followed depending on the
type of pipe you will be working with.
Wheel Adjustment Procedure
While the pipe puller is mounted on the pallet or supported by other
means, with the weight off of the wheels—
Remove the two half inch bolts and loosen the center bottom bolt. Raise
or lower the wheel to the proper setting then re-insert the two bolts to the
new setting and tighten all three bolts. Torque bolts at 100 ft. lbs.
This procedure is required for both wheels.
Setting Inside Height Pipe Type
of Culvert
A 48” Round
B 54”-66” Round
C 72”-84” Round
D 96” Flat Bottom Box

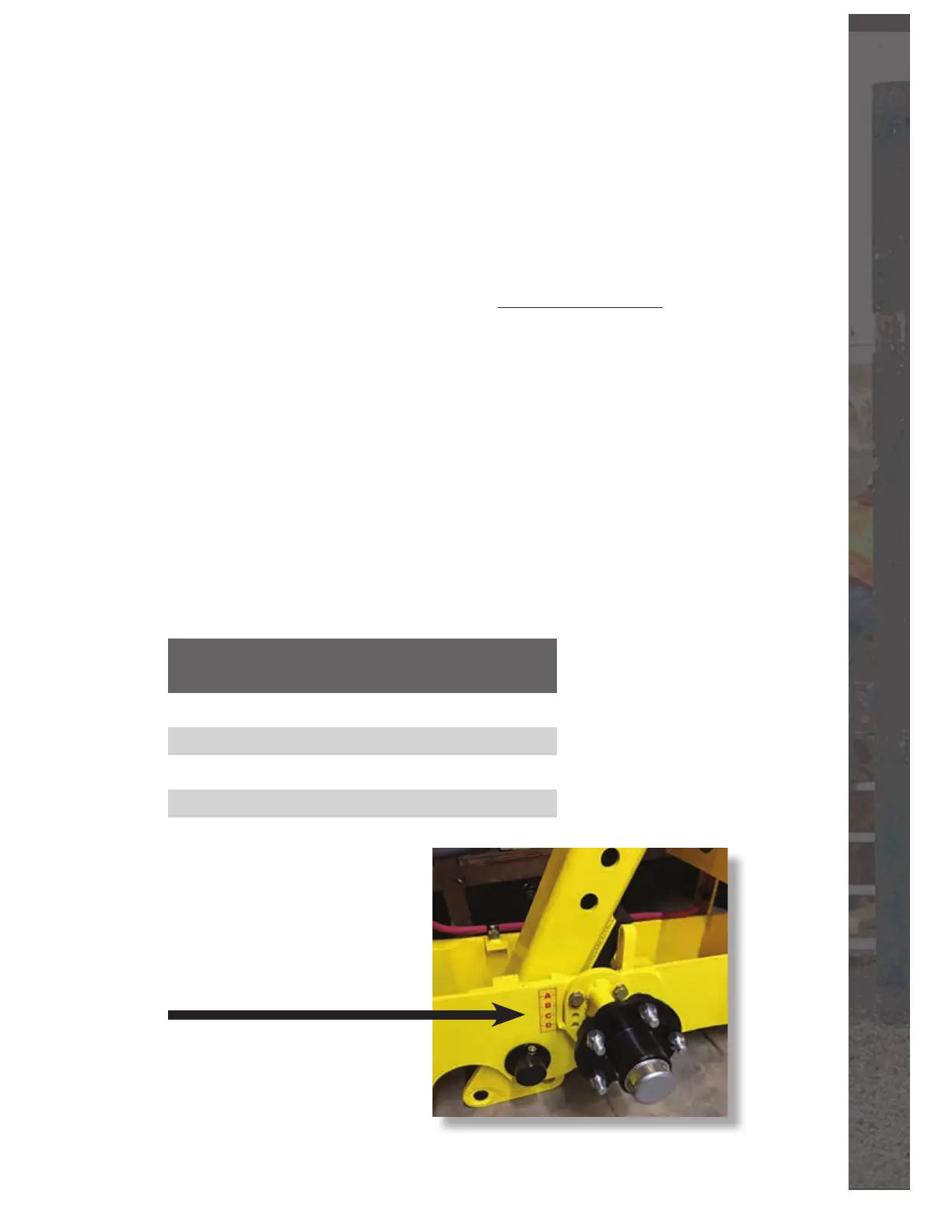

Shown here is an example
of the wheel adjustment settings
with the wheel removed.
