STEP 2
:
J-Link & J-Hook Selection
Next you need to select the proper length J-Link. Refer to the J-Link page
for proper selection. There is also a J-Hook reference sheet in this manual.
The idea behind this step is to only take the necessary J-Link and J-Hook
components with you into the culvert. Also, it is easier to ensure the key
link is installed on the end of the pulling cylinder before placing the puller
into the culvert.

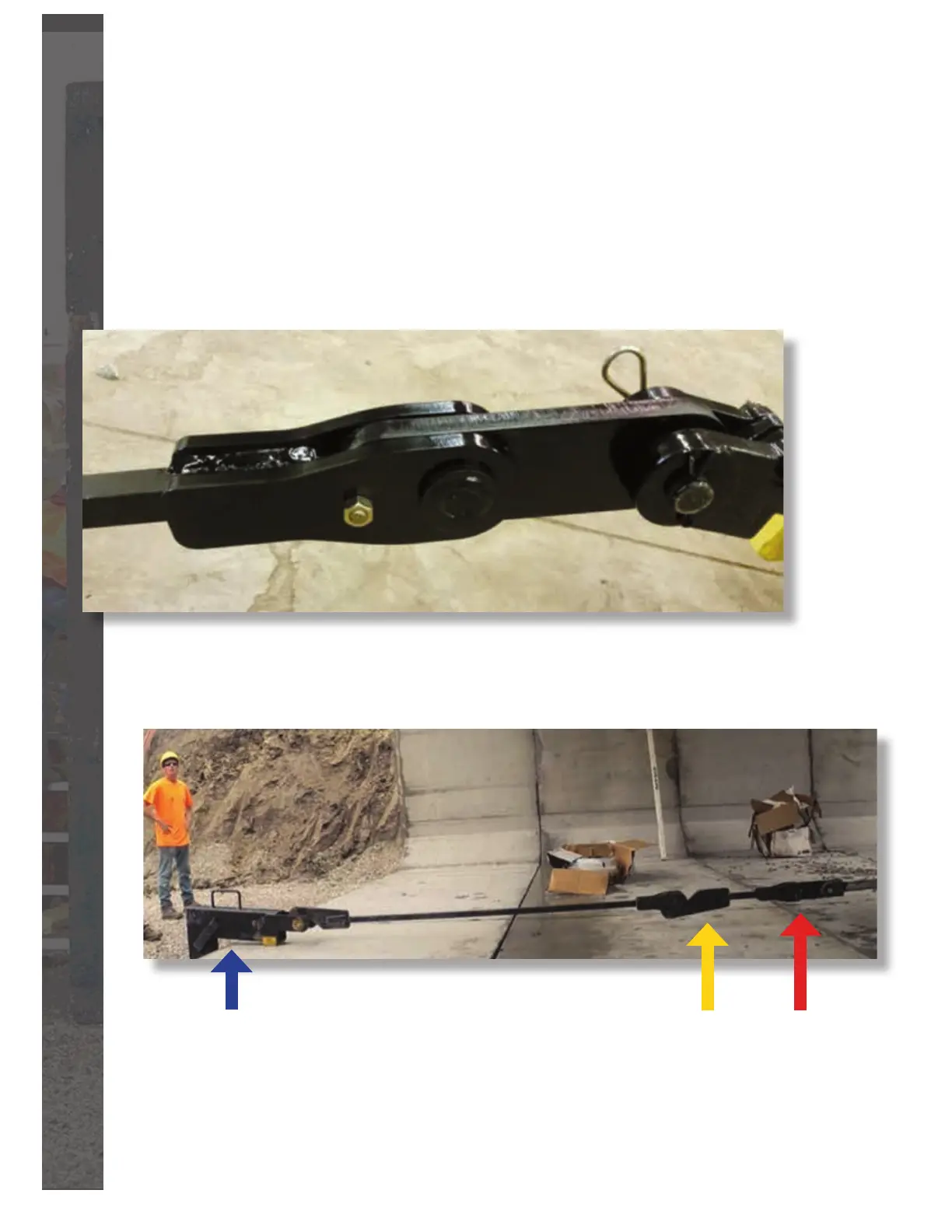

The blue arrow points to a properly placed J-Hook.
Note the yellow shim under the back of the hook
to maintain parallel pulling force.
The red arrow indicates the key link.
The yellow arrow shows the short J-Link
positioned with the hook opening facing up.
Operation l JB Pipepuller
14
OPERATION Continued
Shown above is the key link which attaches to the pulling cylinder
on the right and a J-Link section on the left.
