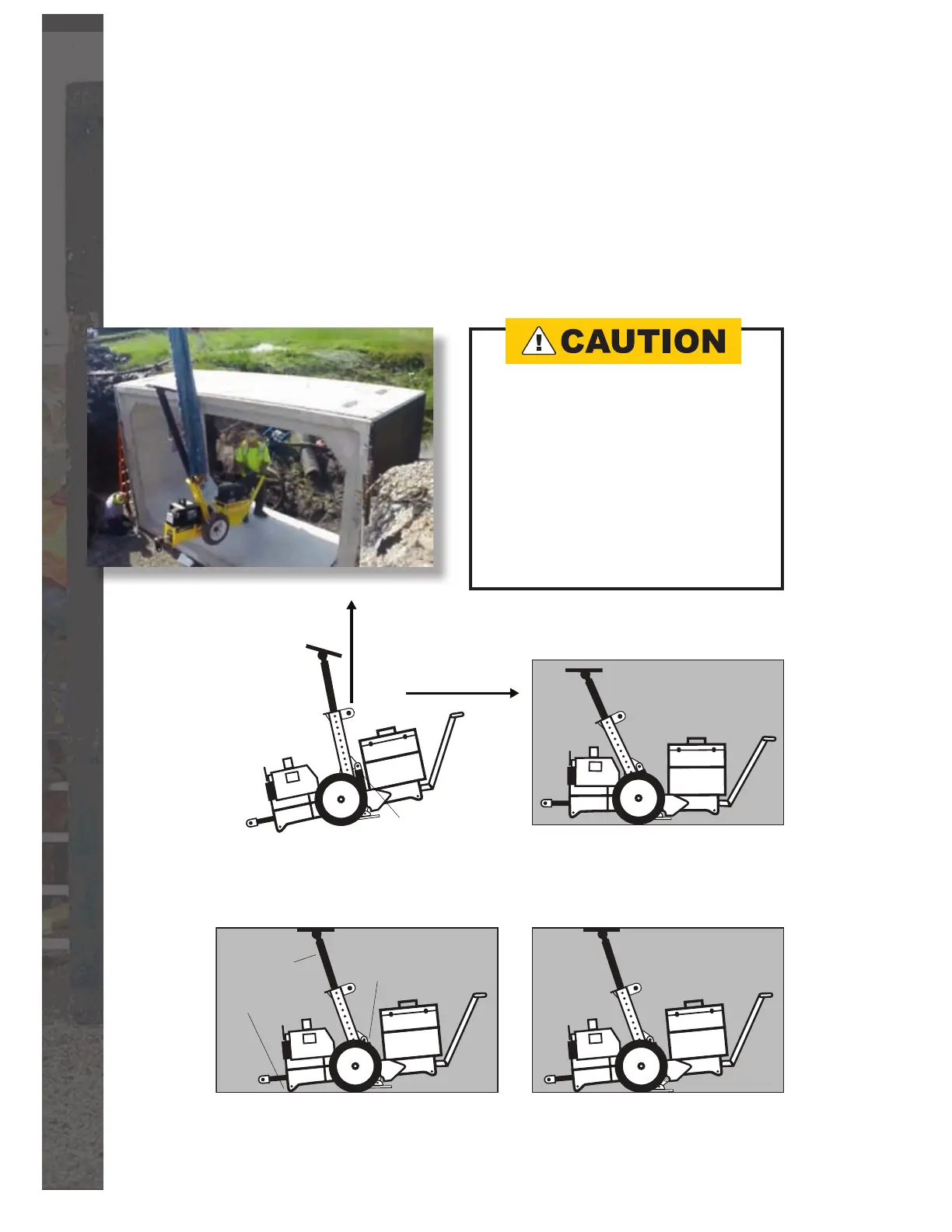

STEP 4
:
Lower Puller into Culvert
The lower shoe must be in the up position before placing the pipepuller
into the culvert. With the pipepuller in transport position, connect a properly
sized sling to the lifting ears and gently lower the pipepuller into the culvert
facing the direction the culverts are to be pulled. Use the handlebars to
guide the pipepuller into the culvert as it is being lowered.
Operation l JB Pipepuller
16
OPERATION Continued
NEVER for ANY reason
place yourself or any body
part under any object be-
ing lifted overhead. Doing so
risks serious injury or death!
Crane controls and hydraulic
systems can fail even when
the equipment is not running!
Tip Front End to Floor
Push Strut
into ceiling
and activate
hydraulics
Cylinder needs to be closed
before setting the strut
to ceiling
In Position to Set
Set and Ready to Pull
Fully extend the strut cylinder
when setting the Strut.
Pull into Culvert
Cylinder Closed
Transport Position
