JBH D09 - Controller

CONTROLLER
The D09 / D09B / D09C / D09D / D09E Power Wheelchair is equipped with a joystick
style controller. Detail functions as shown:
Operate the wheelchair slowly and at an even speed.
Stop often and check to make sure your path is clear of obstacles.
Take some time in a safe, controlled environment to learn the operation of controller,
the speed and the maneuverability of wheelchair.
When turning, reduce your speed, which will help you avoid any potential tilting or tip-
ping of wheelchair.
Be sure to adjust the speed depending on your environment.
To slow down, slowly bring the joystick back toward the initial position.
To stop, just bring the joystick back to the initial position.
Use extra care when you drive the D09 / D09B / D09C / D09D / D09E in reverse. You
may lose control or fall if one of rear wheels hits an object. When operating in
reverse:
◎ Controller and Driving Tips
A.
B.
1.
2.
3.
4.
5.
6.
21

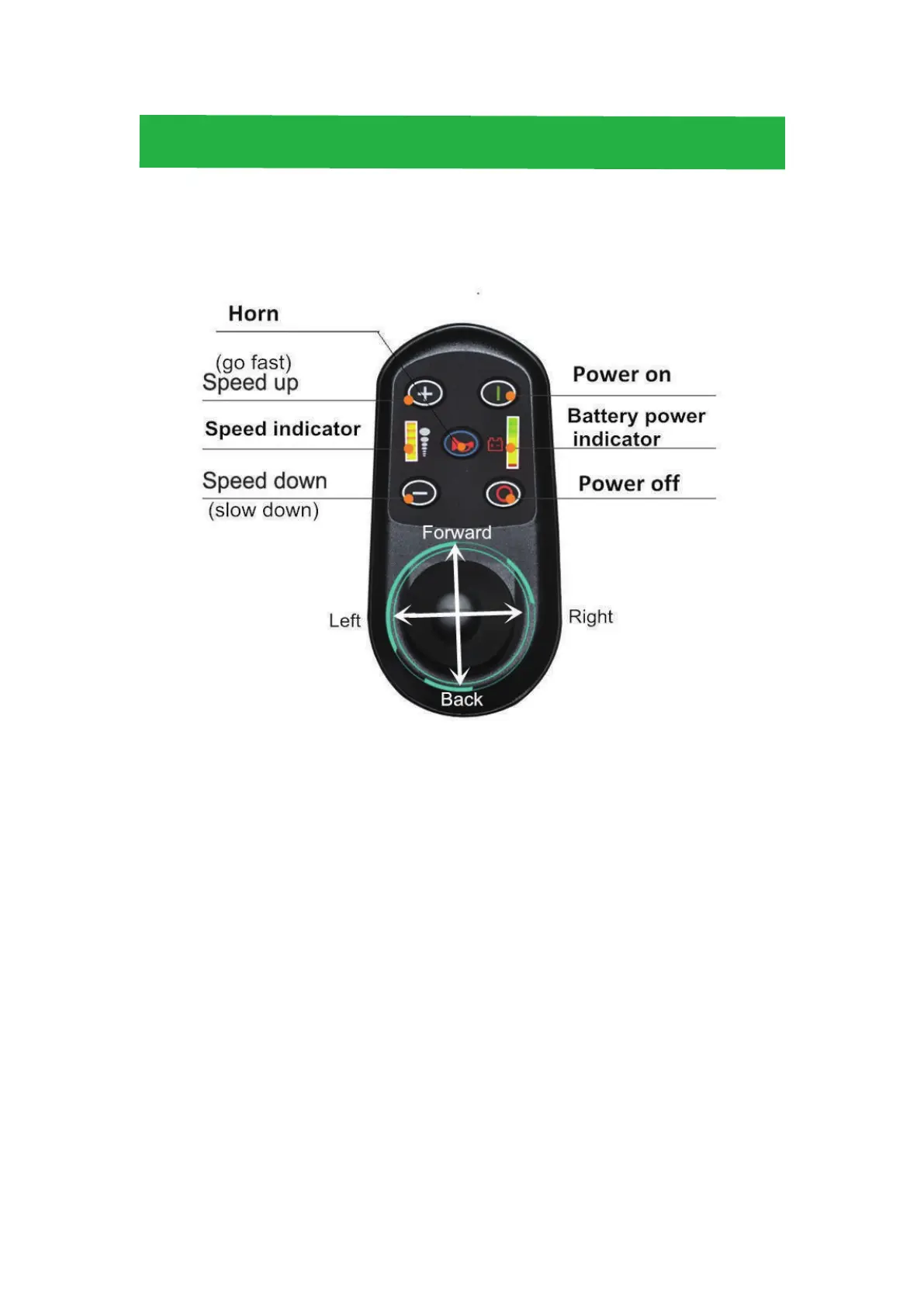

Photo 19. Controller
