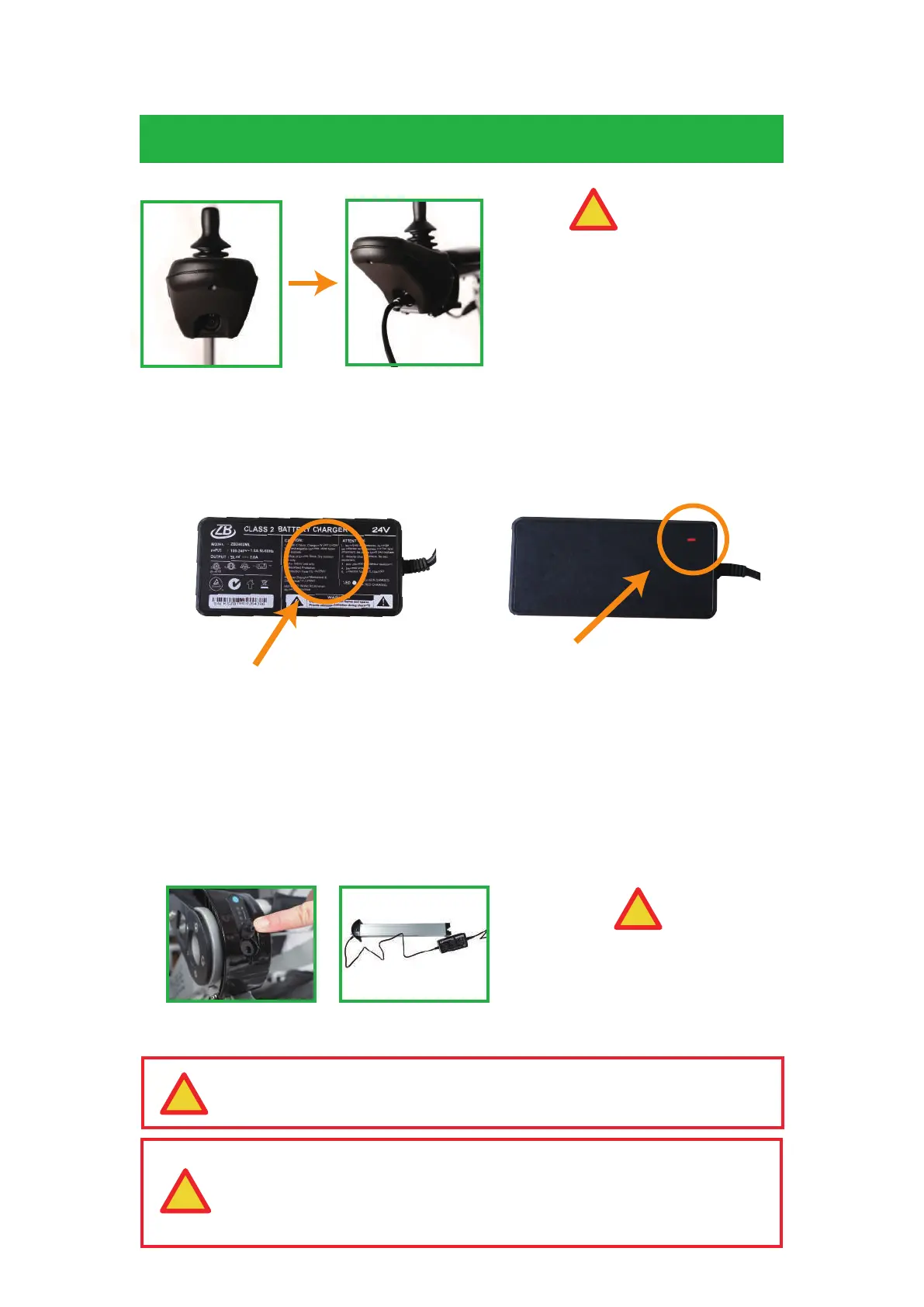

CHARGING BATTERIES
Caution
!
Do not charge continuously over 6
hours through charging port of con-
troller to prevent over charging while
two batteries are inserted into both
sides of frame. Never charge over 3
hours when it is only one battery in
either side of frame.
Allow your wheelchair to charge for 6 hours or when the light on the charger turns green,
which means your batteries are full charged.
Should you require them, the lights and what they mean are located on the back of the
charger.
3.
4.
Turn off the main power.
ā Second Charging Method:
1.
2.
3.
Flip open the charger port protector on the front of battery.
Use the secondary charger pigtail to adapt the battery charger to plug into the battery directly.
Caution
!
Keep charging time of single
battery in 3 hours when it
comes to off board charging
to avoid over charging.
Caution
Caution
!
Immediatly unplug charger from power source as soon
as indicating light on charger turns green.
No operation of wheelchair allowed while it is in thepro-
cess of charging battery. It is required to unplug charger
from power source prior to operate wheelchair.
Charging cycles is 500 times for single battery life extend.
!
Charger light
Light should come on after plugging in
the charger.
GREEN colour indicates fully charged.
RED--battery is charging.
Front
Back
Definition of what the light colour mean.
23
Photo 20. Charging Port
Photo 21. Charging Batteries
