JBL 4400A Series User Manual

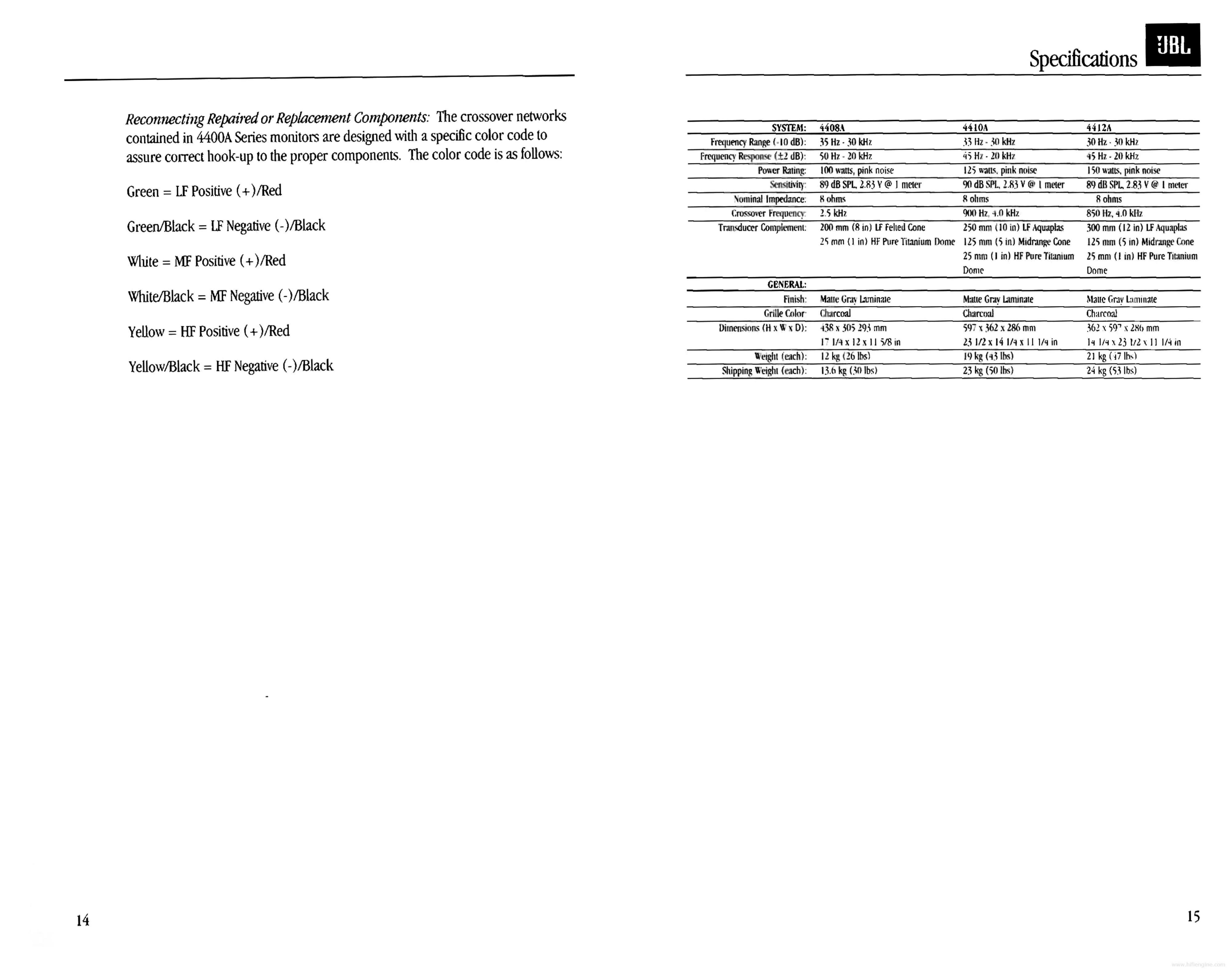

Specifications
Reconnecting Repaired or Replacement Components: The crossover networks
contained in 4400A Series monitors are designed with a specific color code to
assure correct hook-up to the proper components. The color code is as follows:
Green = LF Positive (+)/Red
Green/Black = LF Negative (-)/Black
White = MF Positive (+)/Red
White/Black = MF Negative (-)/Black
Yellow = HF Positive (+)/Red
Yellow/Black = HF Negative (-)/Black
15
SYSTEM:
vi 08 A
4410A 4412A
Frequency Range ( 10 dB): 35 Hz • 30 kHz
33 Hz - 30 kHz
30 Hz • 30 kHz
Frequency Respond (±2 dB):
50 Hz - 20 kHz
45 H/ - 20 kHz 45 Hz. - 20 kHz
Power Rating:
100 watts, pink noise
125 watts, pink noise
150 watts, pink noise
Sensitivity
89 dB SPL 2.83 Y @ 1 meter 90dBSPL, 2.83 v (d> i meter 89 dB SPL 2.83 V @ 1 meter
Nominal Impedance:
8 ohms
8 ohms 8 ohms
Crossover Frequency:
2.5 kHz
900 Hz. -4.0 kHz 850 Hz. 4.0 kHz
Transducer Complement:
200 mm (8 in) LF Felled Cone 250 mm (10 in) LFAquaplas
300 mm (12 in) LFAquaplas
2S mm (1 in) HF Pure Titanium Dome
125 mm (5 in) Mtdrange Cone 125 mm (5 in) Midrangc Cone
25 mm (1 in) HF Pure Titanium 25 mm (1 in) HF Pure Titanium
Dome
Dome
GENERAL:
Finish: Maiie Grav Laminate
•
Maue Gray Laminate
Maue Grav Laminate
*
Grille Color*
Charcoal
Charcoal Charcoal
Dimensions (H x ^ x D):
438 x 305 293 mm
597 \ 362 x 286 mm
362 \ 59"
1
x 286 mm
17 |/t* 12x11 5/8in 231/2x14 1/^x11 1/4 in
H l/4\23 t/2xll 1/4 in
U eight (each):
12 kg {26 lbs) 19 kg (43 Ihs)
21 kg (47 Ihs)
Shipping height (each):
I3.d kg (30 lbs)
23 kg (50 Ihs)
24 kg (53 lbs)
