Input
Signal
high
-
#3
low
-
#2
shield
-
#1
high
-
tip
low
-
ring
shield
-
sleeve

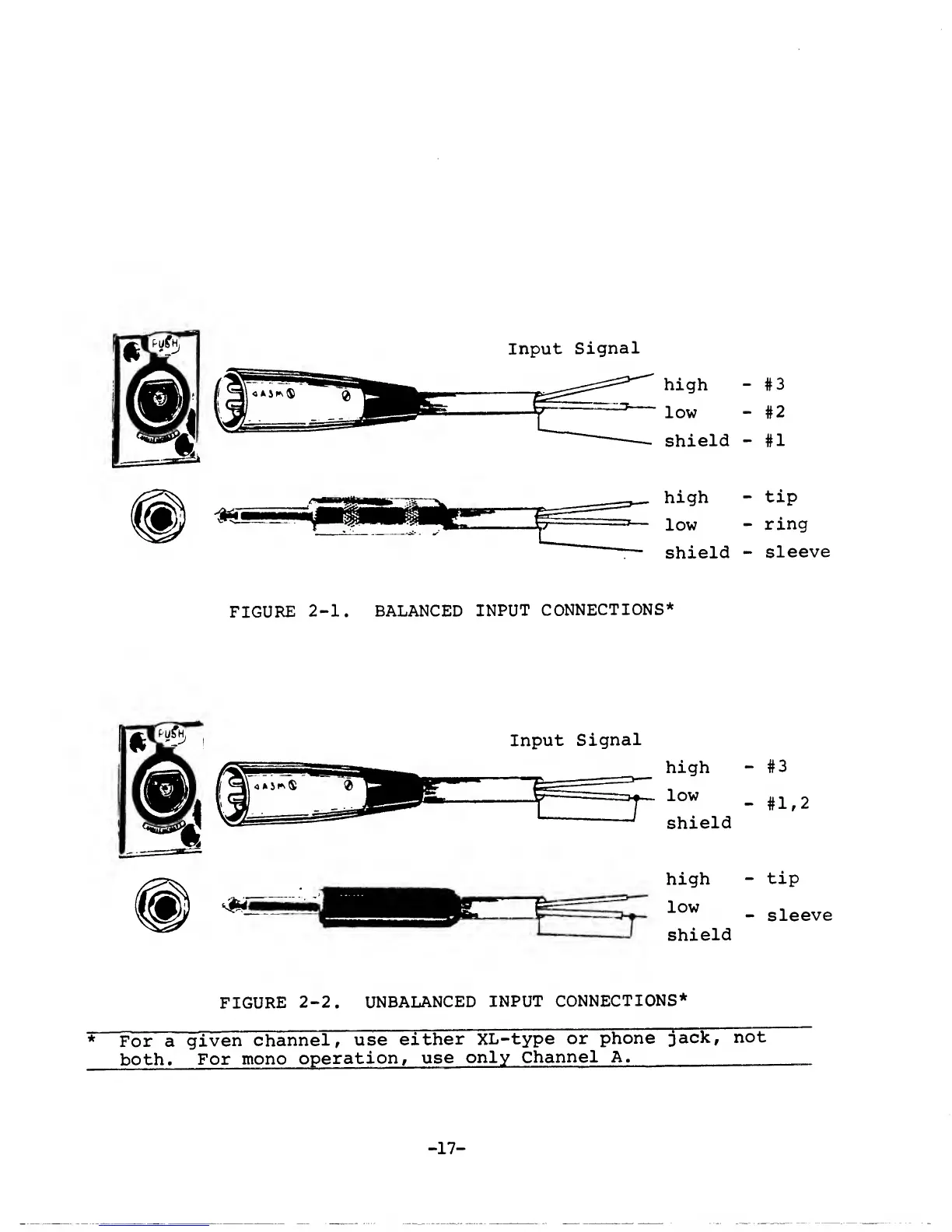

FIGURE
2-1.
BALANCED
INPUT
CONNECTIONS*
high
low
shield
#3
#
1,2
high
low
shield
tip
sleeve
FIGURE
2-2.
UNBALANCED
INPUT
CONNECTIONS*
For a
given
channel,
use
either
XL-type
or
phone
jack,
not
both.
For
mono
operation,
use
only
Channel
A.
