JBL Control 23 User Manual

: I
j_l
t
_
...
l
~
-T
_L
I
+ •

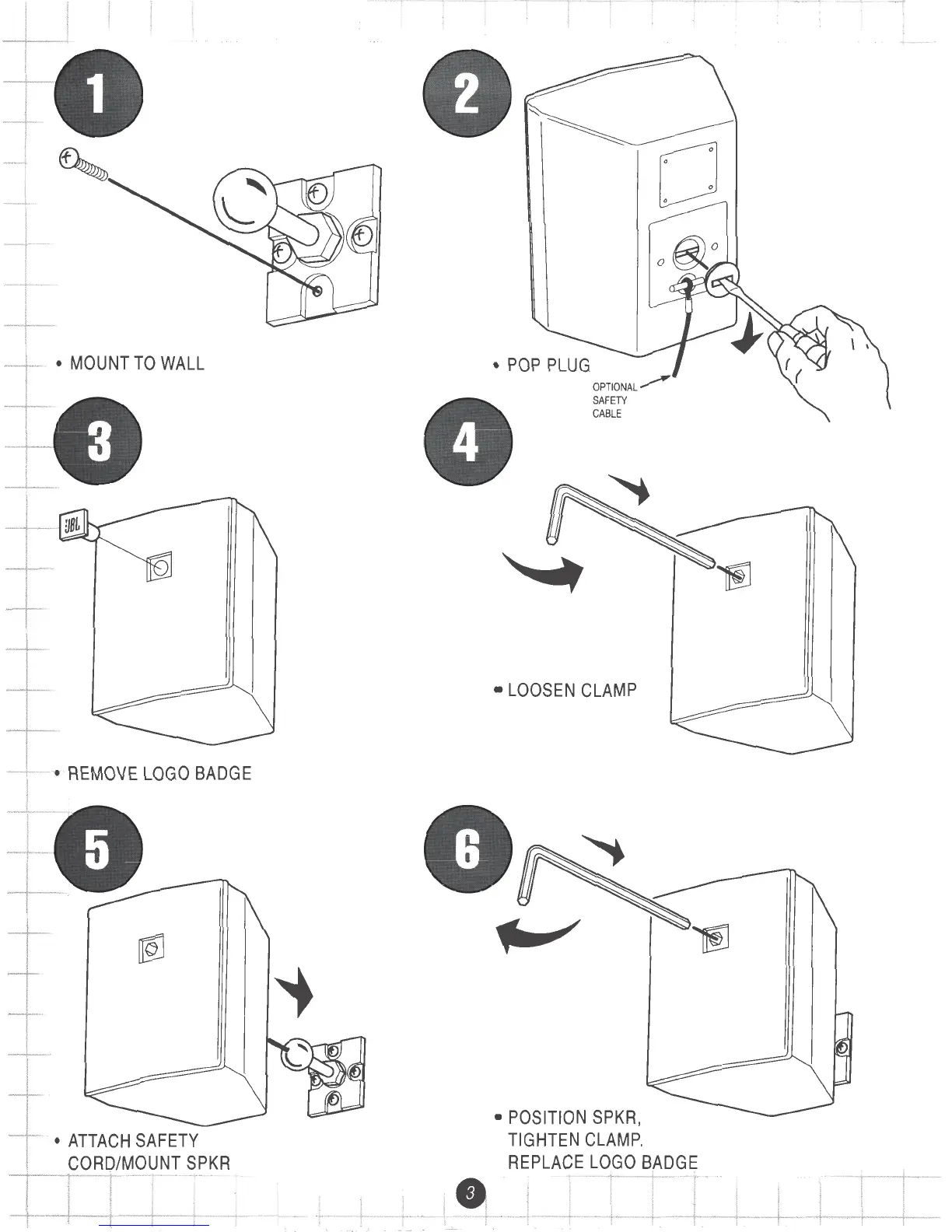

MOUNT
TO
WALL
-·
REMOVE
LOGO
BADGE
•
ATTACH
SAFETY
CORD/MOUNT
SPKR
-+-~---
r
---
·-.
tl
I
T-r+
.
,.
-
+
•
POP
PLUG
OPTIONAL~
SAFETY
CABLE
•
LOOSEN
CLAMP
8,
•
POSITION
SPKR,
TIGHTEN
CLAMP.
REPLACE
LOGO
BADGE
---
.
..,.......
I
!
.......
-!---·
I '
!
I
j
!
t
--~-.
__
_____......
____
--i-
----~-+---·L..
-
. 1
I
t
l I

JBL Control 23 Specifications

General

Impedance	8 ohms
Color	Black or white
Power Capacity	50 W Continuous Program Power; 25 W Continuous Pink Noise
Sensitivity	86 dB SPL, 1W @ 1m
HF Driver	19 mm (.75 in) titanium-laminate
Connectors	Spring terminals
Enclosure Material	High-impact polystyrene
Mounting	Wall
LF Driver	polypropylene coated paper
