APPLICATIONS – CS300.1
The CS subwoofer amplifier is a
single-channel amplifier. There are
two sets of terminals to make it easy
to connect multiple woofers. Either
set of (+/–) terminals may be used
when connecting woofers.
To the right are two application
diagrams to help plan your subwoofer
system installation.

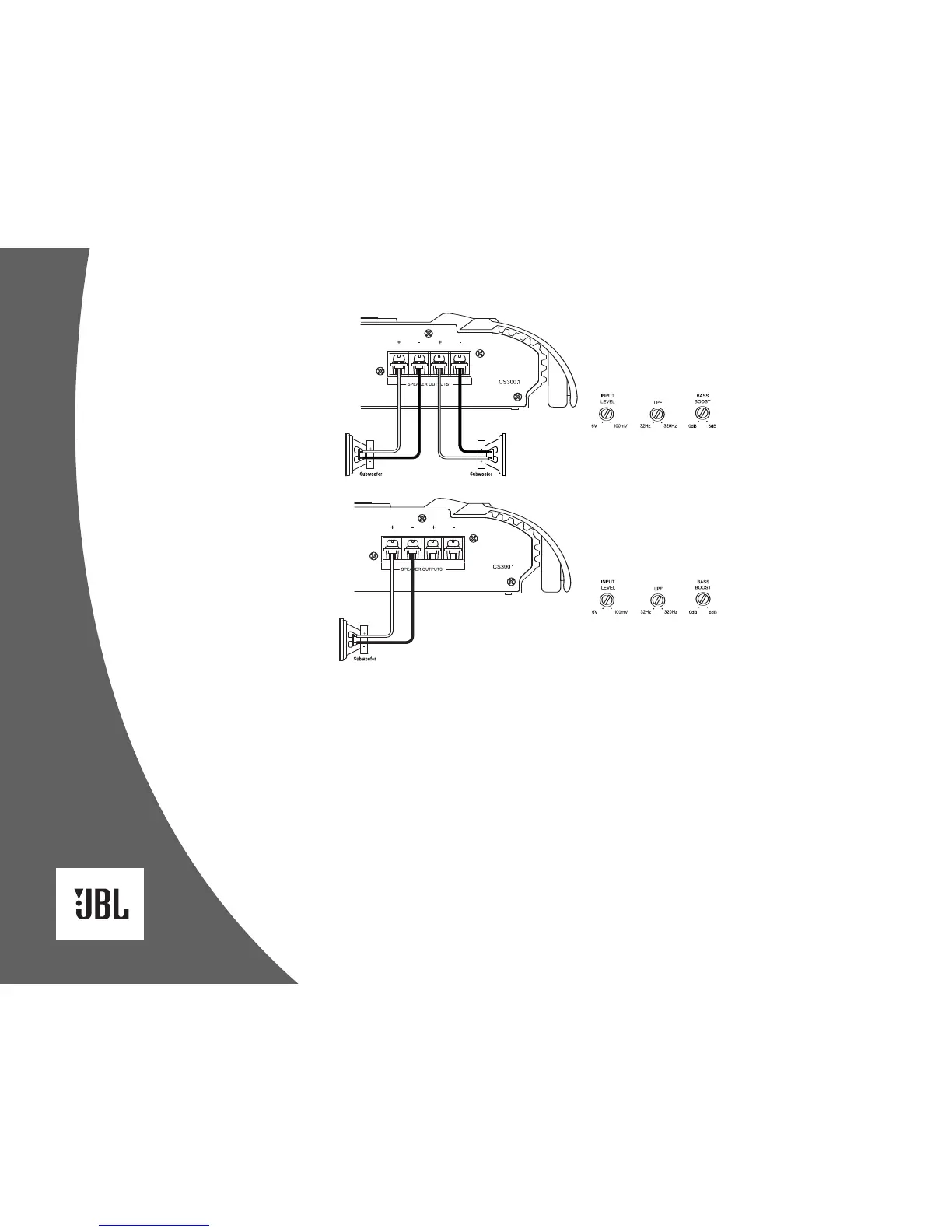

Figures 4 and 5
show how to configure the CS300.1
subwoofer amplifier.
NOTE: For simplicity, Figures 4 and 5
do not show power, remote and input
connections.
NOTE: Minimum speaker load is
2 ohms total.
Figure 4. CS subwoofer amplifier
with two woofers connected.
Figure 5. CS subwoofer amplifier
with one woofer connected.

Table of Contents

Other manuals for JBL CS300.1

Preview: Service Manual
Service Manual16 pages

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the JBL CS300.1 and is the answer not in the manual?

JBL CS300.1 Specifications

CS300.1

Power IconPower
power at 4 ohms200W RMS x 1 channel
power at 2 ohms300W RMS x 1 channel
dynamic power at 2 ohms460W
Audio Performance IconAudio Performance
signal-to-noise ratio100dBA
frequency response10Hz – 300Hz
effective damping factor6.395 at 4 ohms
Input and Output IconInput and Output
maximum input signal6V
maximum sensitivity100mV
output regulation–0.07dB at 4 ohms
Weight and Dimensions IconWeight and Dimensions
dimensions (L x W x H)12-11/16" x 10-1/4" x 2-3/16"
fuses20A x 2

CS60.4

Power IconPower
power at 4 ohms60W RMS x 4 channels
power at 2 ohms80W RMS x 4 channels
dynamic power at 2 ohms145W
Audio Performance IconAudio Performance
signal-to-noise ratio86dBA
frequency response10Hz – 27kHz
effective damping factor6.395 at 4 ohms
Input and Output IconInput and Output
maximum input signal6V
maximum sensitivity100mV
output regulation–0.03dB at 4 ohms
Weight and Dimensions IconWeight and Dimensions
dimensions (L x W x H)13-1/4" x 10-1/4" x 2-3/16"
fuses25A x 2

CS60.2

Power IconPower
power at 4 ohms60W RMS x 2 channels
power at 2 ohms80W RMS x 2 channels
dynamic power at 2 ohms160W
Audio Performance IconAudio Performance
signal-to-noise ratio86dBA
frequency response10Hz – 27kHz
effective damping factor6.395 at 4 ohms
Input and Output IconInput and Output
maximum input signal6V
maximum sensitivity100mV
output regulation–0.03dB at 4 ohms
Weight and Dimensions IconWeight and Dimensions
dimensions (L x W x H)8-7/8" x 10-1/4" x 2-1/4"
fuses25A x 1
