5

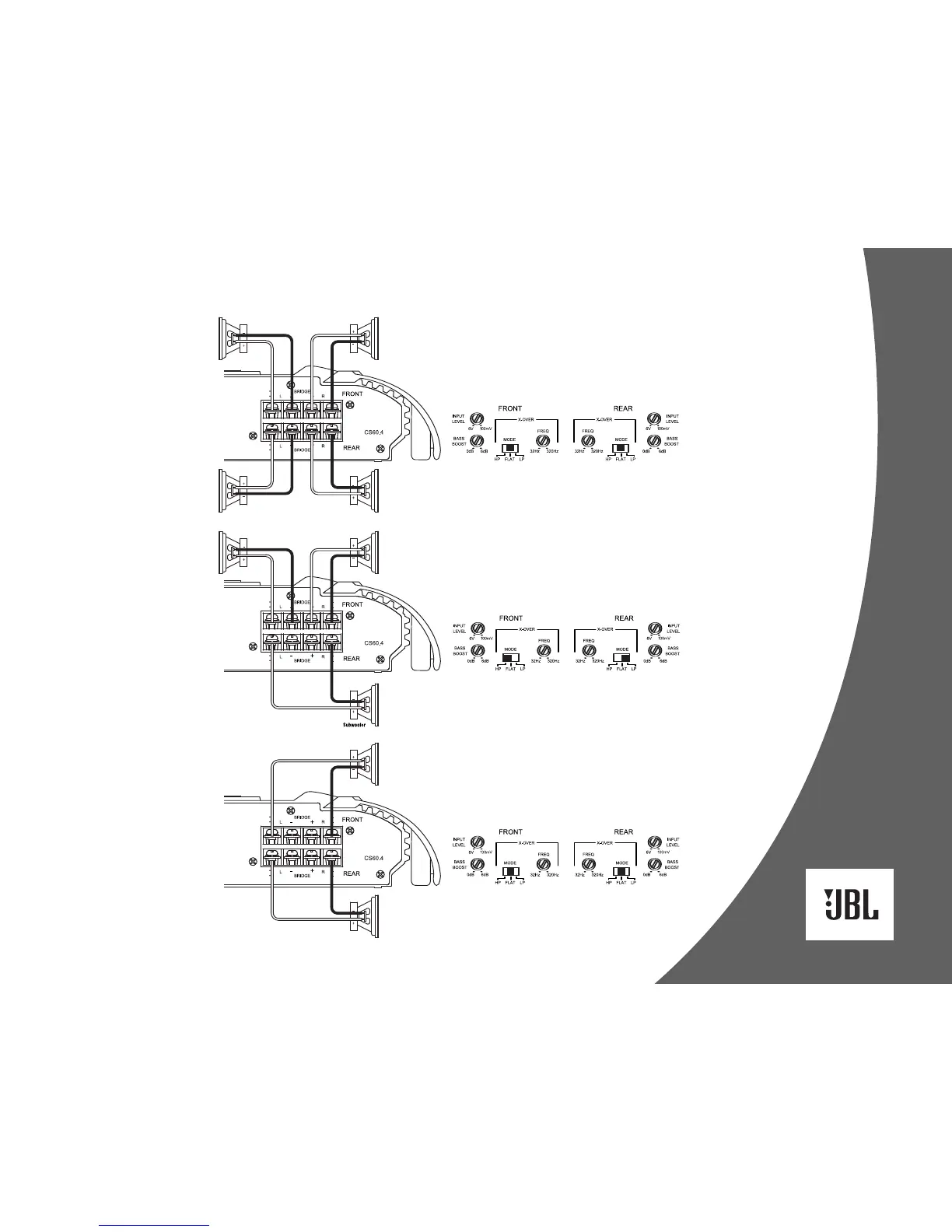

Figure 6. CS60.4 amplifier in 4-channel (stereo)
operation to drive front and rear full-range speakers.
Figure 7. CS60.4 is set up for 3-channel operation
to drive a set of full-range speakers and a subwoofer.
Front RightFront Left
Rear RightRear Left
Front RightFront Left
Figure 8. CS60.4 used in bridged 2-channel mode to
drive a set of components or subwoofers. Set crossovers
according to application.
APPLICATIONS – CS60.4
The CS60.4 can be set up for stereo
4-channel, 3-channel or bridged
2-channel operation, as shown in
Figures 6 through 8.
NOTE: For simplicity, Figures 6 through
8 do not show power, remote and input
connections.
NOTE: Minimum speaker impedance
for stereo operation is 2 ohms.
Minimum speaker impedance for
bridged operation is 4 ohms.
R
ear RightRear Left
Front RightFront Left
Front RightFront Left

Table of Contents

Other manuals for JBL CS300.1

Preview: Service Manual
Service Manual16 pages

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the JBL CS300.1 and is the answer not in the manual?

JBL CS300.1 Specifications

CS300.1

Power IconPower
power at 4 ohms200W RMS x 1 channel
power at 2 ohms300W RMS x 1 channel
dynamic power at 2 ohms460W
Audio Performance IconAudio Performance
signal-to-noise ratio100dBA
frequency response10Hz – 300Hz
effective damping factor6.395 at 4 ohms
Input and Output IconInput and Output
maximum input signal6V
maximum sensitivity100mV
output regulation–0.07dB at 4 ohms
Weight and Dimensions IconWeight and Dimensions
dimensions (L x W x H)12-11/16" x 10-1/4" x 2-3/16"
fuses20A x 2

CS60.4

Power IconPower
power at 4 ohms60W RMS x 4 channels
power at 2 ohms80W RMS x 4 channels
dynamic power at 2 ohms145W
Audio Performance IconAudio Performance
signal-to-noise ratio86dBA
frequency response10Hz – 27kHz
effective damping factor6.395 at 4 ohms
Input and Output IconInput and Output
maximum input signal6V
maximum sensitivity100mV
output regulation–0.03dB at 4 ohms
Weight and Dimensions IconWeight and Dimensions
dimensions (L x W x H)13-1/4" x 10-1/4" x 2-3/16"
fuses25A x 2

CS60.2

Power IconPower
power at 4 ohms60W RMS x 2 channels
power at 2 ohms80W RMS x 2 channels
dynamic power at 2 ohms160W
Audio Performance IconAudio Performance
signal-to-noise ratio86dBA
frequency response10Hz – 27kHz
effective damping factor6.395 at 4 ohms
Input and Output IconInput and Output
maximum input signal6V
maximum sensitivity100mV
output regulation–0.03dB at 4 ohms
Weight and Dimensions IconWeight and Dimensions
dimensions (L x W x H)8-7/8" x 10-1/4" x 2-1/4"
fuses25A x 1
