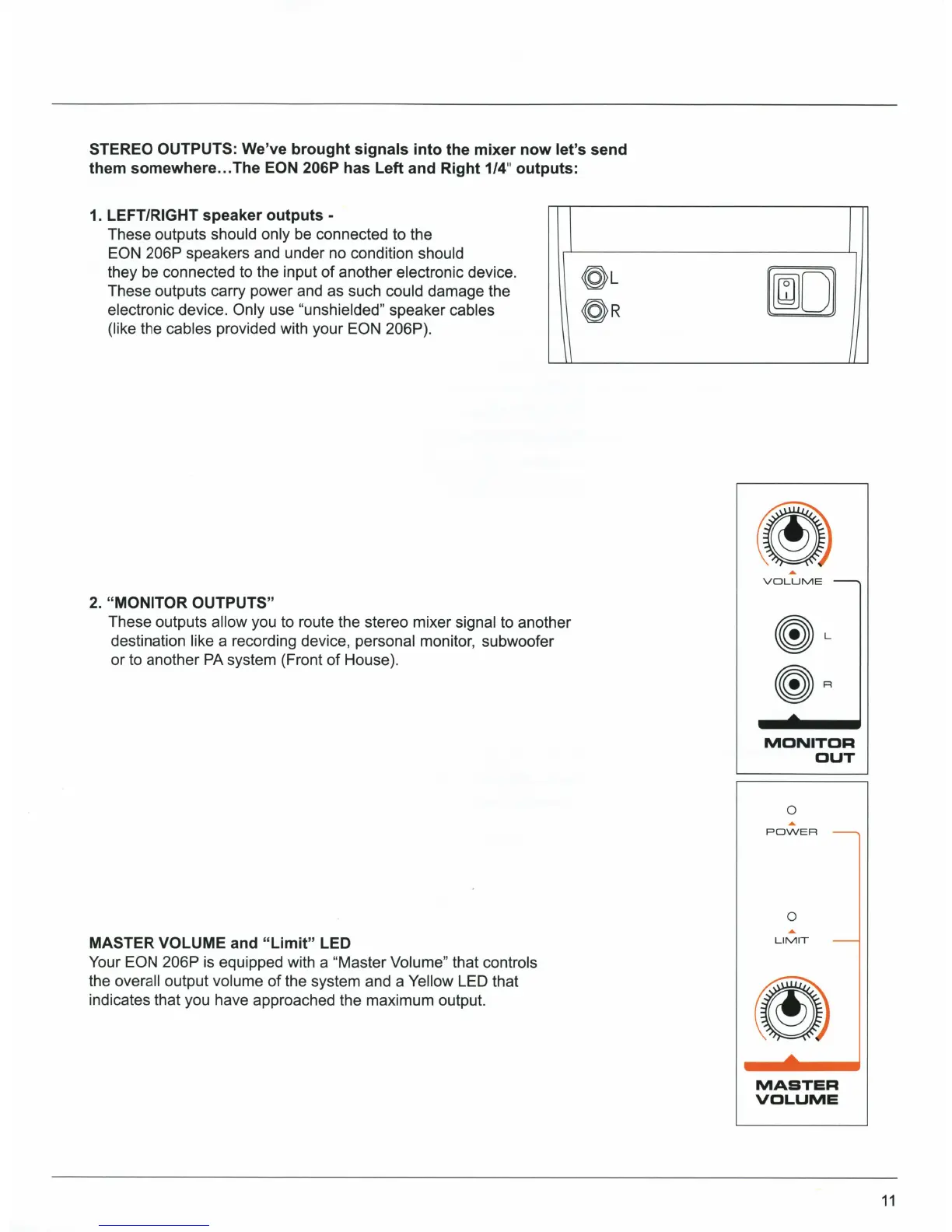

STEREO
OUTPUTS: We've brought signals
into the mixer now let's
send
them somewhere ... The
EON 206P
has Left and Right
1/4"
outputs:
1.
LEFT/RIGHT
speaker outputs -
These outputs
should only
be
connected to the
EON 206P speakers and under no condition
should
they be connected to the input of another
electronic
device.
These outputs carry power and as such could damage the
electronic
device.
Only use
"unshielded"
speaker cables
(like
the
cables
provided with your
EON
206P).
2.
"MONITOR OUTPUTS"
1\
These outputs
allow
you to route the stereo mixer
signal
to another
destination like a recording device,
personal
monitor, subwoofer
or to another
PA
system (Front of House).
MASTER VOLUME and "Limit"
LED
Your EON
206P is equipped with a
"Master Volume" that
controls
the overall output volume
of the system and a Yellow
LED that
indicates that you have approached the maximum output.
