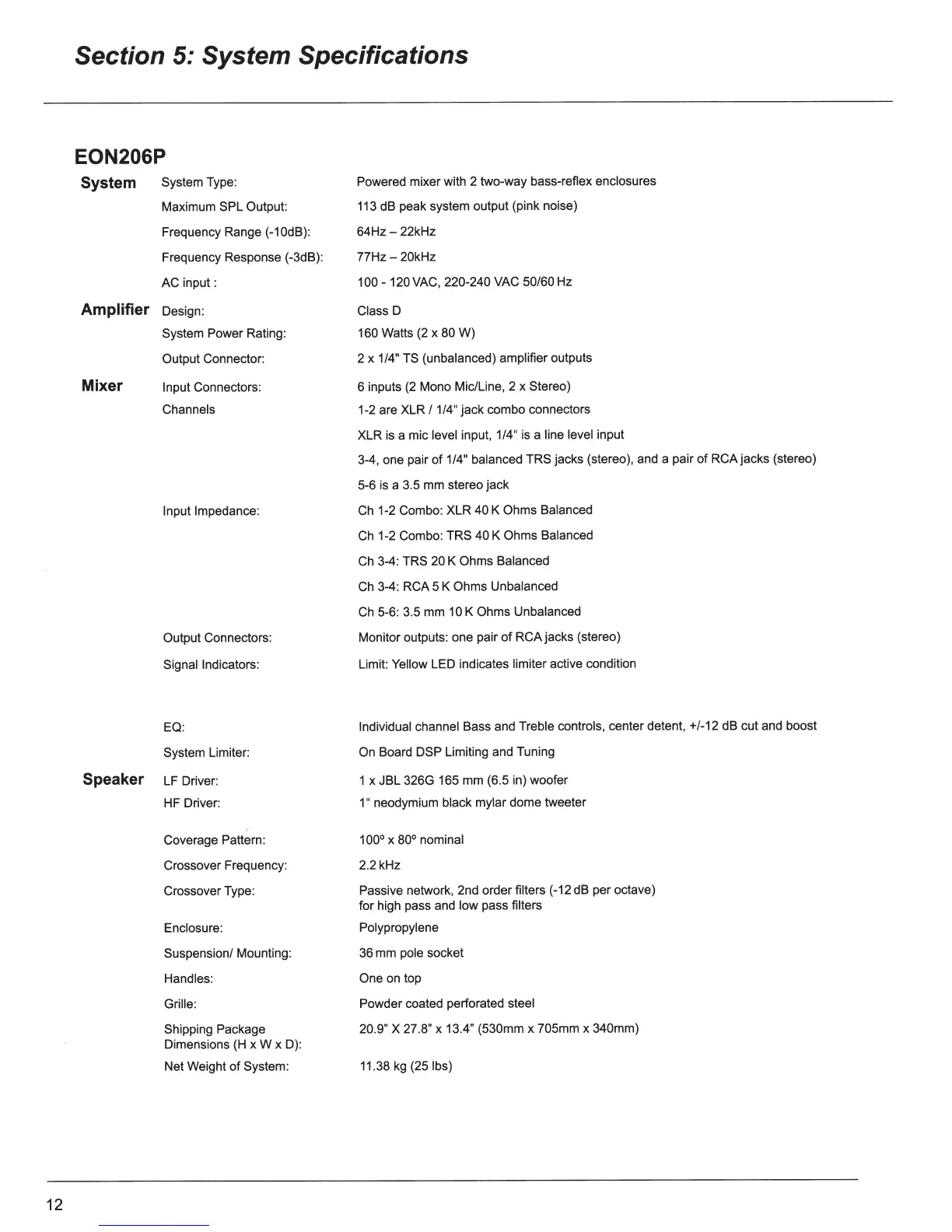

Section 5:
System Specifications
EON206P
System
System
Type:
Maximum
SPL
Output:
Frequency Range (-10dB):
Frequency Response (-3dB):
AC
input:
Amplifier
Design:
System
Power Rating:
Output Connector:
Mixer
Input
Connectors:
Channels
Input Impedance:
Output Connectors:
Signal Indicators:
EQ:
System
Limiter:
Speaker
LF Driver:
HF Driver:
Coverage Pattern:
Crossover Frequency:
Crossover Type:
Enclosure:
Suspension/ Mounting:
Handles:
Grille:
Shipping Package
Dimensions (H x
W x D):
Net Weight
of
System:
Powered mixer with 2 two-way
bass-reflex enclosures
113 dB peak system output (pink noise)
64Hz-
22kHz
77Hz-20kHz
100
-
120
VAC,
220-240
VAC
50/60
Hz
Class
D
160
Watts (2 x
80
W)
2
x
1/4" TS (unbalanced) amplifier outputs
6 inputs (2 Mono
Mic/line,
2 x
Stereo)
1-2 are XLR
I
1/4"
jack
combo connectors
XLR is a mic
level
input,
1/4" is a
line level
input
3-4, one pair
of
1/4" balanced TRS
jacks (stereo), and a pair
of
RCA jacks (stereo)
5-6 is a 3.5 mm stereo jack
Ch
1-2 Combo: XLR
40
K
Ohms Balanced
Ch
1-2 Combo:
TRS 40
K
Ohms Balanced
Ch
3-4:
TRS 20
K Ohms Balanced
Ch
3-4: RCA 5
K Ohms Unbalanced
Ch
5-6: 3.5 mm
10
K
Ohms Unbalanced
Monitor outputs: one pair
of
RCA
jacks (stereo)
Limit:
Yellow
LED indicates
limiter
active condition
Individual channel
Bass and Treble controls,
center detent, +/-12 dB cut and boost
On
Board DSP
Limiting and Tuning
1 x JBL 326G 165 mm (6.5 in) woofer
1"
neodymium
black mylar
dome
tweeter
100°
x
80° nominal
2.2 kHz
Passive network, 2nd order
filters
( -12 dB per octave)
for high pass and
low
pass
filters
Polypropylene
36 mm
pole
socket
One
on top
Powder coated perforated
steel
20
.9"
X 27.8" x
13.4" (530mm
x
705mm
x
340mm)
11.38 kg (
25
1bs)
