JBL EON510 - Page 3

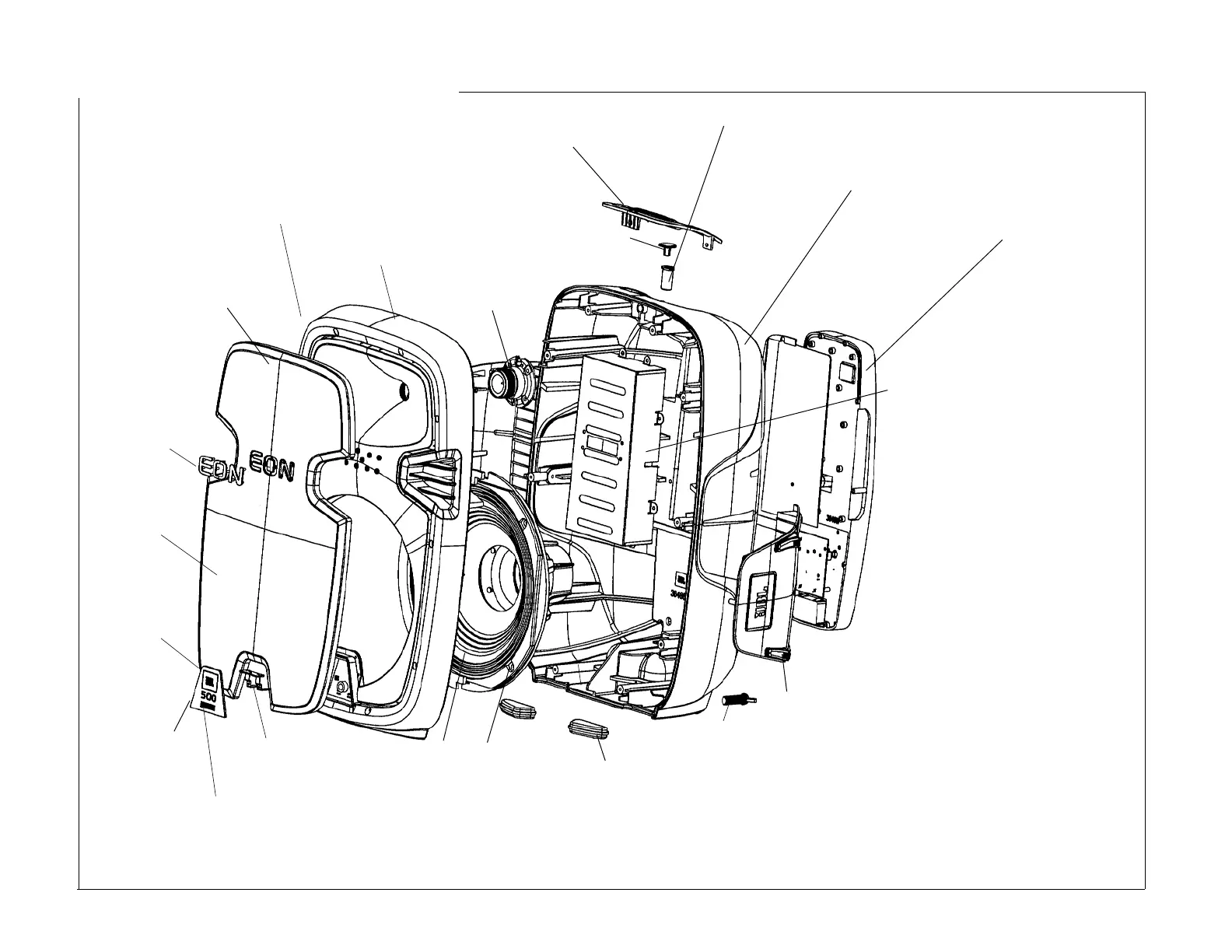

COMPONENT EXPLODED VIEW
JBL EON510/230
Screw
813-21300-10
M3.5X 10MM
RND,PH,CLR
ZINC,LCS
(Logo)
Rubber Foot (2)
364870-001
Driver, Low Freq.
261F
(364742-003X)
Cone Repl
C2R261
Dust Dome
31385-07
Screw (4)
804-01110-16
10-32 x 1
FIL,PH,BLK,ZINC,
LCS
Gasket, Woofer
(2)
365350-001
Thumbscrew
364983-001
Side Pocket (2)
364869-001
Screw (6)
814-01100-25
M4 x 25MM
FL,PH,CLR
ZINC, LCS
Amp Board
444970-001
Input Module
358358-001
A/C Inlet PCB
444285-001
Interface PCB
138927-1JBL
Ribbon Cable
141027-1JBL
Amplifier Gasket (2)
364892-001
Screw (10)
813-41300-15
M3 .5X 15MM
PAN,PH,CLR
ZINC,LCS
Wire Harness
364836-001
Heat sink
364881-001
Input Plate
364860-001
Logo Badge
364863-001
Bolt Cover, Badge
364862-001
Insulator Chassis
140493-1JBL
Silipad
140492-1JBL
Cover,Fly Bolt (2)
364805-001
Driver,High Freq.
2414H-1
(363858-001X)
Screw (12)
862-41410-10
6 x 5/8
PAN,PH,HIGHLO,
BLK ZINC,LCS
Screw (8)
365270-001
M4 x 65
Screw (2)
365270-002
M4-33mm
Upper Handle
364868-001
Screw (3)
814-01100-10
M4 x 10MM
FL,PH,CLR,ZINC,LCS
Fly Bolt (3)
364616-001
Nut (3)
838-00800-00
M14 REG,CLR
ZINC,RH
Washer (3)
848-00100-02
M14,REG,CLR ZINC
Enclosure
Assembly EON510
(Not Avilable for
Sale)
Gasket,Enclosure
364835-001
Insert
365433-001
M6 x 12MM
PPB Type
Screw (2)
3654446-001
M3 X 5MM
TREAD CUTTING
Amplifier Shield
365289-001
Screw (4)
814-41300-06
M4 X 6MM
PAN,PHILLIPS
CLEAR ZINC
JBL EON 510/230
Baffle/Grille Assembly
441957-001
EON Letters
365346-001
Grille
Assembly
365357-001
Logo Terminal
Plate
365433-001
Led Board
363395-001
Logo Assembly
364804-001
Please note: grille assembly
not available seperately)
