User’s Guide

Table of Contents

Other manuals for JBL EON 612

Preview: Quick Start Guide
Quick Start Guide9 pages

Questions and Answers

  • A
    Amanda CarrJul 26, 2025
    How to troubleshoot JBL Speaker that comes on but has no sound?
    • A
      Alicia ReynoldsJul 26, 2025
      If your JBL Speaker comes on but produces no sound, the issue might be with the signal source (mixer, instrument, etc.) not sending a signal, or faulty cables and connections. You can check VU meters on the source mixer, verify that the tape or CD is playing, and use headphones to confirm the instrument is sending an audio signal. Also, disconnect and re-seat signal cables, and replace any suspected cable with a known-good cable.
  • H
    Herbert SmithJul 30, 2025
    How to fix hum or buzz in JBL EON 612?
    • T
      Troy RodriguezJul 30, 2025
      If you're experiencing hum or buzz with your JBL Speakers, it could be due to several reasons. It may be caused by improper A/C grounding or ground loops. Try these steps: * 'Lift' the audio ground by using an XLR/F to XLR/M adapter on one end. * Re-route audio cables away from AC power and lighting cables. It also can be caused by an excessively long unbalanced cable run. To fix it: * Use the balanced outputs (if available) of your mixer or source equipment to drive your EON speakers. * Use a “DI” (direct injection) box to convert your unbalanced equipment output to a balanced output. Another reason is improper system gain structure, so reduce the INPUT level controls and increase the output level of your source devices.
  • J
    Jorge JohnsonAug 4, 2025
    What causes hum or buzz that changes with mixer levels in JBL EON 612 Speakers?
    • J
      joseph31Aug 4, 2025
      If you notice a hum or buzz that increases or decreases when the mixer level controls are moved with your JBL Speakers, it may be due to an improper A/C ground or faulty equipment connected to the mixer input, or a faulty cable between the source equipment and mixer. Disconnect or mute channels one at a time to isolate the problem. Substitute a known-good cable for the suspected faulty cable.
  • E
    Eric DanielsAug 7, 2025
    Why is my JBL EON 612 Speakers signal distorted and very loud?
    • B
      batesjustinAug 8, 2025
      If the signal from your JBL Speakers sounds distorted and very loud, and the PEAK light is frequently lit, it's likely due to an excessive input signal trying to exceed the speaker's capabilities. To resolve this: * Reduce the output level of the source. * Turn down the level controls on the speaker. * Consider using additional speakers.
  • A
    Angela JensenAug 12, 2025
    How to troubleshoot distorted sound at moderate volumes on JBL EON 612 Speakers?
    • J
      John SpenceAug 13, 2025
      If you are getting a distorted sound from your JBL Speakers even at moderate volumes, and the LIMIT light is not lit, the mixer or another source might be overdriven. In this case, adjust controls as needed, including input sensitivity (gain), channel faders, and master faders.
  • P
    Peter WheelerAug 16, 2025
    How to eliminate hiss in JBL EON 612 Speakers sound?
    • M
      mcdonaldkimberlyAug 16, 2025
      If there's a lot of hiss in the sound from your JBL Speakers, especially when the mixer controls are at very low settings, it might be due to an improper gain structure. First, make sure that the MIC/LINE switch is in the LINE (disengaged) position. Then, reduce the level settings at the speaker. Also, adjust controls as needed, including input sensitivity (gain), channel faders, and master faders.
  • M
    Monica RogersAug 20, 2025
    What to do if my JBL EON 612 have no sound with a microphone connected?
    • P
      Paul MejiaAug 20, 2025
      If you're experiencing no sound with a microphone connected directly to the MIC/LINE input of your JBL Speakers, the microphone may require phantom power. The EON does not supply phantom power. Switch to a dynamic microphone, use a battery powered microphone (if possible), or use an external phantom power supply for condenser type microphones.

Summary

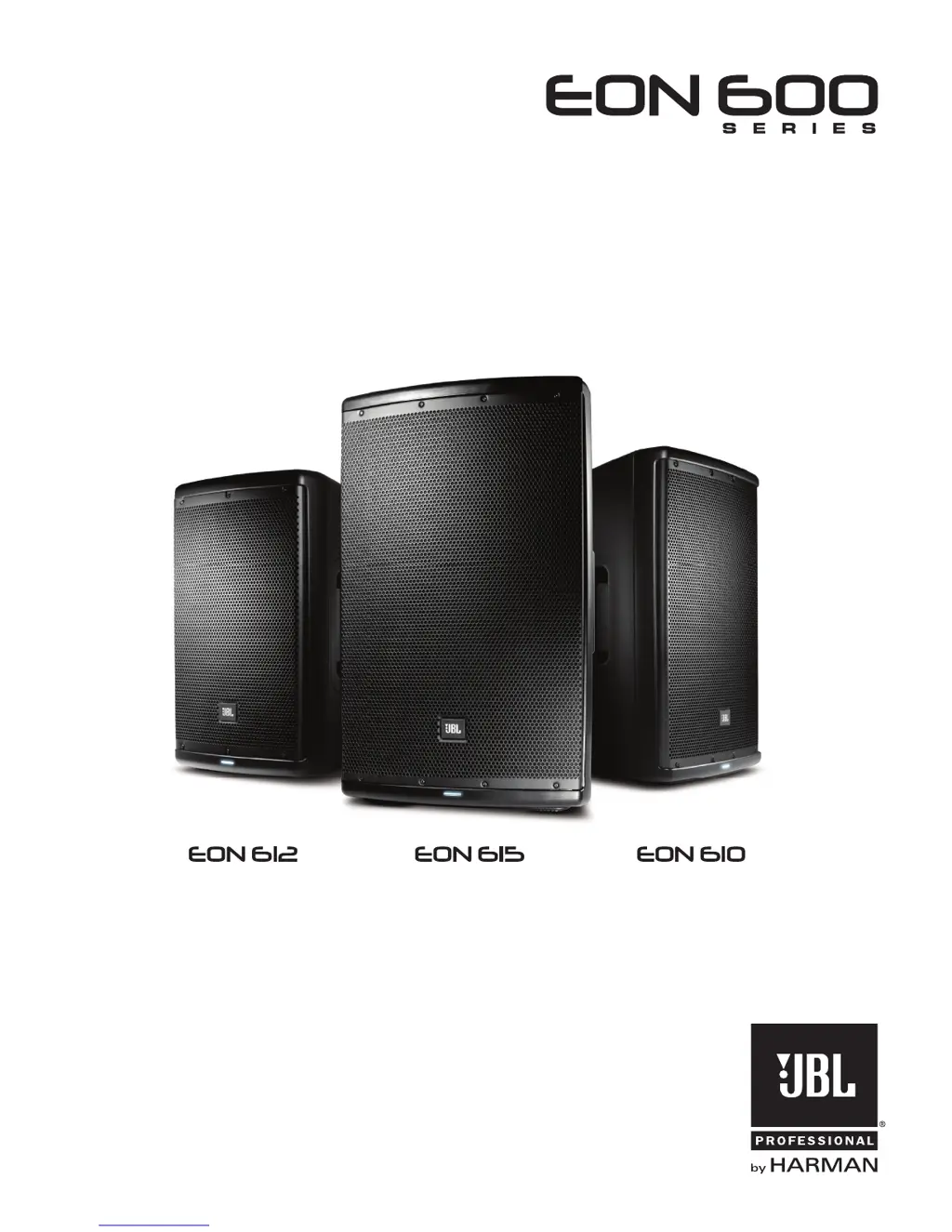

JBL EON 600 Series Users Guide

Safety Instructions

Declaration of Conformity

Quick Setup Guide

Packaging Contents

Lists the items included in the EON600 speaker system packaging.

Unboxing Procedure

Step-by-step instructions for safely removing the speaker from its box.

Configuration Options

Illustrates different ways to position the EON600 loudspeakers for use.

EON Family Overview

EON610 Specifications

Details on the 10-inch EON610 multipurpose self-powered speaker.

EON612 Specifications

Details on the 12-inch EON612 multipurpose self-powered speaker.

EON615 Specifications

Details on the 15-inch EON615 multipurpose self-powered speaker.

EON600 Series Technology

Highlights advanced waveguide technology, DSP EQ, and Bluetooth control.

EON Family Block Diagram

EON615 Specifications

System Specification

Details on system type, SPL, frequency range, and EQ settings.

Amplification Details

Information on amplifier design, power rating, and input specifications.

Speaker Specification

Specifications for the LF driver, HF driver, and coverage pattern.

Enclosure Dimensions

Details on material, mounting, handles, finish, and physical dimensions.

EON612 Specifications

System Specification

Details on system type, SPL, frequency range, and EQ settings.

Amplification Details

Information on amplifier design, power rating, and input specifications.

Speaker Specification

Specifications for the LF driver, HF driver, and coverage pattern.

Enclosure Dimensions

Details on material, mounting, handles, finish, and physical dimensions.

EON610 Specifications

System Specification

Details on system type, SPL, frequency range, and EQ settings.

Amplification Details

Information on amplifier design, power rating, and input specifications.

Speaker Specification

Specifications for the LF driver, HF driver, and coverage pattern.

Enclosure Dimensions

Details on material, mounting, handles, finish, and physical dimensions.

Purposeful Product Design

Portability Features

Highlights handles, hardware mounts, and indexed feet for easy transport.

Pole Mount & Locking Feet

Details on the pole mount socket and locking feet for stability.

Suspension Points

Information on integrated suspension points for flying the speaker.

Secure Stacking

Describes the design for secure stacking of speakers.

Monitor Position

Illustrates the speaker's slanted positions for stage monitoring.

Coverage Patterns

EON600 Family Coverage Comparison

Compares the coverage patterns of EON615, EON612, and EON610 speakers.

Image Control Waveguide

Explains how the Image Control Waveguide enhances high frequency detail.

Low Frequency Waveguide

Details the low frequency waveguide design for sound projection.

Bluetooth Integration

Bluetooth App Availability

Information on the JBL EON600 control app for iOS and Android.

Bluetooth Features

Details speaker discovery, EQ controls, and master volume via Bluetooth.

Back Panel Overview

Rear Panel Controls and Indicators

Identifies and describes major controls and indicators on the speaker's rear panel.

Input and Output Connectors

Details the XLR-1/4" combo inputs and XLR loop thru connector.

Power and Safety Information

Explains the power switch, AC input, fuse, and safety warnings.

Loudspeaker Placement and Suspension

Optimal Speaker Height

Guidance on raising speakers to ensure good sound for the entire audience.

Speaker Placement Relative to Microphones

Advice on positioning speakers to prevent feedback from microphones.

Speaker Placement Away from Turntables

Recommendations for avoiding low-frequency feedback from turntables.

Using Multiple Speakers in Large Spaces

Tips for achieving better sound in large or reverberant environments.

Speaker Positioning for PA and Monitoring

Describes upright PA positioning and slanted monitor positions.

Application Examples

Small PA with Thru Function

Example setup for a small PA using both inputs and the thru function.

Troubleshooting

Warranty Information

Warranty Coverage and Exclusions

Details who is protected, what is covered, and what is excluded by the JBL warranty.

Cost of Repairs

Explains who pays for labor and material expenses for repairs.

Obtaining Warranty Service

Instructions on how to get service for a JBL product under warranty.

Warranty Limitations and Disclaimers

Covers limitations on implied warranties and exclusion of certain damages.

Contact Information

Mailing Address

Provides the official mailing address for JBL Professional.

Shipping Address

Provides the official shipping address for JBL Professional.

Customer Service Details

Information on customer service hours, phone number, and website.

Official Website

Provides the official website for JBL Professional.

International Contacts

Information on contacting international distributors for support.

JBL EON 612 Specifications

General IconGeneral
Maximum SPL126 dB
Coverage Pattern100° x 60°
System Power Rating1000 W Peak
Crossover Frequency1.8 kHz
EnclosurePolypropylene
TypePowered Speaker
LF Driver12 inch
HF Driver1 inch
Frequency Range48 Hz - 20 kHz
Power Rating1000W
Input Connectors2 x XLR-1/4" combo
Output ConnectorsXLR
BluetoothYes
Input Impedance20k Ohms (balanced)
Suspension / Mounting35mm pole socket
LF Driver Details12" Differential Drive woofer
